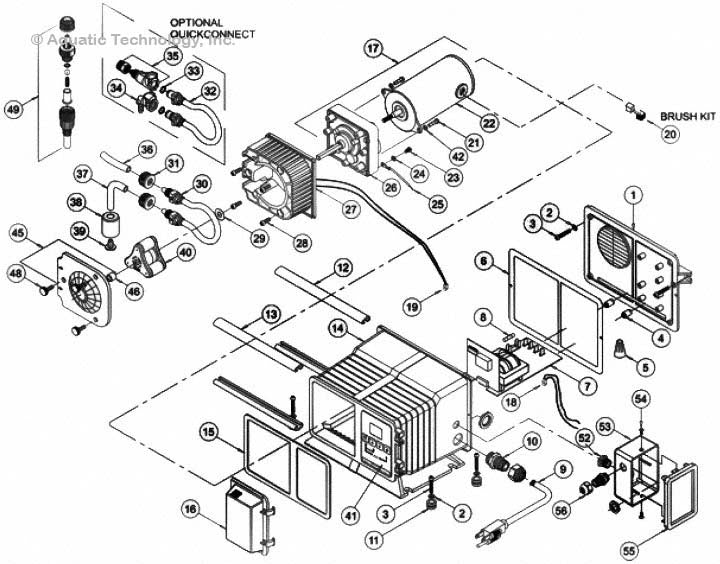

Blue-White A-100NV Series Peristaltic Pump Diagram | 21 parts

Blue-White A-100NV Series Peristaltic Pump

Frequently Purchased

A-014N-6A
 		Injection Fitting Valve Heavy-Duty 3/8 Inch - A-014N-6A
1372 in stock
 $79.50
C-330-6
 		Tube Nut - 3/8 Inch O.D. Tubing - C-330-6
14 in stock
 $6.08
71000-159
 		Roller Assembly - Complete - 71000-159
60 in stock
 $126.11
C-342-6
 		Strainer Tube .25 ID PP - C-342-6
Ships from the manufacturer
 $8.19
A-008-2
 		Gearbox Assembly 30 RPM - A-008-2
Allow 10-14 Days to Ship
 $259.38
Any key items not listed on the above schematic are no longer available.
A-014N-6A
49 Injection Fitting Valve Heavy-Duty 3/8 Inch
1372 in stock
Item #: A-014N-6A
$79.50
C-330-6
31 Tube Nut - 3/8 Inch O.D. Tubing
14 in stock
Item #: C-330-6
$6.08
71000-159
40 Roller Assembly - Complete
60 in stock
Item #: 71000-159
$126.11
C-342-6
39 Strainer Tube .25 ID PP
Ships from the manufacturer
Item #: C-342-6
$8.19
More Info
A-008-2
26 Gearbox Assembly 30 RPM
Allow 10-14 Days to Ship
Item #: A-008-2
$259.38
More Info
A-008-3
26 Gearbox Assembly 45 RPM
Allow 10-14 Days to Ship
Item #: A-008-3
$273.08
More Info
A-008-4
26 Gear Box Assembly 60 RPM
Allow 10-14 Days to Ship
Item #: A-008-4
$267.11
More Info
71000-489
1 Panel Rear A-100N DC with Gasket
Ships from the manufacturer
Item #: 71000-489
$99.64
More Info
A-023N-V-115
7 A-100NV Speed Control 115V Kit
Ships from the manufacturer
Item #: A-023N-V-115
$708.50
More Info
71000-176
9 Cord A100N 220V Euro with Terms
Ships from the manufacturer
Item #: 71000-176
$83.51
More Info
71000-177
9 Cord A100N 230V with Terms
Ships from the manufacturer
Item #: 71000-177
$70.38
More Info
C-1814N-4
20 Kit Brush 24Vdc Hd Motor
Ships from the manufacturer
Item #: C-1814N-4
$30.55
More Info
A-008-1
26 Gearbox Assembly 14 RPM
Allow 10-14 Days to Ship
Item #: A-008-1
$279.71
More Info
71000-488
27 A-100N Pump Head Cover With TFD Sensors
Allow 10-14 Days to Ship
Item #: 71000-488
$162.78
More Info
A-031
29 A-100N Pump Head Spacer
Allow 10-14 Days to Ship
Item #: A-031
$3.02
More Info
C-335-6
36 Tubing Outlet .37 O.D. x 5 Feet Poly
10 in stock
Item #: C-335-6
$12.03
C-334-6
37 Tubing Inlet .37 O.D. x 5 Feet PVC
3 in stock
Item #: C-334-6
$15.69
C-346
38 Ceramic Foot Valve Weight
283 in stock
Item #: C-346
$15.61
71000-350
40 Roller Assembly for Tube No. 7 (Black Rollers)
58 in stock
Item #: 71000-350
$126.35
90012-245
41 Label A-100N Digital VS
Ships from the manufacturer
Item #: 90012-245
$135.19
More Info
90011-160
48 Screw 8-32 x .62 - Pump Head Cover
14 in stock
Item #: 90011-160
$7.94
