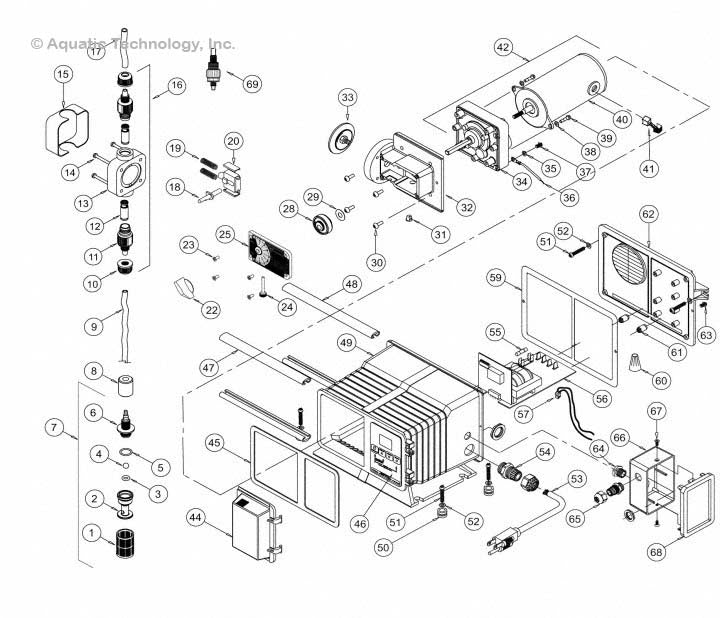

Blue-White C-1100V Series Diaphragm Pump Diagram | 28 parts

Blue-White C-1100V Series Diaphragm Pump

Frequently Purchased

	Injection Fitting Valve Heavy-Duty 3/8 Inch - A-014N-6A 475 in stock	$81.26
	Tube Nut - 3/8 Inch O.D. Tubing - C-330-6 29 in stock	$6.28
	Footvalve Foot Strainer for Model A1N30A-7T - C-340A 138 in stock	$68.51
	EP Foot Valve O-Ring - 2-108E Ships from the manufacturer	$6.22
	Foot Valve EP PVDF Ceramic Ball - C-340E Ships from the manufacturer	$71.23

Any key items not listed on the above schematic are no longer available.

Sort Products:
Key
Popularity

A-014N-6A

69 Injection Fitting Valve Heavy-Duty 3/8 Inch

475 in stock

Item #: A-014N-6A

$81.26

C-330-6

10 Tube Nut - 3/8 Inch O.D. Tubing

29 in stock

Item #: C-330-6

$6.28

C-340A

7 Footvalve Foot Strainer for Model A1N30A-7T

138 in stock

Item #: C-340A

$68.51

2-108E

3 EP Foot Valve O-Ring

Ships from the manufacturer

Item #: 2-108E

$6.22

C-340E

7 Foot Valve EP PVDF Ceramic Ball

Ships from the manufacturer

Item #: C-340E

$71.23

C-346

8 Ceramic Foot Valve Weight

151 in stock

Item #: C-346

$16.14

C-334-6

9 Tubing Inlet .37 O.D. x 5 Feet PVC

3 in stock

Item #: C-334-6

$16.23

C-535

13 C-1500N Pump Head

Ships from the manufacturer

Item #: C-535

$79.75

C-504HD

14 Screw 10-32 x 1.25 Pan Phillip Stainless Steel

Ships from the manufacturer

Item #: C-504HD

$4.67

C-535FC

15 C-1100 Pump Head Cover - Heavy-Duty

Ships from the manufacturer

Item #: C-535FC

$51.81

C-535A6-6

16 C-1500N Pump Head With Cover - Viton

Ships from the manufacturer

Item #: C-535A6-6

$173.72

C-535A6-6E

16 C-1500N Pump Head - EP

Ships from the manufacturer

Item #: C-535A6-6E

$169.47

C-334-6-10

17 Tube Suction 3/8 X 10 Feet

8 in stock

Item #: C-334-6-10

$34.04

C-1514N

19 Spring Return Stirrup

Ships from the manufacturer

Item #: C-1514N

$12.96

C-1502

22 Knob Dial C-1500

Ships from the manufacturer

Item #: C-1502

$18.77

C-1519N

24 Screw 6-32 X 1.125 Inch Sur Loc Ss

Ships from the manufacturer

Item #: C-1519N

$10.78

A-031

29 A-100N Pump Head Spacer

Allow 10-14 Days to Ship

Item #: A-031

$3.11

C-624N

30 Screw 10-32 x .50 Phillips Pan - Black

Ships from the manufacturer

Item #: C-624N

$4.67

C-1819VSG-24

40 Motor 24V DC 2.85 Amp

Ships from the manufacturer

Item #: C-1819VSG-24

$557.15

C-1814N-4

41 Kit Brush 24Vdc Hd Motor

Ships from the manufacturer

Item #: C-1814N-4

$40.27

90012-245

46 Label A-100N Digital VS

Ships from the manufacturer

Item #: 90012-245

$136.30

71000-177

53 Cord A100N 230V with Terms

Ships from the manufacturer

Item #: 71000-177

$71.12

A-033N

54 Cord Inlet Bushing

Allow 10-14 Days to Ship

Item #: A-033N

$36.20

A-023N-V-115

56 A-100NV Speed Control 115V Kit

Ships from the manufacturer

Item #: A-023N-V-115

$858.43

71000-489

62 Panel Rear A-100N DC with Gasket

Ships from the manufacturer

Item #: 71000-489

$100.75

C-1524

63 Screw 6-32 X .37 Swag Form

Ships from the manufacturer

Item #: C-1524

$2.53

C-395N-6A

69 Injection Valve S/A Heavy-Duty 37T Aflas 6 PSI PP

25 in stock

Item #: C-395N-6A

$84.28

C-385C

4 Ceramic Foot Valve Ball

Allow 10-14 Days to Ship

Item #: C-385C

$14.38
