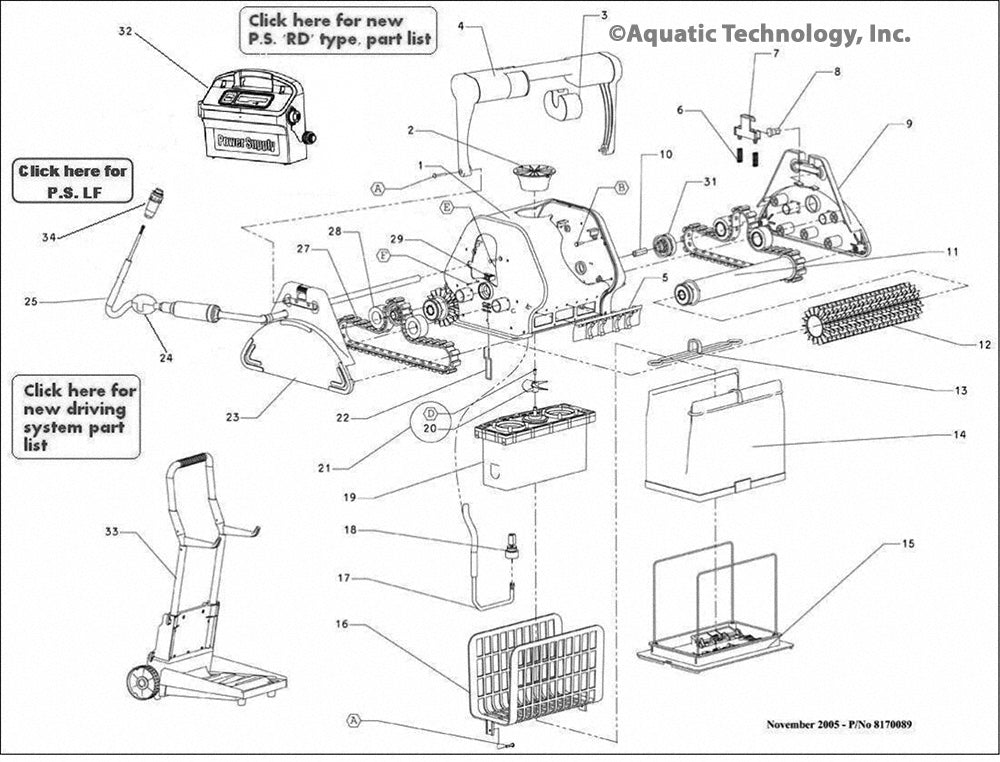

Dolphin 3001 Diagnostic 2012 Pool Cleaner Parts Diagram

Dolphin 3001 Diagnostic 2012 Pool Cleaner Parts

Frequently Purchased

6101611-R4
 		Wonder Climbing Brush Ring - Pack of 4 - 6101611-R4
16 in stock
 $58.75
9995269-R1
 		Dolphin Impeller With Screw - Yellow - 9995269-R1
6 in stock
 $20.13
3884997-R6
 		Dolphin Guide Wheels With 2 Pulley Gears - 4 Pack - 3884997-R6
154 in stock
 $54.99
9985006-R2
 		Dolphin Timing Tracks - Gray - Pack of 2 - 9985006-R2
190 in stock
 $59.96
99960081
 		Dolphin Large Cable Float - Blue - 99960081
48 in stock
 $14.60
Any key items not listed on the above schematic are no longer available.
6101611-R4
12(c) Wonder Climbing Brush Ring - Pack of 4
16 in stock
Item #: 6101611-R4
$58.75
9995269-R1
WP(10) Dolphin Impeller With Screw - Yellow
6 in stock
Item #: 9995269-R1
$20.13
3884997-R6
28(b) Dolphin Guide Wheels With 2 Pulley Gears - 4 Pack
154 in stock
Item #: 3884997-R6
$54.99
9985006-R2
NDS(05A) Dolphin Timing Tracks - Gray - Pack of 2
190 in stock
Item #: 9985006-R2
$59.96
99960081
24 Dolphin Large Cable Float - Blue
48 in stock
Item #: 99960081
$14.60
9995430-R1
WP(07) Dolphin 2x2/3001 Ultra-Fine Filter Bag - 50 Microns
10 in stock
Item #: 9995430-R1
$54.99
3884073-ASSY
NDS(01) Diagnostic Basic Wheel Bearing
29 in stock
Item #: 3884073-ASSY
$22.99
9995550
15 Advantge/Wave Bottom Lid Replacement Assembly and Support (2005)
17 in stock
Item #: 9995550
$52.11
9991279
18 Dolphin Advantage Retrofit Cable Connector - 3-Pin
1 in stock
Item #: 9991279
$13.21
9981430-R2
13 Dolphin Filter Bag Clips - Pack of 2
Allow 14-21 Days to Ship
Item #: 9981430-R2
$14.34
More Info
3883645
NDS(04) Dolphin Drive Pulley TT
9 in stock
Item #: 3883645
$34.96
9985280
5 Diagnostic Non Return Flap - Gray
7 in stock
Item #: 9985280
$8.03
9985007-R2
NSD(05B) Dolphin Timing Track - Yellow - Pack of 2
11 in stock
Item #: 9985007-R2
$49.99
5000009
34 Dolphin Amphenol Plug
5 in stock
Item #: 5000009
$36.58
3885000
NDS(03) Diagnostic Wheel Bearing Stopper Ring
7 in stock
Item #: 3885000
$2.40
3865005
10 Dolphin D-Type Shaft Hexagon Adaptor
12 in stock
Item #: 3865005
$9.00
9995070
2 Advantage Impeller Tube - Yellow
4 in stock
Item #: 9995070
$10.92
6203703
16 Dolphin Cleaner Filter Screen
1 in stock
Item #: 6203703
$7.19
9985007
NSD(05B) Dolphin Timing Track - Yellow
Allow 14-21 Days to Ship
Item #: 9985007
$49.99
More Info
9985050
27 3001/2002 Drive Track - Yellow
2 in stock
Item #: 9985050
$52.22
9995431-ASSY
14(a) Dynamic/Diagnostic Course Filter Bag
3 in stock
Item #: 9995431-ASSY
$69.99
3884997-R3
28(a) Guide Wheels With 1 Pulley Gear - 2 Pack
6 in stock
Item #: 3884997-R3
$29.99
9985060
7 Advantage Handle Latch - Yellow
Allow 14-21 Days to Ship
Item #: 9985060
$6.14
More Info
3917031
6 Dolphin Diagnostic Handle Clip Spring
8 in stock
Item #: 3917031
$2.40
9985065
8 Dolphin Handle Arm Slide
4 in stock
Item #: 9985065
$6.14
9991440-ASSY
14(c) Dolphin Disposable Filter Bags - Pack of 5
2 in stock
Item #: 9991440-ASSY
$67.36
6101603
12(a) 3001/2x2 PVC Brush - Blue
3 in stock
Item #: 6101603
$21.55
9995670-US-ASSY
32 Power Supply Diagnostic USA 115V - Basic On/Off
Allow 14-21 Days to Ship
Item #: 9995670-US-ASSY
$199.99
More Info
99954308-R1
WP(06) Dolphin 2x2/3001 Fine Filter Bag - 70 Microns
Allow 14-21 Days to Ship
Item #: 99954308-R1
$57.49
More Info
3965030
22 Dolphin Wire Clip
Allow 14-21 Days to Ship
Item #: 3965030
$4.46
More Info
9995741-ASSY
3 Advantage/ProX2 Handle Float - Yellow
Allow 14-21 Days to Ship
Item #: 9995741-ASSY
$39.56
More Info
3884076
31 Dolphin Flat Shaft Pulley
Allow 14-21 Days to Ship
Item #: 3884076
$19.69
More Info
9995707
4 Dolphin Heavy-Duty Handle Assembly - Black/Blue
Allow 14-21 Days to Ship
Item #: 9995707
$58.94
More Info
3966012
15-1 Dolphin Filter Bag Support
Allow 14-21 Days to Ship
Item #: 3966012
$8.23
More Info
9985084
9 Heavy-Duty/3001 Side Panel - Blue
Allow 14-21 Days to Ship
Item #: 9985084
$39.56
More Info
6101610
12(d) Dolphin Diagnostic Wonder Brush
Allow 14-21 Days to Ship
Item #: 6101610
$157.88
More Info
6101911
NDS(02) Dolphin Wheel Tube for Diagnostic Basic Cleaners
Allow 14-21 Days to Ship
Item #: 6101911
$10.02
More Info
9995053
23 3001/Heavy-Duty Side Panel - Blue
Allow 14-21 Days to Ship
Item #: 9995053
$31.65
More Info
9993199
NDS-OPT1 Advantage Diagnostic Drive Kit
Allow 14-21 Days to Ship
Item #: 9993199
$175.14
More Info
6101660-R2
12(b) Diagnostic 2002 Climbing Brushes - Blue - Pack of 2
Allow 14-21 Days to Ship
Item #: 6101660-R2
$55.04
More Info
3870010
1-2 Dolphin 2x2 OC Strengthener - Stainless Steel
Allow 14-21 Days to Ship
Item #: 3870010
$29.67
More Info
9991440-R2
WP(08) Dolphin 3001/2x2 Disposable Small Filter Bags - Pack of 2
Allow 14-21 Days to Ship
Item #: 9991440-R2
$61.12
More Info
9995064
29 3001/Pro X Cable Stopper Assembly
Allow 14-21 Days to Ship
Item #: 9995064
$2.45
More Info
3967120
30 Advantage/3001 Floating Cable Clamp 11-13
Allow 14-21 Days to Ship
Item #: 3967120
$2.45
More Info
