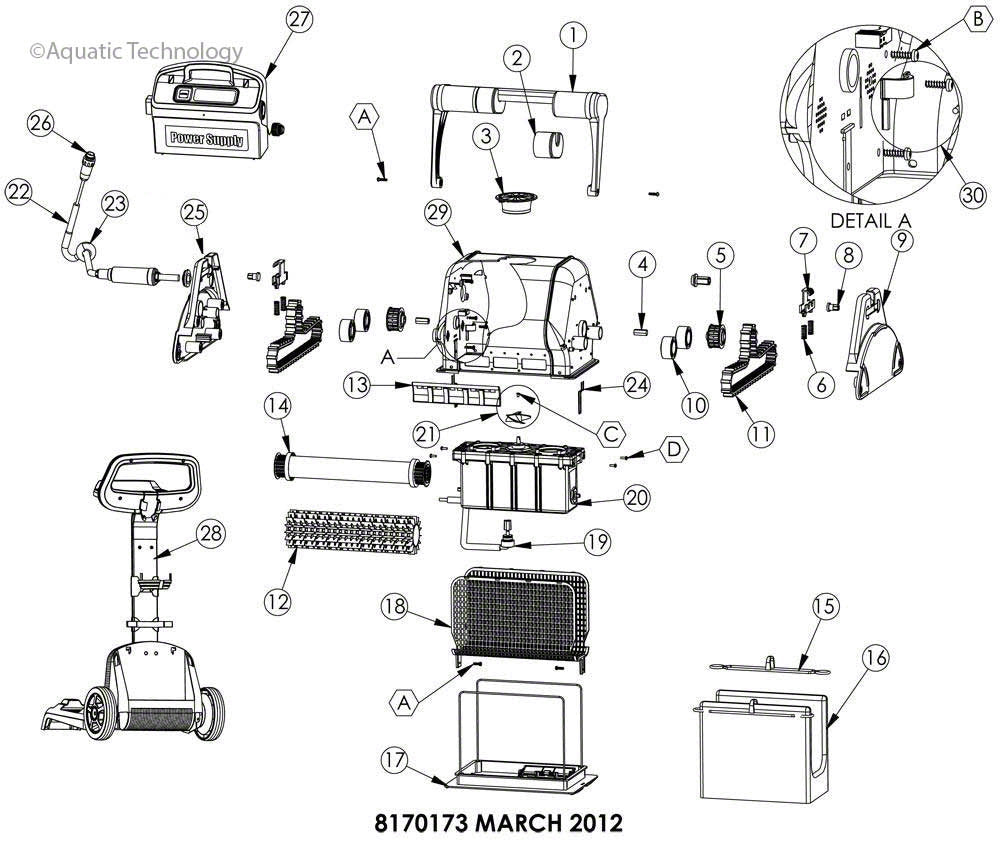

Dolphin 3001 Diagnostic 2013 Pool Cleaner Parts Diagram | 40 parts

Frequently Purchased

	Wonder Climbing Brush Ring - Pack of 4 - 6101611-R4 Extended Manufacturer Lead Time	$61.68
	Dolphin Impeller With Screw - Yellow - 9995269-R1 7 in stock	$19.98
	Dolphin Guide Wheels With 2 Pulley Gears - 4 Pack - 3884997-R6 78 in stock	$55.16
	Dolphin Small Cable Float Assembly - Blue - 9995090 Extended Manufacturer Lead Time	$14.49
	Dolphin 2x2/3001 Ultra-Fine Filter Bag - 50 Microns - 9995430-R1 20 in stock	$54.99

Any key items not listed on the above schematic are no longer available.

Sort Products:
Key
Popularity

12-3-Opt 2 Wonder Climbing Brush Ring - Pack of 4

Extended Manufacturer Lead Time

Item #: 6101611-R4

$61.68

21 Dolphin Impeller With Screw - Yellow

7 in stock

Item #: 9995269-R1

$19.98

10-Opt 3 Dolphin Guide Wheels With 2 Pulley Gears - 4 Pack

78 in stock

Item #: 3884997-R6

$55.16

23 Dolphin Small Cable Float Assembly - Blue

Extended Manufacturer Lead Time

Item #: 9995090

$14.49

16-3 Dolphin 2x2/3001 Ultra-Fine Filter Bag - 50 Microns

20 in stock

Item #: 9995430-R1

$54.99

17-Bottom Lis Assy Advantge/Wave Bottom Lid Replacement Assembly and Support (2005)

20 in stock

Item #: 9995550

$52.55

A Dolphin Screw KA50X20 - MTIL

4 in stock

Item #: 3379720-A

$2.54

19-Retrofit Dolphin Advantage Retrofit Cable Connector - 3-Pin

Extended Manufacturer Lead Time

Item #: 9991279

$11.94

15-Opt 2 Dolphin Filter Bag Clips - Pack of 2

2 in stock

Item #: 9981430-R2

$14.65

5 Dolphin Drive Pulley TT

Extended Manufacturer Lead Time

Item #: 3883645

$35.24

13 Diagnostic Non Return Flap - Gray

12 in stock

Item #: 9985280

$8.61

11-Opt 2 Dolphin Timing Track - Yellow - Pack of 2

4 in stock

Item #: 9985007-R2

$49.99

26 Dolphin Amphenol Plug

1 in stock

Item #: 5000009

$37.90

3 Advantage Impeller Tube - Yellow

Extended Manufacturer Lead Time

Item #: 9995070

$10.85

4 Dolphin D-Type Shaft Hexagon Adaptor

24 in stock

Item #: 3865005

$9.86

18 Dolphin Cleaner Filter Screen

5 in stock

Item #: 6203703

$7.88

11-Opt 1 Dolphin Timing Track - Yellow

Extended Manufacturer Lead Time

Item #: 9985007

$49.99

16-2 Dynamic/Diagnostic Course Filter Bag

Extended Manufacturer Lead Time

Item #: 9995431-ASSY

$69.99

10-Opt 2 Guide Wheels With 1 Pulley Gear - 2 Pack

Extended Manufacturer Lead Time

Item #: 3884997-R3

$29.99

7 Advantage Handle Latch - Yellow

Extended Manufacturer Lead Time

Item #: 9985060

$6.56

8 Dolphin Handle Arm Slide

Extended Manufacturer Lead Time

Item #: 9985065

$6.56

6 Dolphin Diagnostic Handle Clip Spring

Extended Manufacturer Lead Time

Item #: 3917031

$2.54

B Dolphin KA50X16 Screw

Extended Manufacturer Lead Time

Item #: 3379616-A

$2.58

27-PS Dynamic Power Supply With Indicator and Delay Operations

17 in stock

Item #: 9995671-US-ASSY

$298.10

12-1 3001/2x2 PVC Brush - Blue

1 in stock

Item #: 6101603

$19.35

2 Advantage/ProX2 Handle Float - Yellow

Extended Manufacturer Lead Time

Item #: 9995741-ASSY

$42.72

24 Dolphin Wire Clip

Extended Manufacturer Lead Time

Item #: 3965030

$4.76

16-6 Dolphin 2x2/3001 Fine Filter Bag - 70 Microns

Extended Manufacturer Lead Time

Item #: 99954308-R1

$54.90

1 Dolphin Heavy-Duty Handle Assembly - Black/Blue

Extended Manufacturer Lead Time

Item #: 9995707

$63.58

12-4 Dolphin Diagnostic Wonder Brush

Extended Manufacturer Lead Time

Item #: 6101610

$146.43

25 3001/Heavy-Duty Side Panel - Blue

Extended Manufacturer Lead Time

Item #: 9995053

$30.00

14 Advantage Wheel Tube Assembly

Extended Manufacturer Lead Time

Item #: 99955953-ASSY

$53.91

9 Heavy-Duty/3001 Side Panel - Blue

Extended Manufacturer Lead Time

Item #: 9985084

$37.50

12-2-Opt 2 Diagnostic 2002 Climbing Brushes - Blue - Pack of 2

Extended Manufacturer Lead Time

Item #: 6101660-R2

$52.59

22-6 Wave 100, 3001 Dynamic Cable Swivel DIY - 98 Feet

Extended Manufacturer Lead Time

Item #: 9995747-DIY

$271.99

22-7 Wave 75 Dynamic Swivel Cable DIY - 98 Feet

Extended Manufacturer Lead Time

Item #: 9995875-DIY

$408.22

22-5 Wave 75/90/100, 3001 Dynamic Swivel Cable DIY - 115 Feet

Extended Manufacturer Lead Time

Item #: 9995755-DIY

$394.43

16-4 Dolphin 3001/2x2 Disposable Small Filter Bags - Pack of 2

Extended Manufacturer Lead Time

Item #: 9991440-R2

$65.18

D Dolphin Screw M4x14 - MTIL

Extended Manufacturer Lead Time

Item #: 3154414-A

$2.16

30 Pro X2 and 2x2 Cable Holder Kit

Extended Manufacturer Lead Time

Item #: 9991069-ASSY

$4.82
