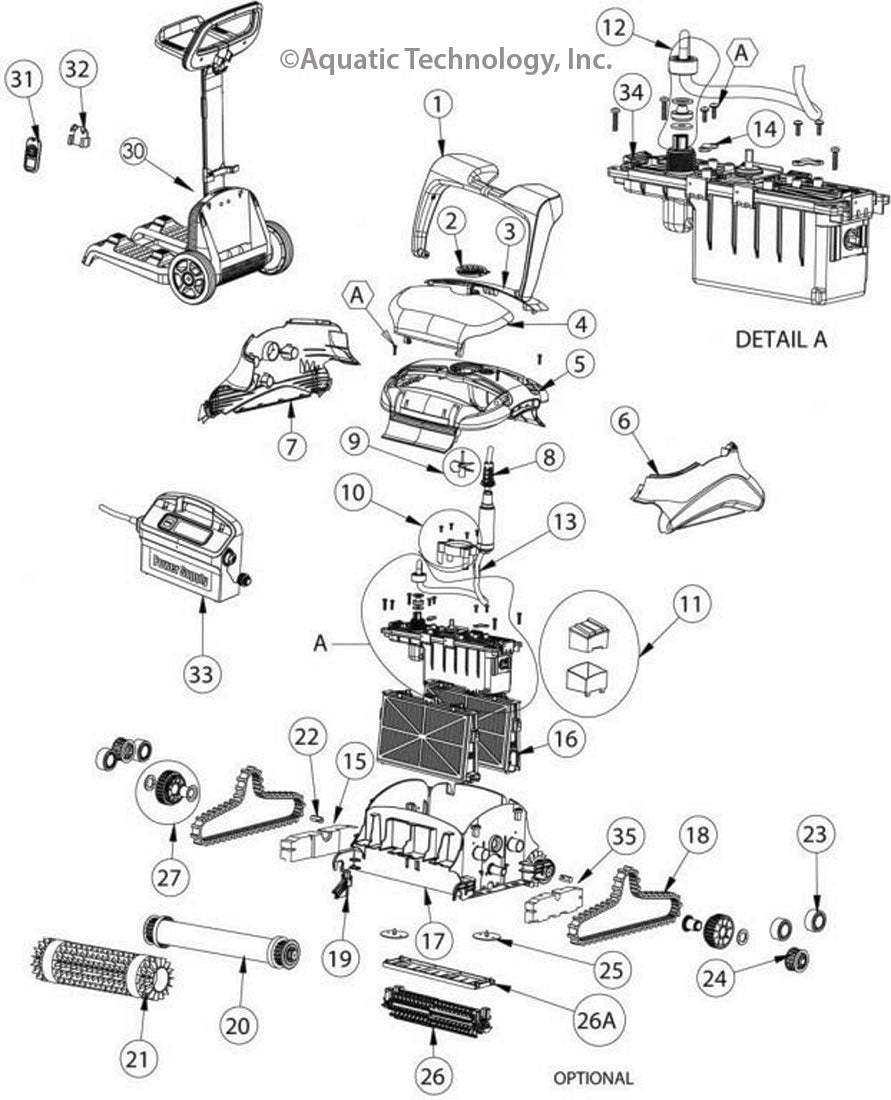

Dolphin C3 Pool Cleaner Parts Diagram | 55 parts

Frequently Purchased

	Dolphin Guide Wheels With 2 Pulley Gears - 4 Pack - 3884997-R6 67 in stock	$55.49
	Dolphin Timing Tracks - Gray - Pack of 2 - 9985006-R2 Extended Manufacturer Lead Time	$36.79
	M4 Cartridge Locking Hook - 9980731 290 in stock	$2.58
	Dolphin Impeller With Screw - Black - 9995266-R1 178 in stock	$18.09
	Dolphin Non-Return Flap - 9980891 1 in stock	$11.07

Any key items not listed on the above schematic are no longer available.

Sort Products:
Key
Popularity

23 Dolphin Guide Wheels With 2 Pulley Gears - 4 Pack

67 in stock

Item #: 3884997-R6

$55.49

18 Dolphin Timing Tracks - Gray - Pack of 2

Extended Manufacturer Lead Time

Item #: 9985006-R2

$36.79

16-03 M4 Cartridge Locking Hook

290 in stock

Item #: 9980731

$2.58

9 Dolphin Impeller With Screw - Black

178 in stock

Item #: 9995266-R1

$18.09

16-08 Dolphin Non-Return Flap

1 in stock

Item #: 9980891

$11.07

26-10 Dolphin Active Brush Holder Kit

Extended Manufacturer Lead Time

Item #: 9991594

$13.89

21-03 Wonder Climbing Brush Ring - Pack of 4

Extended Manufacturer Lead Time

Item #: 6101611-R4

$62.70

20-05 Dolphin Inner Wheel Tube Cork

13 in stock

Item #: 9982275

$2.58

16-06 Dolphin Filter and Cartridge Holder

14 in stock

Item #: 9980733

$14.27

30-01 Top Caddy Handle

Extended Manufacturer Lead Time

Item #: 9991098

$53.83

20-04 Diagnostic Basic Wheel Bearing

15 in stock

Item #: 3884073-ASSY

$22.43

21-02 DX3/DX4 Climbing Brushes - Gray - Pack of 2

Extended Manufacturer Lead Time

Item #: 6101641-R2

$59.28

13-2 Wave 60/65/80/90, C3/M400 Dynamic Cable Swivel DIY - 1.2 Meters

18 in stock

Item #: 9995791-DIY

$58.95

16-04 M4 Filter Kit Locking Adaptor

28 in stock

Item #: 9980753

$2.58

25 Wave/C3/C4 Rapid Drain Flaps - Set of 2

12 in stock

Item #: 9991046-ASSY

$4.78

16-07 Wave 65/90 Ultra-Fine Filter Cartridges - Pack of 4

Extended Manufacturer Lead Time

Item #: 9991432-R4

$62.00

27 Dolphin Active Brush Gear

1 in stock

Item #: 9991043-ASSY

$10.96

15 Dolphin Nautilus Plus M200 Side Float

39 in stock

Item #: 6250951

$4.29

23 Guide Wheels With 1 Pulley Gear - 2 Pack

Extended Manufacturer Lead Time

Item #: 3884997-R3

$29.99

24 Dolphin Drive Pulley TT

2 in stock

Item #: 3883645

$35.92

2 Dolphin C3/C4 Impeller Cover for MTC8 - Black

4 in stock

Item #: 99807053

$3.13

26 Supreme M4 / Wave 65 Active Brush Assembly

Extended Manufacturer Lead Time

Item #: 9995540-R1

$89.99

30-05 Dolphin Universal Caddy Screw Kit

Extended Manufacturer Lead Time

Item #: 9991503-ASSY

$11.72

22 Dolphin D-Type Shaft Hexagon Adaptor

15 in stock

Item #: 3865005

$10.59

30-02 Dolphin Handle Hook

Extended Manufacturer Lead Time

Item #: 9980675

$23.75

13-1 Supreme M4/5, M400/500 Swivel Cable - 3-Wire - 60 Feet

Extended Manufacturer Lead Time

Item #: 9995873-DIY

$199.71

30-06 Dolphin Caddy Cable Holder

Extended Manufacturer Lead Time

Item #: 9980678

$4.84

33 Dynamic Power Supply With Indicator and Delay Operations

11 in stock

Item #: 9995671-US-ASSY

$291.15

12-5 Dolphin Diagnostic Basic Cable Holder

Extended Manufacturer Lead Time

Item #: 9982332

$4.84

20 Diagnostic Basic Wheel Tube Assembly

42 in stock

Item #: 99955951-ASSY

$59.47

Dolphin Wheel Tube for Diagnostic Basic Cleaners

Extended Manufacturer Lead Time

Item #: 6101925

$10.43

20-03 Diagnostic Wheel Bearing Stopper Ring

2 in stock

Item #: 3885000

$2.58

26-07 Supreme Active Brush - Sold Each

1 in stock

Item #: 9980736

$83.53

11 Wave 65/90 C3/C4 Right Float and Housing Kit

Extended Manufacturer Lead Time

Item #: 9991074-ASSY

$8.77

12-2 Dolphin Retrofit for Cable Connection 2010

Extended Manufacturer Lead Time

Item #: 9991273

$30.43

30-03 Dolphin Caddy Remote Control Holder

Extended Manufacturer Lead Time

Item #: 9980679

$7.03

1 C3/C4 Handle Assembly

Extended Manufacturer Lead Time

Item #: 99957048-ASSY

$96.87

10 Dolphin Impeller Cylinder Assembly

Extended Manufacturer Lead Time

Item #: 9991044-ASSY

$4.84

20-01 Dolphin Inner Wheel Tube for Diagnostic Basic Cleaners

Extended Manufacturer Lead Time

Item #: 6101914

$9.50

30-04 Dolphin Caddy Profile Insert

Extended Manufacturer Lead Time

Item #: 9980676

$5.16

3 Dolphin C3/C4 Rear Cover - Light Gray

Extended Manufacturer Lead Time

Item #: 99807072

$24.27

4 Dolphin C3/C4 Front Cover - Light Gray

Extended Manufacturer Lead Time

Item #: 99807062

$24.27

5 C3/C4 Outer Casing Comfort

Extended Manufacturer Lead Time

Item #: 99952091-ASSY

$83.46

6 Dolphin C3/C4 Right Side Panel - Gray

Extended Manufacturer Lead Time

Item #: 99807122

$20.59

7 C3 Left Side Panel - Silver

Extended Manufacturer Lead Time

Item #: 99807652

$31.52

8 Dolphin Support for Cable 2010

Extended Manufacturer Lead Time

Item #: 9980880

$7.13

12-6 Dolphin Cover Locker Length Side

Extended Manufacturer Lead Time

Item #: 9980726

$5.01

12-7 Dolphin Cover Locker Short Side

Extended Manufacturer Lead Time

Item #: 9980727

$5.01

Wave, C3/C4, Sigma Cleaner Body

Extended Manufacturer Lead Time

Item #: 9991836

$69.50

18 Timing Track - Gray - Single Track

2 in stock

Item #: 9985006

$34.99
