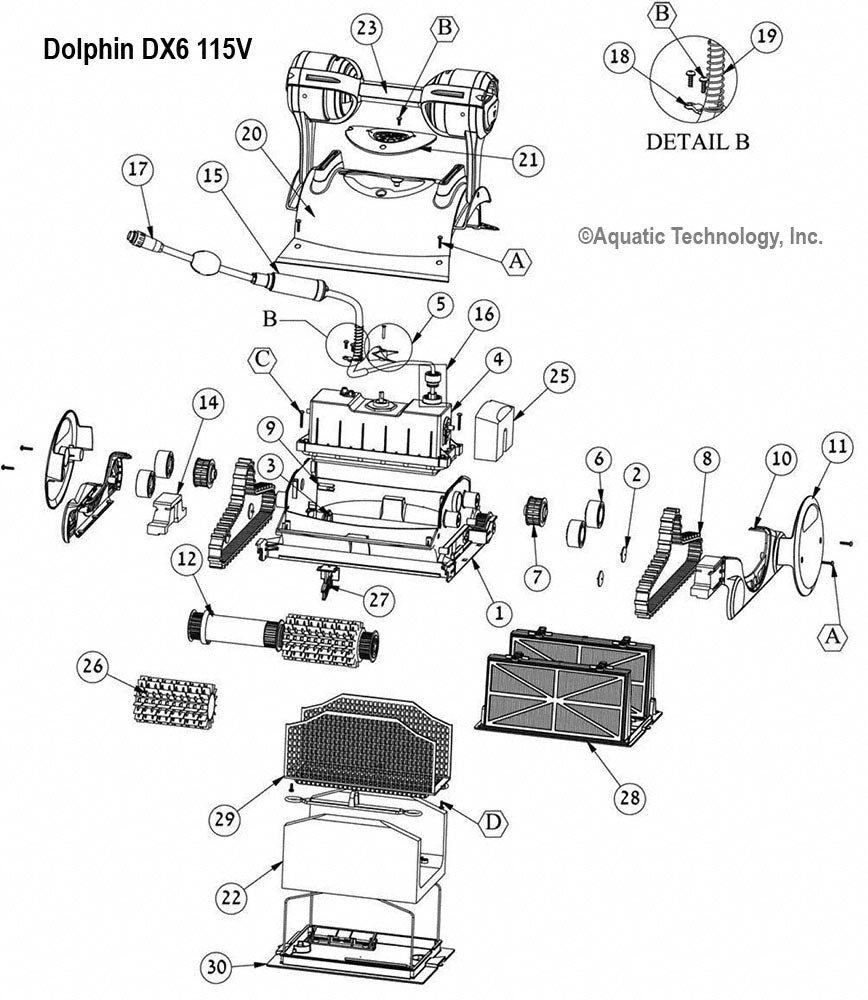

Dolphin DX6 115V CB 2013 Parts Diagram | 55 parts

Frequently Purchased

	Dolphin Guide Wheels With 2 Pulley Gears - 4 Pack - 3884997-R6 67 in stock	$55.49
	Dolphin Timing Tracks - Gray - Pack of 2 - 9985006-R2 Extended Manufacturer Lead Time	$36.79
	Dolphin Impeller With Screw - Black - 9995266-R1 178 in stock	$18.09
	Wonder Climbing Brush Ring - Pack of 4 - 6101611-R4 Extended Manufacturer Lead Time	$62.70
	Dolphin Inner Wheel Tube Cork - 9982275 13 in stock	$2.58

Any key items not listed on the above schematic are no longer available.

Sort Products:
Key
Popularity

WP(02) Dolphin Guide Wheels With 2 Pulley Gears - 4 Pack

67 in stock

Item #: 3884997-R6

$55.49

WP(01) Dolphin Timing Tracks - Gray - Pack of 2

Extended Manufacturer Lead Time

Item #: 9985006-R2

$36.79

WP(09) Dolphin Impeller With Screw - Black

178 in stock

Item #: 9995266-R1

$18.09

WP(04) Wonder Climbing Brush Ring - Pack of 4

Extended Manufacturer Lead Time

Item #: 6101611-R4

$62.70

12(01) Dolphin Inner Wheel Tube Cork

13 in stock

Item #: 9982275

$2.58

12(02) Diagnostic Basic Wheel Bearing

15 in stock

Item #: 3884073-ASSY

$22.43

28(06) Diagnostic Basic Bottom Lid Latch

6 in stock

Item #: 9982330

$2.58

28(05) DX4/DX5 Hook Lock for Cartridge

12 in stock

Item #: 9985446

$2.58

15(03) DX4/5/6 Plus Dynamic Cable Swivel Basic DIY - 1.2 Meters

1 in stock

Item #: 9995791-RC-DIY

$58.90

20(A) Dolphin Screw KA50X20 - MTIL

14 in stock

Item #: 3379720-A

$2.58

16(02) Dolphin Cable Connector

3 in stock

Item #: 1811404

$2.62

16 Dolphin Advantage Retrofit Cable Connector - 3-Pin

Extended Manufacturer Lead Time

Item #: 9991279

$12.57

B Dolphin Screw KA50X12 - A2 WN1412

9 in stock

Item #: 3379440-A

$2.58

07 Dolphin Drive Pulley TT

2 in stock

Item #: 3883645

$35.92

C Dolphin Screw KA50X30 - MTIL

2 in stock

Item #: 3305030-A

$2.58

09 Dolphin D-Type Shaft Hexagon Adaptor

15 in stock

Item #: 3865005

$10.59

15(02) DX4/5/6, Apollo Dynamic DIY Swivel Cable - 60 Feet

1 in stock

Item #: 9995872-DIY

$254.99

26(01) Dolphin PVC Brush - Gray

Extended Manufacturer Lead Time

Item #: 6101635

$21.16

02 Diagnostic Basic Non Return Diaphragm

Extended Manufacturer Lead Time

Item #: 9980220

$11.72

17 Dolphin Amphenol Plug

3 in stock

Item #: 5000009

$42.29

001(01) Dynamic Power Supply With Weekly Timer and Indicator

142 in stock

Item #: 9995678-US-ASSY

$309.80

WP(03) Dynamic PVC Climbing Brushes - Gray - Pack of 4

Extended Manufacturer Lead Time

Item #: 6101656-R4

$94.25

16(01) Dolphin Cable Connection - Three Pin

Extended Manufacturer Lead Time

Item #: 9985048

$4.84

26(04) Dynamic Wonder Brush - Pair

Extended Manufacturer Lead Time

Item #: 9995560-ASSY

$130.82

16(03) Dolphin Plastic Washer - 7mm x 2mm

Extended Manufacturer Lead Time

Item #: 9985027

$2.62

18 Dolphin Diagnostic Basic Cable Holder

Extended Manufacturer Lead Time

Item #: 9982332

$4.84

01 Maytronics Dolphin Robotic Pool Cleaner Frame, Multiple Models 2008

Extended Manufacturer Lead Time

Item #: 9980630

$59.75

12 DX5/DX6 Wheel Tube Assembly

9 in stock

Item #: 99955956-ASSY

$86.72

12(03) Diagnostic Wheel Bearing Stopper Ring

2 in stock

Item #: 3885000

$2.58

28(07) Dolphin Diagnostic Basic Bottom Lid Spring

Extended Manufacturer Lead Time

Item #: 9982331

$2.62

001(02) Pro X2 Wireless Remote Control

6 in stock

Item #: 99954226-R1

$127.67

30 Deluxe Series Bottom Lid Assembly

Extended Manufacturer Lead Time

Item #: 99919117

$59.33

12(04) Dynamic TT Wheel Assembly PVC Tube

Extended Manufacturer Lead Time

Item #: 6101912

$5.97

12(05) Dolphin Inner Wheel Tube for Diagnostic Basic Cleaners

Extended Manufacturer Lead Time

Item #: 6101914

$9.50

WP(08) DX6 Ultra-Fine Filter Bag - 50 Microns

Extended Manufacturer Lead Time

Item #: 99954303-R1

$83.12

08 Timing Track - Gray - Single Track

2 in stock

Item #: 9985006

$34.99

11 Wave 75/DX6 Side Cover - Gray

Extended Manufacturer Lead Time

Item #: 99806211

$23.75

14 DX6/Wave 75 Internal Float

Extended Manufacturer Lead Time

Item #: 6250945

$4.97

16(04) Dolphin Cable Connection O-Ring

Extended Manufacturer Lead Time

Item #: 3861002

$2.65

16(05) Dolphin Washer - ID 13mm

Extended Manufacturer Lead Time

Item #: 9980025

$2.62

19 Dolphin 3-Wire Cable Spring

Extended Manufacturer Lead Time

Item #: 3917033

$4.91

20 DX6 Outer Casing

Extended Manufacturer Lead Time

Item #: 99951903

$139.57

20(01) DX6 Top Shell - Gray

Extended Manufacturer Lead Time

Item #: 99806373

$67.39

23 DX6 Handle Assembly

Extended Manufacturer Lead Time

Item #: 99957022-ASSY

$96.87

25 Dynamic DX6/Apollo Float

Extended Manufacturer Lead Time

Item #: 6250941

$4.91

26(05) Dolphin Dynamic Basic CB Wheel Assembly - Gray

Extended Manufacturer Lead Time

Item #: 99955340-ASSY

$126.37

27 DX5/DX6 Brush Support

Extended Manufacturer Lead Time

Item #: 9980640

$4.84

29 Dolphin Pool Cleaner Motor Filter Screen

Extended Manufacturer Lead Time

Item #: 9980627

$7.13

30(07) DLX5/DX6 Filter Bag Support DJ

Extended Manufacturer Lead Time

Item #: 5583077

$9.37

30(A) Dolphin Screw KA30X8 WN1412 A2

Extended Manufacturer Lead Time

Item #: 3303008-A

$1.78
