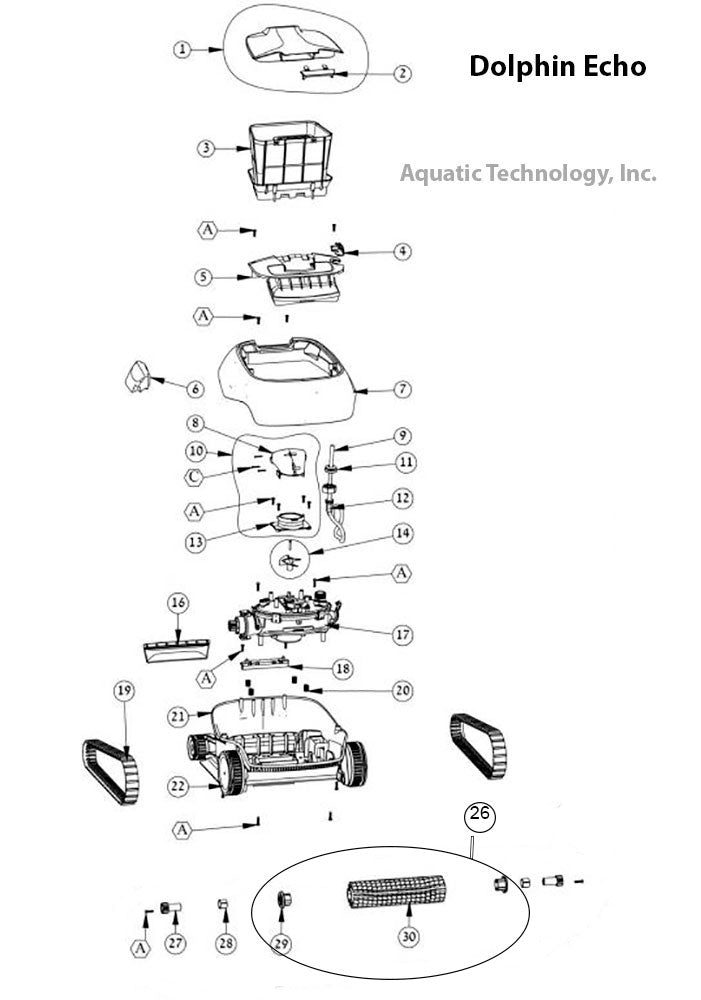

Dolphin Echo Parts Diagram | 47 parts

Frequently Purchased

	Dolphin Wheel Bushing - 9983114 297 in stock	$3.24
	Dolphin Impeller With Screw - Black - 9995266-R1 183 in stock	$17.77
	Dolphin Large Cable Float - Blue - 99960081 Extended Manufacturer Lead Time	$14.49
	Dolphin Active Brush Gear Z12 - 9983018 463 in stock	$2.54
	Echo, Encore, Explorer E20 Cable - 2-Wire - 50 Feet - 9995884-DIY 27 in stock	$131.20

Any key items not listed on the above schematic are no longer available.

Sort Products:
Key
Popularity

22-5 Dolphin Wheel Bushing

297 in stock

Item #: 9983114

$3.24

14 Dolphin Impeller With Screw - Black

183 in stock

Item #: 9995266-R1

$17.77

9-98 Dolphin Large Cable Float - Blue

Extended Manufacturer Lead Time

Item #: 99960081

$14.49

27 Dolphin Active Brush Gear Z12

463 in stock

Item #: 9983018

$2.54

9 Echo, Encore, Explorer E20 Cable - 2-Wire - 50 Feet

27 in stock

Item #: 9995884-DIY

$131.20

3-C Dolphin Ultra-Fine Filter Basket

405 in stock

Item #: 9991460-R1

$94.24

28 S50/S100 Active Brush Bushing

101 in stock

Item #: 9983042

$2.29

9-95-140 Dolphin Cable Connector

7 in stock

Item #: 1811404

$2.58

29 S50/S100 Active Brush Adaptor

117 in stock

Item #: 9983017

$4.70

22-9 Prowler 910/917 Small Wheel - White

Extended Manufacturer Lead Time

Item #: 9983015

$6.46

19 Dolphin Tracks - Gray - Set of 2 - S300

11 in stock

Item #: 9983152-R2

$53.99

Prowler 910/917 Front Wheel - White

Extended Manufacturer Lead Time

Item #: 99834101

$5.79

9-98-1 Dolphin One-Half Cable Float Cover - Blue

9 in stock

Item #: 9982263

$6.56

30 Dolphin Front Active Brush - Gray

14 in stock

Item #: 9983122-R1

$15.76

9-97 Dolphin Amphenol Plug

1 in stock

Item #: 5000009

$37.90

9-95-145 Dolphin Cable Connection - Three Pin

Extended Manufacturer Lead Time

Item #: 9985048

$4.76

26 Dolphin E10/E20 Active Brush Assembly - Gray

Extended Manufacturer Lead Time

Item #: 9995544-ASSY

$41.78

22-1 E10/Echo/T15 Large Wheel Cover - White

5 in stock

Item #: 9983014

$5.71

3-1 Spring Filter Basket Assembly

1 in stock

Item #: 9991459-R1

$113.18

3-12 Saturn/Echo Ultra-Fine Filters - Set of 4

9 in stock

Item #: 9991466-R4

$79.78

16 Nautilus CC Rapid Drain Flap

Extended Manufacturer Lead Time

Item #: 9983024-R1

$9.78

1 Echo Rear Lid Assembly - Orange

Extended Manufacturer Lead Time

Item #: 99952135-ASSY

$43.72

2 Echo Latch 02

Extended Manufacturer Lead Time

Item #: 9983008

$4.76

3-1-11 Saturn/Echo Fine Filters - Set of 4

Extended Manufacturer Lead Time

Item #: 9991468-R4

$57.09

3-1-12 Dolphin Filter Handle Knob

2 in stock

Item #: 9983027

$4.99

3-1-13 Dolphin Filter Handle Spring

Extended Manufacturer Lead Time

Item #: 3917029

$11.33

3-1-14 Dolphin Filter Handle 1

Extended Manufacturer Lead Time

Item #: 9983004

$9.06

3-1-15 Dolphin Filter Frame Top

Extended Manufacturer Lead Time

Item #: 9983037

$13.12

3-1-16 Nautilus CC Filter Flap

Extended Manufacturer Lead Time

Item #: 9983025

$4.76

3-1-18 Nauitlus CC Filter Holder

Extended Manufacturer Lead Time

Item #: 9983026

$4.76

3-1-A Dolphin Screw KA30X8 WN1412 A2

Extended Manufacturer Lead Time

Item #: 3303008-A

$1.78

3-1-B Dolphin KA40X12 Filter Screen Screw

Extended Manufacturer Lead Time

Item #: 3379450-A

$2.58

3-D-11 Explorer E20 Front and Rear Spring Filters

Extended Manufacturer Lead Time

Item #: 9991462-R2

$40.01

5 Echo Handle Assembly - Orange

Extended Manufacturer Lead Time

Item #: 99957096-ASSY

$30.60

6 Nautilus CC Upper Float and Housing

Extended Manufacturer Lead Time

Item #: 9991741

$2.58

8 Dolphin Nozzle Tube Small Left and Right Assembly

Extended Manufacturer Lead Time

Item #: 9991740

$2.58

9-95 Dolphin Retrofit for Cable Connection 2015

Extended Manufacturer Lead Time

Item #: 9991271

$26.96

9-95-141 Dolphin Cable Connection O-Ring

Extended Manufacturer Lead Time

Item #: 3861002

$2.61

9-95-142 Dolphin Washer - ID 13mm

Extended Manufacturer Lead Time

Item #: 9980025

$2.58

9-95-143 Dolphin Nut for MBU Terminal 2015

Extended Manufacturer Lead Time

Item #: 9980797

$2.61

9-96 Dolphin Grommet Ref - Small

Extended Manufacturer Lead Time

Item #: 9983126

$2.58

9-98-2 Dolphin Half Polystyrene Float for Cable

Extended Manufacturer Lead Time

Item #: 6250930

$4.82

10 Dolphin Manifold

Extended Manufacturer Lead Time

Item #: 9991742

$11.33

18 Echo/Nautilus CC Outer Casing Adapter

Extended Manufacturer Lead Time

Item #: 9983019

$6.80

20 Dolphin Filter Spring

Extended Manufacturer Lead Time

Item #: 3917022

$4.76

21-1 Dolphin Inner Weight and Cover

Extended Manufacturer Lead Time

Item #: 9991746-ASSY

$11.33

21-6 Dolphin Lower Float and Housing

Extended Manufacturer Lead Time

Item #: 9991747

$4.92
