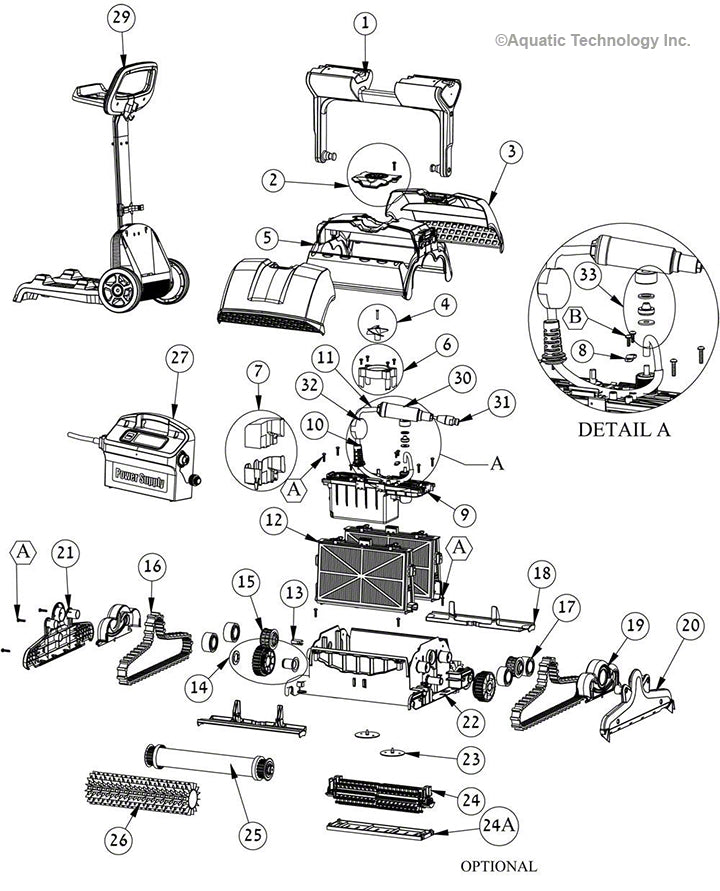

Dolphin Supreme M4 Pool Cleaner Parts Diagram | 54 parts

Frequently Purchased

	Dolphin Guide Wheels With 2 Pulley Gears - 4 Pack - 3884997-R6 64 in stock	$56.18
	Dolphin Timing Tracks - Gray - Pack of 2 - 9985006-R2 23 in stock	$36.79
	M4 Cartridge Locking Hook - 9980731 273 in stock	$2.58
	Dolphin Impeller With Screw - Black - 9995266-R1 177 in stock	$18.09
	Dolphin Non-Return Flap - 9980891 197 in stock	$11.29

Any key items not listed on the above schematic are no longer available.

Sort Products:
Key
Popularity

WP(02) Dolphin Guide Wheels With 2 Pulley Gears - 4 Pack

64 in stock

Item #: 3884997-R6

$56.18

16 Dolphin Timing Tracks - Gray - Pack of 2

23 in stock

Item #: 9985006-R2

$36.79

12(03) M4 Cartridge Locking Hook

273 in stock

Item #: 9980731

$2.58

04 Dolphin Impeller With Screw - Black

177 in stock

Item #: 9995266-R1

$18.09

12(08) Dolphin Non-Return Flap

197 in stock

Item #: 9980891

$11.29

24(10) Dolphin Active Brush Holder Kit

Extended Manufacturer Lead Time

Item #: 9991594

$13.89

WP(04) Wonder Climbing Brush Ring - Pack of 4

7 in stock

Item #: 6101611-R4

$62.70

25(05) Dolphin Inner Wheel Tube Cork

11 in stock

Item #: 9982275

$2.58

12(06) Dolphin Filter and Cartridge Holder

10 in stock

Item #: 9980733

$14.57

25(04) Diagnostic Basic Wheel Bearing

7 in stock

Item #: 3884073-ASSY

$22.87

WP(03) DX3/DX4 Climbing Brushes - Gray - Pack of 2

Extended Manufacturer Lead Time

Item #: 6101641-R2

$59.28

12(04) M4 Filter Kit Locking Adaptor

24 in stock

Item #: 9980753

$2.58

A Dolphin Screw KA50X20 - MTIL

12 in stock

Item #: 3379720-A

$2.58

30(02) Dolphin Cable Connector

3 in stock

Item #: 1811404

$2.62

03 M400/500 Filter Door Assembly

16 in stock

Item #: 9991047-ASSY

$47.12

23 Wave/C3/C4 Rapid Drain Flaps - Set of 2

12 in stock

Item #: 9991046-ASSY

$4.78

12(07) Wave 65/90 Ultra-Fine Filter Cartridges - Pack of 4

Extended Manufacturer Lead Time

Item #: 9991432-R4

$62.00

14 Dolphin Active Brush Gear

5 in stock

Item #: 9991043-ASSY

$10.96

24(04) Dolphin Screw KA50X12 - A2 WN1412

5 in stock

Item #: 3379440-A

$2.58

12 Wave 65/90 Fine Filter Cartridges - Pack of 4

Extended Manufacturer Lead Time

Item #: 9991433-R4

$58.94

15 Dolphin Drive Pulley TT

1 in stock

Item #: 3883645

$35.92

24 Supreme M4 / Wave 65 Active Brush Assembly

Extended Manufacturer Lead Time

Item #: 9995540-R1

$89.99

13 Dolphin D-Type Shaft Hexagon Adaptor

14 in stock

Item #: 3865005

$10.59

01 M4/M5 M400/M500 Handle Assembly

Extended Manufacturer Lead Time

Item #: 99957042-ASSY

$84.57

30(01) Dolphin Cable Connection - Three Pin

Extended Manufacturer Lead Time

Item #: 9985048

$4.84

11(01) Supreme M4/5, M400/500 Swivel Cable - 3-Wire - 60 Feet

Extended Manufacturer Lead Time

Item #: 9995873-DIY

$199.71

08 Dolphin Diagnostic Basic Cable Holder

Extended Manufacturer Lead Time

Item #: 9982332

$4.84

30(03) Dolphin Plastic Washer - 7mm x 2mm

Extended Manufacturer Lead Time

Item #: 9985027

$2.62

01(03) M4/M5 M400/M500 Handle Float

Extended Manufacturer Lead Time

Item #: 9980820

$9.37

20 Supreme M4 Side Panel Fins

Extended Manufacturer Lead Time

Item #: 9980865

$23.75

25 Diagnostic Basic Wheel Tube Assembly

39 in stock

Item #: 99955951-ASSY

$60.29

25(03) Diagnostic Wheel Bearing Stopper Ring

Extended Manufacturer Lead Time

Item #: 3885000

$2.58

24(07) Supreme Active Brush - Sold Each

1 in stock

Item #: 9980736

$83.53

30 Dolphin Retrofit for Cable Connection 2010

Extended Manufacturer Lead Time

Item #: 9991273

$30.43

06 Dolphin Impeller Cylinder Assembly

Extended Manufacturer Lead Time

Item #: 9991044-ASSY

$4.84

25(01) Dolphin Inner Wheel Tube for Diagnostic Basic Cleaners

Extended Manufacturer Lead Time

Item #: 6101914

$9.50

21 M4/M5 M400/M500 Side Panel

Extended Manufacturer Lead Time

Item #: 9980863

$21.15

02 Supreme/M400 Impeller Cover

Extended Manufacturer Lead Time

Item #: 9991045-ASSY

$4.84

05 Supreme M4 Outer Casing

Extended Manufacturer Lead Time

Item #: 99952032-ASSY

$82.38

07 Supreme M3/M4 Float and Housing Kit

Extended Manufacturer Lead Time

Item #: 9991072-ASSY

$16.59

10 Dolphin Support for Cable 2010

Extended Manufacturer Lead Time

Item #: 9980880

$7.13

18 M4/M5 M400/M500 Brush Cover

Extended Manufacturer Lead Time

Item #: 9980892

$9.50

19 M4/M5 M400/M500 Track Safety Cover

Extended Manufacturer Lead Time

Item #: 9980883

$9.50

24A Dolphin Active Brush Cover

Extended Manufacturer Lead Time

Item #: 9980700

$2.62

26(04) Dolphin Diagnostic Wonder Brush

Extended Manufacturer Lead Time

Item #: 6101610

$153.79

30(04) Dolphin Cable Connection O-Ring

Extended Manufacturer Lead Time

Item #: 3861002

$2.65

30(05) Dolphin Washer - ID 13mm

Extended Manufacturer Lead Time

Item #: 9980025

$2.62

24(06) Dolphin Dynamic Brush Tube Connector

Extended Manufacturer Lead Time

Item #: 9980756

$9.37

16 Timing Track - Gray - Single Track

2 in stock

Item #: 9985006

$34.99

01(02) M400/M500 Handle Float

Extended Manufacturer Lead Time

Item #: 6250942

$4.84
