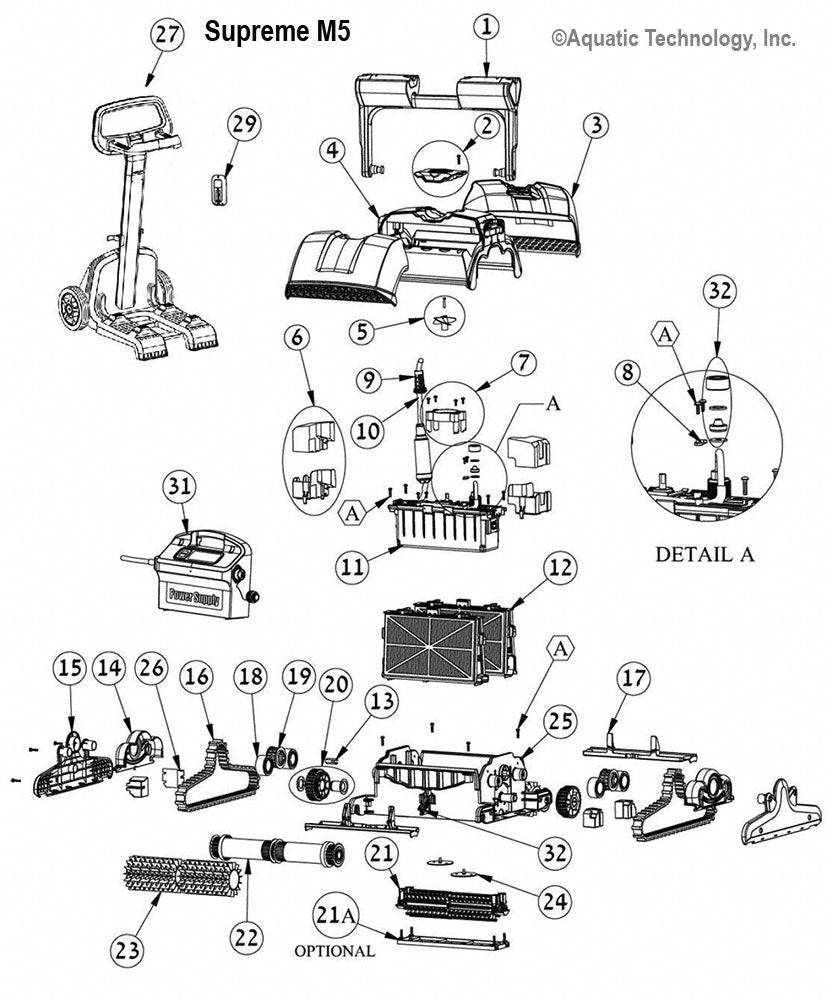

Dolphin Supreme M5 Parts Diagram | 85 parts

Dolphin Supreme M5 Parts

Frequently Purchased

3884997-R6
Dolphin Guide Wheels With 2 Pulley Gears - 4 Pack - 3884997-R6
148 in stock
$54.99
9985006-R2
Dolphin Timing Tracks - Gray - Pack of 2 - 9985006-R2
177 in stock
$60.83
9980731
M4 Cartridge Locking Hook - 9980731
9 in stock
$2.44
9995266-R1
Dolphin Impeller With Screw - Black - 9995266-R1
228 in stock
$16.92
9980891
Dolphin Non-Return Flap - 9980891
134 in stock
$10.74
Any key items not listed on the above schematic are no longer available.
3884997-R6
WPb Dolphin Guide Wheels With 2 Pulley Gears - 4 Pack
148 in stock
Item #: 3884997-R6
$54.99
9985006-R2
WPa Dolphin Timing Tracks - Gray - Pack of 2
177 in stock
Item #: 9985006-R2
$60.83
9980731
12a M4 Cartridge Locking Hook
9 in stock
Item #: 9980731
$2.44
9995266-R1
WPh Dolphin Impeller With Screw - Black
228 in stock
Item #: 9995266-R1
$16.92
9980891
12g Dolphin Non-Return Flap
134 in stock
Item #: 9980891
$10.74
9991594
21d Dolphin Active Brush Holder Kit
203 in stock
Item #: 9991594
$13.35
6101611-R4
WPd Wonder Climbing Brush Ring - Pack of 4
3 in stock
Item #: 6101611-R4
$58.90
5898412LF
31c Dolphin Digital Power Supply Cable
50 in stock
Item #: 5898412LF
$20.57
9982275
22a Dolphin Inner Wheel Tube Cork
69 in stock
Item #: 9982275
$2.44
9980733
12e Dolphin Filter and Cartridge Holder
35 in stock
Item #: 9980733
$13.74
9991098
27a Top Caddy Handle
4 in stock
Item #: 9991098
$49.96
3884073-ASSY
22b Diagnostic Basic Wheel Bearing
11 in stock
Item #: 3884073-ASSY
$21.64
$58.95
9980753
12c M4 Filter Kit Locking Adaptor
12 in stock
Item #: 9980753
$2.44
3379720-A
1h Dolphin Screw KA50X20 - MTIL
25 in stock
Item #: 3379720-A
$2.44
1811404
32b Dolphin Cable Connector
7 in stock
Item #: 1811404
$2.42
9991047-ASSY
3/4i M400/500 Filter Door Assembly
20 in stock
Item #: 9991047-ASSY
$43.76
9991046-ASSY
24 Wave/C3/C4 Rapid Drain Flaps - Set of 2
11 in stock
Item #: 9991046-ASSY
$4.48
9991043-ASSY
20 Dolphin Active Brush Gear
3 in stock
Item #: 9991043-ASSY
$10.23
9991432-R4
WPf Wave 65/90 Ultra-Fine Filter Cartridges - Pack of 4
6 in stock
Item #: 9991432-R4
$82.92
3379440-A
1g Dolphin Screw KA50X12 - A2 WN1412
1 in stock
Item #: 3379440-A
$2.44
9991433-R4
12d Wave 65/90 Fine Filter Cartridges - Pack of 4
1 in stock
Item #: 9991433-R4
$59.99
3883645
19 Dolphin Drive Pulley TT
3 in stock
Item #: 3883645
$33.41
9980886
4g M4/M5 M400/M500 Locker Hook
4 in stock
Item #: 9980886
$4.54
9991503-ASSY
27e Dolphin Universal Caddy Screw Kit
Allow 14-21 Days to Ship
Item #: 9991503-ASSY
$10.37
More Info
3865005
13 Dolphin D-Type Shaft Hexagon Adaptor
17 in stock
Item #: 3865005
$9.15
6101635
23a Dolphin PVC Brush - Gray
Allow 14-21 Days to Ship
Item #: 6101635
$20.21
More Info
9995541-R1
WPg M5 M400/500 Active Brush Assembly
Allow 14-21 Days to Ship
Item #: 9995541-R1
$123.53
More Info
99957042-ASSY
1 M4/M5 M400/M500 Handle Assembly
4 in stock
Item #: 99957042-ASSY
$80.58
3917031
4c Dolphin Diagnostic Handle Clip Spring
6 in stock
Item #: 3917031
$2.44
6101656-R4
WPc Dynamic PVC Climbing Brushes - Gray - Pack of 4
Allow 14-21 Days to Ship
Item #: 6101656-R4
$49.99
More Info
9980675
27b Dolphin Handle Hook
Allow 14-21 Days to Ship
Item #: 9980675
$20.21
More Info
9985048
32a Dolphin Cable Connection - Three Pin
Allow 14-21 Days to Ship
Item #: 9985048
$4.46
More Info
9985065
4f Dolphin Handle Arm Slide
1 in stock
Item #: 9985065
$6.26
9995873-DIY
10 Supreme M4/5, M400/500 Swivel Cable - 3-Wire - 60 Feet
14 in stock
Item #: 9995873-DIY
$299.99
9995560-ASSY
23d Dynamic Wonder Brush - Pair
1 in stock
Item #: 9995560-ASSY
$130.29
9980678
27f Dolphin Caddy Cable Holder
Allow 14-21 Days to Ship
Item #: 9980678
$4.54
More Info
9995671-US-ASSY
31 Dynamic Power Supply With Indicator and Delay Operations
Allow 14-21 Days to Ship
Item #: 9995671-US-ASSY
$299.99
More Info
9980820
1c M4/M5 M400/M500 Handle Float
Allow 14-21 Days to Ship
Item #: 9980820
$8.14
More Info
9982332
8 Dolphin Diagnostic Basic Cable Holder
Allow 14-21 Days to Ship
Item #: 9982332
$4.51
More Info
9991048-ASSY
26 M400/M500 Side Panel Floats - Set of 4
Allow 14-21 Days to Ship
Item #: 9991048-ASSY
$4.46
More Info
3379212
31d Dolphin KA30X12 Screw
Allow 14-21 Days to Ship
Item #: 3379212
$2.42
More Info
9985027
32c Dolphin Plastic Washer - 7mm x 2mm
Allow 14-21 Days to Ship
Item #: 9985027
$2.45
More Info
9980736
21c Supreme Active Brush - Sold Each
6 in stock
Item #: 9980736
$79.73
99955956-ASSY
22 DX5/DX6 Wheel Tube Assembly
Allow 14-21 Days to Ship
Item #: 99955956-ASSY
$81.13
More Info
3885000
22c Diagnostic Wheel Bearing Stopper Ring
1 in stock
Item #: 3885000
$2.44
9980814
1e M400/M500 Main Handle
Allow 14-21 Days to Ship
Item #: 9980814
$49.28
More Info
9980881
4h M4/M5 M400/M500 Door Locker Button
Allow 14-21 Days to Ship
Item #: 9980881
$4.51
More Info
9991273
11c Dolphin Retrofit for Cable Connection 2010
Allow 14-21 Days to Ship
Item #: 9991273
$25.91
More Info
9980679
27c Dolphin Caddy Remote Control Holder
Allow 14-21 Days to Ship
Item #: 9980679
$6.22
More Info
