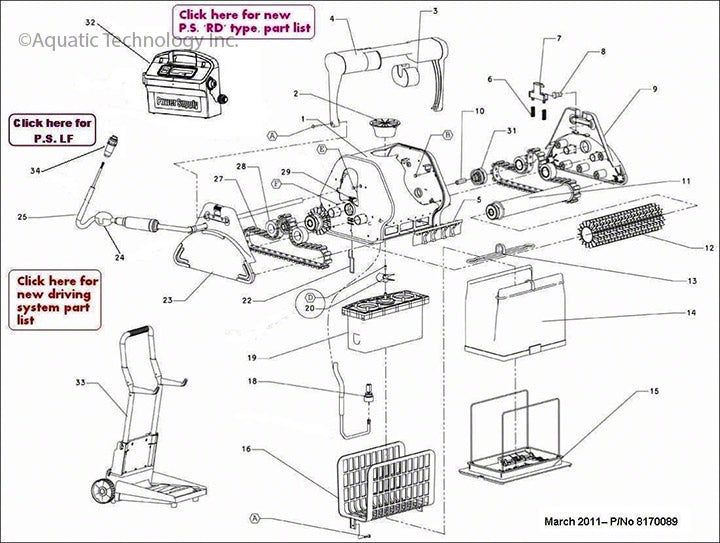

Dolphin Wave 50 Pool Cleaner Parts Diagram | 41 parts

Frequently Purchased

	Dolphin Guide Wheels With 2 Pulley Gears - 4 Pack - 3884997-R6 79 in stock	$55.16
	Dolphin Timing Tracks - Gray - Pack of 2 - 9985006-R2 13 in stock	$35.77
	Wonder Climbing Brush Ring - Pack of 4 - 6101611-R4 Extended Manufacturer Lead Time	$61.68
	Dolphin Impeller With Screw - Yellow - 9995269-R1 7 in stock	$19.98
	Dolphin Filter Bag Clips - Pack of 2 - 9981430-R2 2 in stock	$14.65

Any key items not listed on the above schematic are no longer available.

Sort Products:
Key
Popularity

28-Opt 3 Dolphin Guide Wheels With 2 Pulley Gears - 4 Pack

79 in stock

Item #: 3884997-R6

$55.16

27-Opt 2 Dolphin Timing Tracks - Gray - Pack of 2

13 in stock

Item #: 9985006-R2

$35.77

12(c) Wonder Climbing Brush Ring - Pack of 4

Extended Manufacturer Lead Time

Item #: 6101611-R4

$61.68

20 Dolphin Impeller With Screw - Yellow

7 in stock

Item #: 9995269-R1

$19.98

13-Opt 2 Dolphin Filter Bag Clips - Pack of 2

2 in stock

Item #: 9981430-R2

$14.65

12(b) DX3/DX4 Climbing Brushes - Gray - Pack of 2

3 in stock

Item #: 6101641-R2

$58.22

14-3 Dolphin 2x2/3001 Ultra-Fine Filter Bag - 50 Microns

20 in stock

Item #: 9995430-R1

$54.99

15 Advantge/Wave Bottom Lid Replacement Assembly and Support (2005)

20 in stock

Item #: 9995550

$52.55

A Dolphin Screw KA50X20 - MTIL

4 in stock

Item #: 3379720-A

$2.54

18 Dolphin Advantage Retrofit Cable Connector - 3-Pin

Extended Manufacturer Lead Time

Item #: 9991279

$11.94

5 Diagnostic Non Return Flap - Gray

12 in stock

Item #: 9985280

$8.61

14-2 Dynamic/Diagnostic Course Filter Bag

Extended Manufacturer Lead Time

Item #: 9995431-ASSY

$69.99

28-Opt 2 Guide Wheels With 1 Pulley Gear - 2 Pack

Extended Manufacturer Lead Time

Item #: 3884997-R3

$29.99

24-1 Dolphin One-Half Cable Float Cover - Blue

9 in stock

Item #: 9982263

$6.56

16 Dolphin Cleaner Filter Screen

1 in stock

Item #: 6203703

$7.88

10 Dolphin D-Type Shaft Hexagon Adaptor

24 in stock

Item #: 3865005

$9.86

34 Dolphin Amphenol Plug

1 in stock

Item #: 5000009

$37.90

6 Dolphin Diagnostic Handle Clip Spring

Extended Manufacturer Lead Time

Item #: 3917031

$2.54

32 Dynamic Power Supply With Weekly Timer and Indicator

145 in stock

Item #: 9995678-US-ASSY

$279.82

22 Dolphin Wire Clip

Extended Manufacturer Lead Time

Item #: 3965030

$4.76

8 Dolphin Handle Arm Slide

Extended Manufacturer Lead Time

Item #: 9985065

$6.56

F Dolphin KA30X12 Screw

Extended Manufacturer Lead Time

Item #: 3379212

$2.58

31 Dolphin Flat Shaft Pulley

Extended Manufacturer Lead Time

Item #: 3884076

$21.25

26 Power Supply Diagnostic USA 115V - Basic On/Off

60 in stock

Item #: 9995670-US-ASSY

$199.99

14-6 Dolphin 2x2/3001 Fine Filter Bag - 70 Microns

Extended Manufacturer Lead Time

Item #: 99954308-R1

$54.90

29 Pro X2 and 2x2 Cable Holder Kit

Extended Manufacturer Lead Time

Item #: 9991069-ASSY

$4.82

25-1 Odyssey, Wave 80 Dynamic DIY Swivel Cable - 79 Feet

Extended Manufacturer Lead Time

Item #: 9995871-DIY

$299.47

B Dolphin KA50X16 Screw

Extended Manufacturer Lead Time

Item #: 3379616-A

$2.58

E Dolphin Screw M4x14 - MTIL

Extended Manufacturer Lead Time

Item #: 3154414-A

$2.16

1 Wave 50 Outer Casing

Extended Manufacturer Lead Time

Item #: 99951805

$115.19

4 ProX2 Handle Assembly - Orange

Extended Manufacturer Lead Time

Item #: 9995723

$64.53

7 Advantage Handle Latch - Yellow

Extended Manufacturer Lead Time

Item #: 9985060

$6.56

9 Wave 50 Side Panel - Orange

Extended Manufacturer Lead Time

Item #: 9985077

$27.76

14-4 Dolphin 3001/2x2 Disposable Small Filter Bags - Pack of 2

Extended Manufacturer Lead Time

Item #: 9991440-R2

$65.18

23 Wave 50 Side Panel and Grommet - Orange

Extended Manufacturer Lead Time

Item #: 9995037

$30.00

24-2 Dolphin Half Polystyrene Float for Cable

Extended Manufacturer Lead Time

Item #: 6250930

$4.82

12(d) Dolphin Diagnostic Wonder Brush

Extended Manufacturer Lead Time

Item #: 6101610

$146.43

2 Gyro Impeller Tube - Black

Extended Manufacturer Lead Time

Item #: 9995071-ASSY

$10.93

11 Advantage Wheel Tube Assembly

Extended Manufacturer Lead Time

Item #: 99955953-ASSY

$53.91

27-Opt 1 Timing Track - Gray - Single Track

Extended Manufacturer Lead Time

Item #: 9985006

$34.99

Wave 200/300 Navigation Box

Extended Manufacturer Lead Time

Item #: 9991720-ASSY

$523.07
