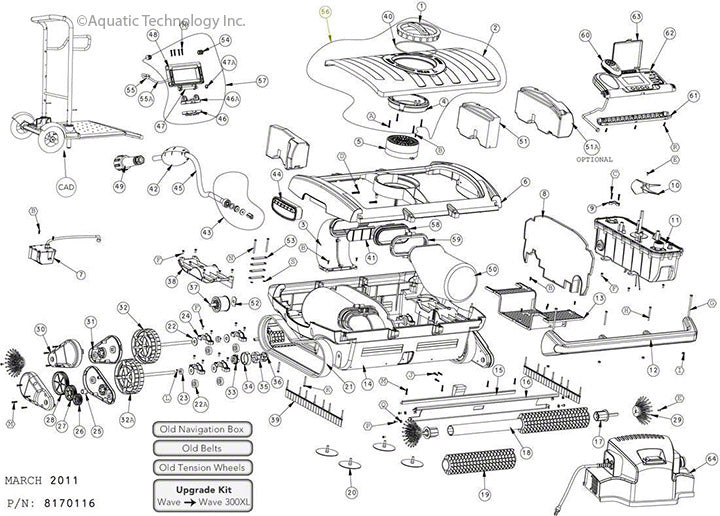

Dolphin Wave XL Pool Cleaner Parts Diagram | 71 parts

Frequently Purchased

	Dolphin Screw KA50X30 - MTIL - 3305030-A 2 in stock	$2.58
	Dolphin Wave Retrofit for Cable Connector - 9991274 Extended Manufacturer Lead Time	$11.26
	Dolphin Screw KA40X10 - WN1412 A2 - MTIL - 3379410-A Extended Manufacturer Lead Time	$2.62
	Wave 300/50M Brush for Side - MTIL - 5590054-ASSY Extended Manufacturer Lead Time	$15.21
	Wave 300/50M Track Tension Wheel - 9991312 Extended Manufacturer Lead Time	$56.60

Any key items not listed on the above schematic are no longer available.

Sort Products:
Key
Popularity

A-C Dolphin Screw KA50X30 - MTIL

2 in stock

Item #: 3305030-A

$2.58

43-Retro-Fit Dolphin Wave Retrofit for Cable Connector

Extended Manufacturer Lead Time

Item #: 9991274

$11.26

A-B Dolphin Screw KA40X10 - WN1412 A2 - MTIL

Extended Manufacturer Lead Time

Item #: 3379410-A

$2.62

29 Wave 300/50M Brush for Side - MTIL

Extended Manufacturer Lead Time

Item #: 5590054-ASSY

$15.21

37 Wave 300/50M Track Tension Wheel

Extended Manufacturer Lead Time

Item #: 9991312

$56.60

14 Wave Main Bottom Body and Bushings

Extended Manufacturer Lead Time

Item #: 9993301

$156.89

49 Wave XL Bulgin Plug - Buccaneer

Extended Manufacturer Lead Time

Item #: 5000033LF

$104.93

A-D Dolphin Screw M4x14 - MTIL

Extended Manufacturer Lead Time

Item #: 3154414-A

$2.18

44 Wave 300/50M Side Handle

Extended Manufacturer Lead Time

Item #: 9980370

$9.78

47A Wave Circle Clip A2 - 8mm

Extended Manufacturer Lead Time

Item #: 3506799

$2.65

51 Wave 300/50M Small Side Float

Extended Manufacturer Lead Time

Item #: 6250937

$11.41

52 Wave 300/50M Double Cut 36mm Washer

Extended Manufacturer Lead Time

Item #: 3500030

$9.50

56 Wave 300/50M Top Cover Assembly

Extended Manufacturer Lead Time

Item #: 99952070-ASSY

$93.92

60 Wave 200/300 Remote Control

Extended Manufacturer Lead Time

Item #: 9995412-ASSY

$128.88

62 Wave Man Machine Interface MMI

Extended Manufacturer Lead Time

Item #: 9995993-ASSY

$540.12

42 Wave 140-300 Cable Float

Extended Manufacturer Lead Time

Item #: 99960087

$13.31

CADDY Wave Pool Cleaner Caddy

Extended Manufacturer Lead Time

Item #: 9996090-ASSY

$1,235.61

64-PS Wave 300XL Power Supply - 115 Volts

Extended Manufacturer Lead Time

Item #: 99956021-ASSY

$1,200.84

1 Wave 300/50M Main Locker

Extended Manufacturer Lead Time

Item #: 9980364

$11.26

2 Wave 300XL Top Cover Outer Casing

Extended Manufacturer Lead Time

Item #: 9980412

$71.70

3 Wave 50M/300 Suction Tube

Extended Manufacturer Lead Time

Item #: 9991012

$11.26

4 Wave 300/50M Locking Adapter

Extended Manufacturer Lead Time

Item #: 9980365

$17.47

5 Wave 300/50M Impeller Tube

Extended Manufacturer Lead Time

Item #: 9980400

$9.70

6 Wave 50M/300 Top Body Plus Bushing

Extended Manufacturer Lead Time

Item #: 9991037-ASSY

$104.93

8 Wave 300/50M Vertical Pariting Net

Extended Manufacturer Lead Time

Item #: 9980396

$9.70

9 Wave 300/50M Omega Cable

Extended Manufacturer Lead Time

Item #: 9980395

$2.10

10 Wave 300 Impeller

Extended Manufacturer Lead Time

Item #: 9985262

$7.76

12 Wave 50M/300 Bumper Assembly

Extended Manufacturer Lead Time

Item #: 9991013

$87.22

13 Wave 300/50M Bottom Net

Extended Manufacturer Lead Time

Item #: 9980397

$10.00

15 Wave 300/50M Arc Stopper - Stainless Steel

Extended Manufacturer Lead Time

Item #: 9980343

$9.70

17 Wave 300/50M Brush Spindle Adapter

Extended Manufacturer Lead Time

Item #: 9980385

$29.96

18 Wave 300/50M PVC Tube for Brush

Extended Manufacturer Lead Time

Item #: 6100917

$18.97

19 Wave - Pe Brush

Extended Manufacturer Lead Time

Item #: 9982410

$13.31

21 Wave 200/300XL Belt T10/980 - Minimum of 2

2 in stock

Item #: 3889201

$282.51

22 Wave 300/50M Acetal Washer

Extended Manufacturer Lead Time

Item #: 9980312

$4.49

23 Wave 140/150/200 Wheel Shaft Ring Stopper

Extended Manufacturer Lead Time

Item #: 5580633

$5.83

24 Wave 300 Bearing Cover

Extended Manufacturer Lead Time

Item #: 9980374

$3.85

25 Wave 300/50M Bushing for Wheel 36

Extended Manufacturer Lead Time

Item #: 5580372

$9.37

26 Wave 300/50M Spurwheel 26

Extended Manufacturer Lead Time

Item #: 9980382

$5.83

27 Wave 300/50M Spurwheel - 36

Extended Manufacturer Lead Time

Item #: 9980383

$5.83

28 Wave 300/50M Spurwheel - 56

Extended Manufacturer Lead Time

Item #: 9980384

$5.83

32 Dolphin Wave Short Shaft Wheel Assembly

Extended Manufacturer Lead Time

Item #: 9995557

$113.38

32A Wave Long Shaft Wheel Assembly

Extended Manufacturer Lead Time

Item #: 9995558

$93.92

33 Wave 300/50M Coupling Adaptor - 10mm

Extended Manufacturer Lead Time

Item #: 9980388

$27.31

34 Wave 300/50M Outer Ring With Pins

Extended Manufacturer Lead Time

Item #: 9980390

$2.10

35 Wave 300/50M PU Adaptor

Extended Manufacturer Lead Time

Item #: 9980391

$3.88

36 Wave 300/50M Coupling Adapter - 8mm

Extended Manufacturer Lead Time

Item #: 9980389

$29.96

38 Wave 50M/300 Track Tension Base

Extended Manufacturer Lead Time

Item #: 9991041-ASSY

$19.39

39 Wave 300/50M Track Side Vacuum Fins

Extended Manufacturer Lead Time

Item #: 9980342

$5.83

41 Wave 300/50M Non-Return Flap for XL Tube

Extended Manufacturer Lead Time

Item #: 9980363

$142.47
