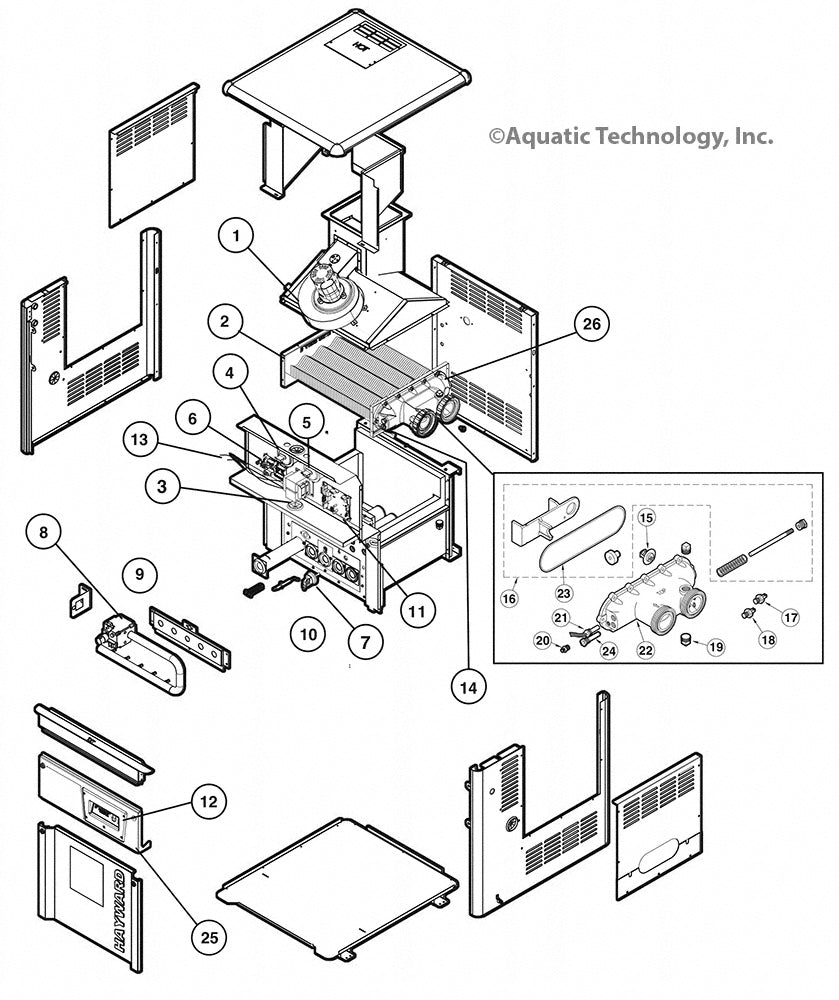

Hayward H-Series Low Nox Heater Parts (H250IDL, H300IDL, H400IDL) Diagram

Hayward H-Series Low Nox Heater Parts (H250IDL, H300IDL, H400IDL)

Frequently Purchased

IDXL2DB1930
 		H- Series IDL2 Low NOx Display Board - IDXL2DB1930
160 in stock
 $395.83
IDXLBWR1930
 		Combustion Blower - 240V - IDXLBWR1930
2 in stock
 $669.17
IDXL2SNT1930
 		H-Series Low NOx Combusion Blower Tube Kit - Silicone Tube 2.5 Foot Service Part - IDXL2SNT1930
55 in stock
 $88.75
IDXLFLS1930
 		Flame Sensor - IDXLFLS1930
270 in stock
 $108.03
IDXL2BVS1930
 		H-Series Low NOx Blower Vacuum Switch - IDXL2BVS1930
7 in stock
 $98.03
Any key items not listed on the above schematic are no longer available.
IDXL2DB1930
12 H- Series IDL2 Low NOx Display Board
160 in stock
Item #: IDXL2DB1930
$395.83
IDXLBWR1930
1 Combustion Blower - 240V
2 in stock
Item #: IDXLBWR1930
$669.17
IDXL2SNT1930
26 H-Series Low NOx Combusion Blower Tube Kit - Silicone Tube 2.5 Foot Service Part
55 in stock
Item #: IDXL2SNT1930
$88.75
IDXLFLS1930
10 Flame Sensor
270 in stock
Item #: IDXLFLS1930
$108.03
IDXL2BVS1930
5 H-Series Low NOx Blower Vacuum Switch
7 in stock
Item #: IDXL2BVS1930
$98.03
IDXL2ICB1931
11 Integrated Control Board
47 in stock
Item #: IDXL2ICB1931
$399.70
IDXLIGN1930
9 H-Series Ignitor for 240 Volt
38 in stock
Item #: IDXLIGN1930
$188.71
HAXHOR1930
23 ED1/ED2 Header O-Ring
15 in stock
Item #: HAXHOR1930
$34.73
IDXL2BKP1930
12 H-Series Low NOx Control Bezel and Keypad Assembly - Post 9/2004
8 in stock
Item #: IDXL2BKP1930
$378.74
HAXPSA1930
7 H-Series ED1/ED2 Pressure Switch Assembly
94 in stock
Item #: HAXPSA1930
$110.32
IDXLCPA1930
12 H-Series Low NOx Control Bezel Assembly
3 in stock
Item #: IDXLCPA1930
$767.79
IDXL2FSB1930
6 H-Series Fuse Board
6 in stock
Item #: IDXL2FSB1930
$398.05
HAXBPK1932
16 ED1/ED2 Bypass Valve Kit - Post 10/28/2000
10 in stock
Item #: HAXBPK1932
$110.59
IDXLBVS1930
5 H-Series Low NOx Blower Vacuum Switch
15 in stock
Item #: IDXLBVS1930
$97.73
IDXLTER1930
21 H-Series IDL/ED2 Thermistor
Allow 3-6 Months to Ship
Item #: IDXLTER1930
$168.76
More Info
IDXLFHA1930
26 H-Series Low NOx and Ed2 Front Header Assembly
14 in stock
Item #: IDXLFHA1930
$428.42
IDXLVPS1930
4 H-Series Low NOx Vent Pressure Switch
6 in stock
Item #: IDXLVPS1930
$131.70
IDXL2VPS1930
4 H-Series Low NOx Vent Pressure Switch - Post 9/2004
12 in stock
Item #: IDXL2VPS1930
$125.14
IDXL2TRF1930
3 IDL2 Transformer 240 Volts - Post 9/2004
60 in stock
Item #: IDXL2TRF1930
$173.03
CHXPSA1930
20 H-Series Heater Pressure Switch Adapter
7 in stock
Item #: CHXPSA1930
$42.64
HAXFCT1930
15 H-Series Flow Control Thermostat
17 in stock
Item #: HAXFCT1930
$96.30
IDXLBWR1931
1 Combustion Blower - 120V
4 in stock
Item #: IDXLBWR1931
$650.89
IHXTRF1930
3 IDL2 Transformer - 240 Volts - Pre 9/2004
Allow 3-6 Months to Ship
Item #: IHXTRF1930
$137.86
More Info
IDXL2BKP1931
12 H-Series Bezel and Keypad Assembly for Californian Pool & Spa Heaters
Allow 3-6 Months to Ship
Item #: IDXL2BKP1931
$378.56
More Info
HAXHLI1930
17 H-Series Hi-Limit 135 Degrees F
33 in stock
Item #: HAXHLI1930
$76.49
HMXHLI2932
18 H-Series Hi-Limit Immersion Rear Header 160 Degrees F.
24 in stock
Item #: HMXHLI2932
$76.49
IDXL2BWR1931
1 H-Series 120V Combustion Blower - After 9/20/04
5 in stock
Item #: IDXL2BWR1931
$681.59
HAXTBW1930
24 H-Series Cotherm Thermostat Bulb Well
6 in stock
Item #: HAXTBW1930
$64.65
HAXWHA0006
14 H-Series Millivolt ED1 Rear Wire Harness Hi-Limits
Allow 3-6 Months to Ship
Item #: HAXWHA0006
$244.57
More Info
HAXFHD1931
22 Front Header Only after 10/28/00
12 in stock
Item #: HAXFHD1931
$234.26
IDXL2IGN1930
9 H-Series Silicone Nitride Ignitor - Post 9/2004
60 in stock
Item #: IDXL2IGN1930
$141.60
IDXLIGN1931
9 H-Series Ignitor for 120 Volt
2 in stock
Item #: IDXLIGN1931
$172.73
HAXDRV1930
19 H-Series Drain Valve Assembly
10 in stock
Item #: HAXDRV1930
$108.03
