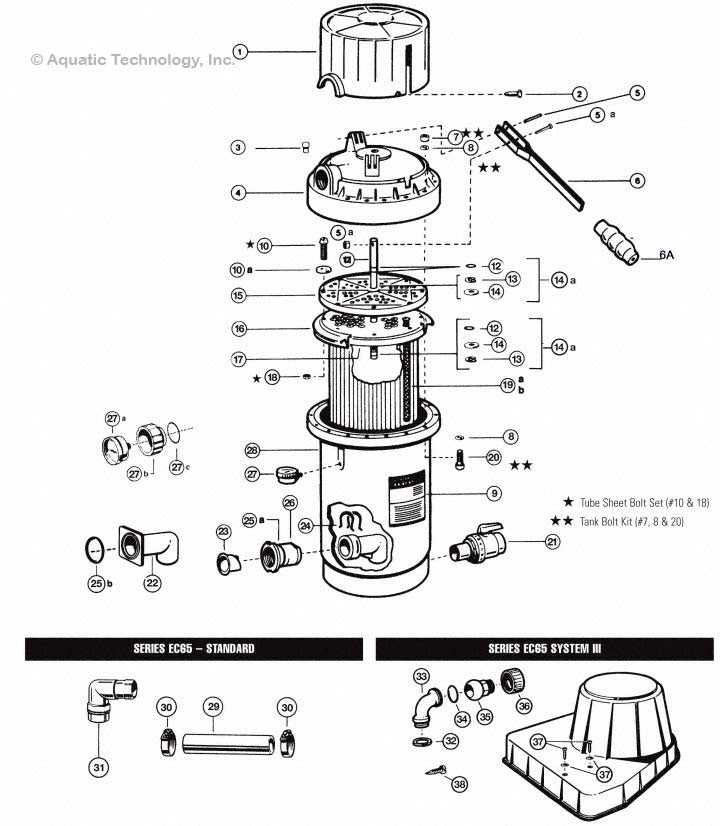

Hayward Perflex Filter EC65-75 Parts Diagram | 46 parts

Hayward Perflex Filter EC65-75 Parts

Frequently Purchased

ECX1031
 		Perflex Flex Tube - 13-3/8 Inches - ECX1031
942 in stock
 $14.77
SPX1500NYA
 		Perflex Tube Sheet Bolt Set - SPX1500NYA
775 in stock
 $9.62
ECX1032
 		Perflex Flex Tube - 16-1/4 Inches - ECX1032
540 in stock
 $17.69
SPX1500N1
 		Perflex Tube Sheet Screw - SPX1500N1
371 in stock
 $5.97
ECX1014A
 		Perflex DE Filter Shaft Kit - ECX1014A
525 in stock
 $35.65
Any key items not listed on the above schematic are no longer available.
ECX1031
19a Perflex Flex Tube - 13-3/8 Inches
942 in stock
Item #: ECX1031
$14.77
SPX1500NYA
Includes #10&18 Perflex Tube Sheet Bolt Set
775 in stock
Item #: SPX1500NYA
$9.62
ECX1032
19b Perflex Flex Tube - 16-1/4 Inches
540 in stock
Item #: ECX1032
$17.69
SPX1500N1
10 Perflex Tube Sheet Screw
371 in stock
Item #: SPX1500N1
$5.97
ECX1014A
14a Perflex DE Filter Shaft Kit
525 in stock
Item #: ECX1014A
$35.65
SPX1500Y1
18 Perflex EC65/70 Tube Sheet Nut
7 in stock
Item #: SPX1500Y1
$4.48
ECX11194AT
4 Filter Head With New Vent Valve EC65/75 - Taupe
72 in stock
Item #: ECX11194AT
$373.90
SPX1105Z4
31 S190-S240 Filter Elbow Hose Adapter - 1-1/2 MPT x 1-1/2 Inch
646 in stock
Item #: SPX1105Z4
$14.91
ECX1642A
7 Perflex/S200 Filter Tank Bolt Set
634 in stock
Item #: ECX1642A
$15.14
AQPG-117
27a 0 to 60 PSI Pressure Gauge - 1/4 Inch Back Mount - 2 Inch Face - Plastic Case
3 in stock
Item #: AQPG-117
$12.88
ECX1251
Flex Nest EC65 Flex-Tube Nest
83 in stock
Item #: ECX1251
$1,109.32
ECX1103
17 Top and Bottom Tube Sheet Set - EC65/75
216 in stock
Item #: ECX1103
$137.35
ECX4077B1
23 Perflex/Regenx Filter Check Valve
964 in stock
Item #: ECX4077B1
$43.91
ECX1322A
3 StarClear Directional Vent Valve With O-Ring
509 in stock
Item #: ECX1322A
$22.40
ECX1040
6 Perflex Bump Handle Assembly - Pin, Shoulder Screw, Nut
199 in stock
Item #: ECX1040
$86.97
ECX1077
8 Flat Washer - 1/4 Inch x 1-1/16 Inch OD
57 in stock
Item #: ECX1077
$2.87
SP0723
21 Trimline 2-Way ABS Ball Valve - 1-1/2 Inch MIP x 1-1/2 Inch FIP Threaded
3453 in stock
Item #: SP0723
$65.44
ECX4220A
22 EC65/75 Elbow Assembly With Check Valve
73 in stock
Item #: ECX4220A
$101.11
ECX18028
30 Hose Clamp 1-1/2 Inch
170 in stock
Item #: ECX18028
$10.39
ECX1110
11 EC65/75 Bump Shaft
104 in stock
Item #: ECX1110
$98.32
SPX1485A
35 EC65 Ball End Connector
83 in stock
Item #: SPX1485A
$42.25
ECX2712B1
27 SwimClear Pressure Gauge With Dial - 0-60 PSI - 1/4 Inch Back Mount
782 in stock
Item #: ECX2712B1
$54.48
ECX4236A
5a Perflex Bump Handle Screw Kit
108 in stock
Item #: ECX4236A
$12.70
ECX1641125
10a Perflex #10 Standard Washer
342 in stock
Item #: ECX1641125
$2.28
ECX4201CA
26 EC65/75 Inlet Fitting With ECX4077B1 Check Valve
22 in stock
Item #: ECX4201CA
$106.66
ECX27071
29 EC60/EC40F Clear Hose - 1-9/16 Inch I.D.
20 in stock
Item #: ECX27071
$54.77
SPX1485B
33 EC65 Pump Discharge Elbow
237 in stock
Item #: SPX1485B
$51.66
ECX1161Z2
37 C850/C1250 EC65 Base Screw Set
54 in stock
Item #: ECX1161Z2
$18.82
SPX1600Z52
38 Super II Mounting Foot Cap Screw - Set of 2
32 in stock
Item #: SPX1600Z52
$5.99
ECX1014
13 Perflex Retainer Clip - Pack of 2
276 in stock
Item #: ECX1014
$17.09
SPX1485G
32 Pro Series S200-S240 Compression Gasket
68 in stock
Item #: SPX1485G
$10.03
ECX12866
27b Perflex Gauge Port Adapter
215 in stock
Item #: ECX12866
$47.62
ECX1263
Base Perflex System Elevated Platform Base
1 in stock
Item #: ECX1263
$342.57
ECX11206
1 EC65/75 Bump Mechanism Cover
17 in stock
Item #: ECX11206
$122.97
ECX1011
14 EC64/75 Thrust Washer
134 in stock
Item #: ECX1011
$7.28
ECX100Z9
5 Perflex Long Pivot Pin
25 in stock
Item #: ECX100Z9
$10.39
ECX1642215
20 S160T/S200 Hex Head Bolt - 1/4-20 x 1-3/4 Inch
80 in stock
Item #: ECX1642215
$8.75
ECX4212A
24 EC65/75 Retainer Clip - 1989 and Prior
11 in stock
Item #: ECX4212A
$26.14
ECX125175
Flex Nest EC75 Flex-Tube Nest
33 in stock
Item #: ECX125175
$1,300.33
SPX1480C
36 EC65 Union Nut
136 in stock
Item #: SPX1480C
$26.47
APCO2454
12 Generic Filter Shaft O-Ring for EC65/EC75, 9003009, R172221, 355050114
5 in stock
Item #: APCO2454
$1.22
APCG3276
16 Generic Filter Diaphragm Gasket for EC65/75
6 in stock
Item #: APCG3276
$50.94
APCO2314
25a Generic Filter and Fitting O-Ring for SP1425, U9-226, 47-0226-03-R, 390040
10 in stock
Item #: APCO2314
$2.13
APCO2393
25b Generic Strainer Cover O-Ring for SP1500/1580 and SP1700
17 in stock
Item #: APCO2393
$13.87
APCO2257
27c Generic Filter Gauge Adapter O-Ring for EC50/EC50A to EC75/EC75A
28 in stock
Item #: APCO2257
$9.35
APCO2168
32 Generic Filter Elbow Union O-Ring for EC65-75 and SP1480-85 - Pre 1987
10 in stock
Item #: APCO2168
$10.74
