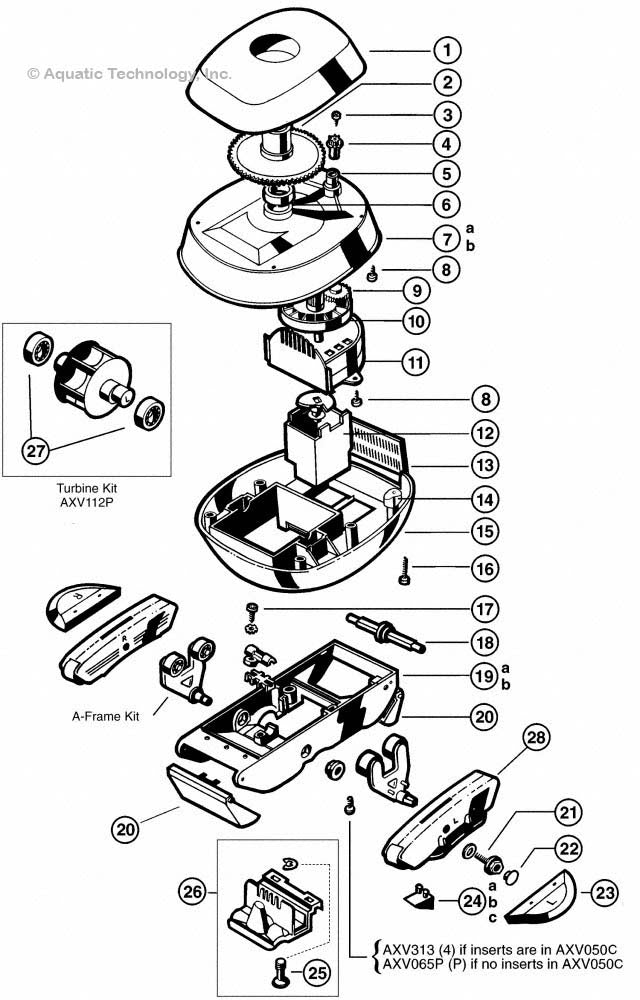

Hayward Pool Vac Concrete And Desert Parts Diagram | 26 parts

Hayward Pool Vac Concrete And Desert Parts

Frequently Purchased

AXV604WHP
 		PoolVac Wing Kit - White - AXV604WHP
35 in stock
 $29.51
AXV434WHP
 		PoolVac XL Flap Kit - White - AXV434WHP
17 in stock
 $51.92
AXV417WHP
 		Pool Cleaner Pod Kit - White - AXV417WHP
10 in stock
 $84.46
AXV092
 		PoolVac/Navigator Hose Connector PV/PM - AXV092
58 in stock
 $19.56
AXV408P
 		PoolVac XL Gear Box Assembly - 304 Stainless Steel - AXV408P
36 in stock
 $47.57
Any key items not listed on the above schematic are no longer available.
AXV604WHP
23 PoolVac Wing Kit - White
35 in stock
Item #: AXV604WHP
$29.51
AXV434WHP
20 PoolVac XL Flap Kit - White
17 in stock
Item #: AXV434WHP
$51.92
AXV417WHP
28 Pool Cleaner Pod Kit - White
10 in stock
Item #: AXV417WHP
$84.46
AXV092
Not Shown PoolVac/Navigator Hose Connector PV/PM
58 in stock
Item #: AXV092
$19.56
AXV408P
12 PoolVac XL Gear Box Assembly - 304 Stainless Steel
36 in stock
Item #: AXV408P
$47.57
AXV055P
27 Pool Vac/Navigator Main Turbine Bearings - Pack of 2
5 in stock
Item #: AXV055P
$34.28
AXV621DAT
Not Shown PoolVac/Navigator Universal A-Frame/Turbine Kit
210 in stock
Item #: AXV621DAT
$101.39
AXV093CP
Not Shown Skimmer Adapter Cone
3 in stock
Item #: AXV093CP
$29.42
AXV014SP
24c Navigator/Aquabug Slotted Santoprene Shoe Kit - Pack of 4
14 in stock
Item #: AXV014SP
$40.07
AXV066A
5 PoolVac XL Spindle Gear Bushing
10 in stock
Item #: AXV066A
$29.48
AXV230DWH
19a PoolVac Open Lower Body - White
6 in stock
Item #: AXV230DWH
$79.42
AXV064A
9 Navigator/PoolVac Medium Drive Gear for Turbine
11 in stock
Item #: AXV064A
$29.67
AXV314P
25 Navigator/PoolVac Captive Screw With Retaining Clip
10 in stock
Item #: AXV314P
$8.63
AXV060WH
7b Navigator Upper Middle Body - White
Allow 3-6 Months to Ship
Item #: AXV060WH
$135.51
More Info
AXV070
2 Navigator/PoolVac Cone Gear - Clear
21 in stock
Item #: AXV070
$129.97
AXV031B
18 Pool Vac/Navigator Flap Adjuster - Turcite A
7 in stock
Item #: AXV031B
$26.78
AXV112P
Not Shown Turbine Kit for Aboveground PoolVac and Navigator
Allow 3-6 Months to Ship
Item #: AXV112P
$81.20
More Info
AXV050CWH
15 HWD Pool Vac Lower Mid Body - White
3 in stock
Item #: AXV050CWH
$125.49
AXV062C
10 Navigator/PoolVac Medium Turbine - Turcite A
2 in stock
Item #: AXV062C
$43.66
AXV014P
24a Concrete Pool Vac Pod Shoes - Pack of 4
6 in stock
Item #: AXV014P
$40.07
AXV014CP
24b Navigator Ceramic Pod Shoe - Pack of 4
Allow 3-6 Months to Ship
Item #: AXV014CP
$53.42
More Info
AXV009
11 Medium Turbine Case/Axle Assembly
3 in stock
Item #: AXV009
$85.08
AXV068
3 Navigator/PoolVac Spindle Gear Screw
9 in stock
Item #: AXV068
$4.67
AXV065P
8 Navigator/PoolVac Upper Body Screws - Pack of 6
13 in stock
Item #: AXV065P
$21.36
AXV313
17 PoolVac XL Lower Body Screw - M5 x 10mm
1 in stock
Item #: AXV313
$17.57
AXV030ALG
19b Pool Vac/Aquadroid Fixed Throat Lower Body
3 in stock
Item #: AXV030ALG
$79.44
