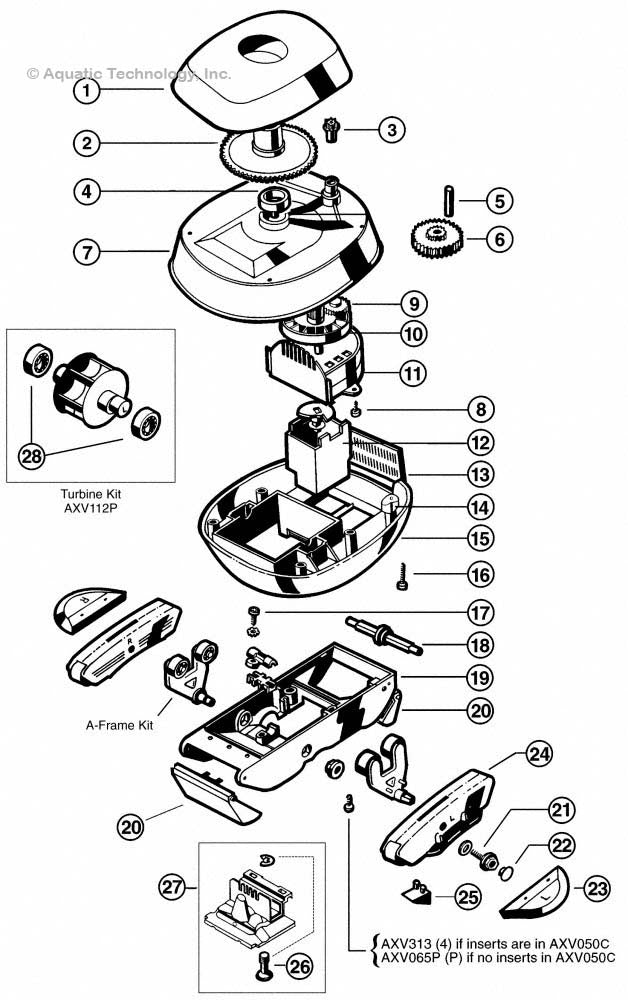

Hayward Pool Vac Vinyl Cleaner Parts Diagram | 30 parts

Hayward Pool Vac Vinyl Cleaner Parts

Frequently Purchased

AXV604WHP
 		PoolVac Wing Kit - White - AXV604WHP
35 in stock
 $29.51
AXV434WHP
 		PoolVac XL Flap Kit - White - AXV434WHP
17 in stock
 $51.92
AXV417WHP
 		Pool Cleaner Pod Kit - White - AXV417WHP
10 in stock
 $84.46
AXV051AWH
 		PoolVac Screen - White - AXV051AWH
2 in stock
 $18.85
AXV092
 		PoolVac/Navigator Hose Connector PV/PM - AXV092
58 in stock
 $19.56
Any key items not listed on the above schematic are no longer available.
AXV604WHP
23 PoolVac Wing Kit - White
35 in stock
Item #: AXV604WHP
$29.51
AXV434WHP
20 PoolVac XL Flap Kit - White
17 in stock
Item #: AXV434WHP
$51.92
AXV417WHP
24 Pool Cleaner Pod Kit - White
10 in stock
Item #: AXV417WHP
$84.46
AXV051AWH
13 PoolVac Screen - White
2 in stock
Item #: AXV051AWH
$18.85
AXV092
Not Shown PoolVac/Navigator Hose Connector PV/PM
58 in stock
Item #: AXV092
$19.56
AXV408P
12 PoolVac XL Gear Box Assembly - 304 Stainless Steel
36 in stock
Item #: AXV408P
$47.57
AXV621DAT
Not Shown PoolVac/Navigator Universal A-Frame/Turbine Kit
210 in stock
Item #: AXV621DAT
$101.39
AXV055P
28 Pool Vac/Navigator Main Turbine Bearings - Pack of 2
5 in stock
Item #: AXV055P
$34.28
AXV303
3 PoolVac XL Cone Spindle Gear
2 in stock
Item #: AXV303
$24.89
AXV066A
Not Shown PoolVac XL Spindle Gear Bushing
10 in stock
Item #: AXV066A
$29.48
AXV301
6 PoolVac XL Intermmediate Gear
47 in stock
Item #: AXV301
$25.05
AXV060WH
7 Navigator Upper Middle Body - White
Allow 3-6 Months to Ship
Item #: AXV060WH
$135.51
More Info
AXV230DWH
19 PoolVac Open Lower Body - White
6 in stock
Item #: AXV230DWH
$79.42
AXV314P
26 Navigator/PoolVac Captive Screw With Retaining Clip
10 in stock
Item #: AXV314P
$8.63
AXV079VP
Not Shown PoolVac/Navigator Medium Turbine Spindle Gear Kit
6 in stock
Item #: AXV079VP
$83.59
AXV064A
9 Navigator/PoolVac Medium Drive Gear for Turbine
11 in stock
Item #: AXV064A
$29.67
AXV050CWH
15 HWD Pool Vac Lower Mid Body - White
3 in stock
Item #: AXV050CWH
$125.49
AXV031B
18 Pool Vac/Navigator Flap Adjuster - Turcite A
7 in stock
Item #: AXV031B
$26.78
AXV306
4 PoolVac XL Cone Gear Bushing
41 in stock
Item #: AXV306
$25.55
AXV112P
Not Shown Turbine Kit for Aboveground PoolVac and Navigator
Allow 3-6 Months to Ship
Item #: AXV112P
$81.20
More Info
AXV621D
Not Shown PoolVac Classic A-Frame Kit
2 in stock
Item #: AXV621D
$78.08
AXV070
2 Navigator/PoolVac Cone Gear - Clear
21 in stock
Item #: AXV070
$129.97
AXV062C
10 Navigator/PoolVac Medium Turbine - Turcite A
2 in stock
Item #: AXV062C
$43.66
AXV014FNP
25 Vinyl Pool Vac/Aquadroid Cork Shoe Kit - Pack of 4
48 in stock
Item #: AXV014FNP
$40.40
AXV065P
8 Navigator/PoolVac Upper Body Screws - Pack of 6
13 in stock
Item #: AXV065P
$21.36
AXV068
Not Shown Navigator/PoolVac Spindle Gear Screw
9 in stock
Item #: AXV068
$4.67
AXV304A
Not Shown Aquabug Bottom Plate
Allow 3-6 Months to Ship
Item #: AXV304A
$55.83
More Info
AXV309
5 PoolVac XL Intermediate Gear Shaft
8 in stock
Item #: AXV309
$5.66
AXV009
11 Medium Turbine Case/Axle Assembly
3 in stock
Item #: AXV009
$85.08
AXV313
17 PoolVac XL Lower Body Screw - M5 x 10mm
1 in stock
Item #: AXV313
$17.57
