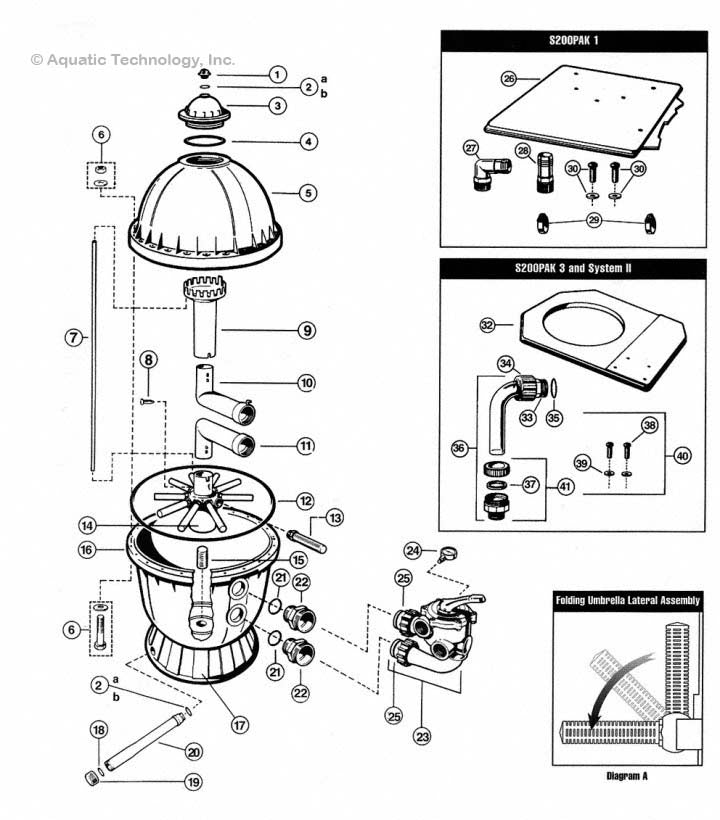

Hayward S200 Sand Filter Parts Diagram | 37 parts

Hayward S200 Sand Filter Parts

Frequently Purchased

SX200Z3
 		Super StarClear Filter Bulkhead O-Ring - SX200Z3
Allow 7-10 Days to Ship
 $11.03
AQPG-116
 		0 to 60 PSI Pressure Gauge - 1/4 Inch Bottom Mount - 2 Inch Face - Poly Case - AQPG-116
4 in stock
 $11.60
SPX1105Z4
 		S190-S240 Filter Elbow Hose Adapter - 1-1/2 MPT x 1-1/2 Inch - SPX1105Z4
Allow 3-6 Months to Ship
 $14.65
ECX1642A
 		Perflex/S200 Filter Tank Bolt Set - ECX1642A
Allow 3-6 Months to Ship
 $14.89
SX200Z8A
 		Pro Series Drain Cap Kit - SX200Z8A
Allow 3-6 Months to Ship
 $12.06
Any key items not listed on the above schematic are no longer available.
SX200Z3
21 Super StarClear Filter Bulkhead O-Ring
Allow 7-10 Days to Ship
Item #: SX200Z3
$11.03
More Info
AQPG-116
24 0 to 60 PSI Pressure Gauge - 1/4 Inch Bottom Mount - 2 Inch Face - Poly Case
4 in stock
Item #: AQPG-116
$11.60
SPX1105Z4
27 S190-S240 Filter Elbow Hose Adapter - 1-1/2 MPT x 1-1/2 Inch
Allow 3-6 Months to Ship
Item #: SPX1105Z4
$14.65
More Info
ECX1642A
6 Perflex/S200 Filter Tank Bolt Set
Allow 3-6 Months to Ship
Item #: ECX1642A
$14.89
More Info
SX200Z8A
19 Pro Series Drain Cap Kit
Allow 3-6 Months to Ship
Item #: SX200Z8A
$12.06
More Info
SX200G
1 Pro Series Manual Air Relief Valve
Allow 3-6 Months to Ship
Item #: SX200G
$17.07
More Info
SPX0710X32
23 Vari-Flo Multiport 6-Position Control Valve - Replacement 1-1/2 Inch Side Mount (Sand S200-S240)
Allow 3-6 Months to Ship
Item #: SPX0710X32
$332.81
More Info
ECX18028
29 Hose Clamp 1-1/2 Inch
Allow 3-6 Months to Ship
Item #: ECX18028
$10.21
More Info
SX200QN
13 Pro Series Threaded Lateral - New Pivot Style
Allow 3-6 Months to Ship
Item #: SX200QN
$13.51
More Info
SX200D
22 S200/S240 Bulkhead Fitting
Allow 3-6 Months to Ship
Item #: SX200D
$55.01
More Info
S200KT
Tool Dome Tool
Allow 3-6 Months to Ship
Item #: S200KT
$39.55
More Info
SX200K
3 S200/S240 Access Dome Cover
Allow 3-6 Months to Ship
Item #: SX200K
$98.83
More Info
ECX1161Z2
30 C850/C1250 EC65 Base Screw Set
Allow 3-6 Months to Ship
Item #: ECX1161Z2
$18.49
More Info
SX200BT
5 S200 Filter Head - Taupe
Allow 3-6 Months to Ship
Item #: SX200BT
$559.28
More Info
SX200L
9 S200/S240 Top Diffuser
Allow 3-6 Months to Ship
Item #: SX200L
$80.37
More Info
SPX1485G
37 Pro Series S200-S240 Compression Gasket
Allow 3-5 Weeks to Ship
Item #: SPX1485G
$9.85
More Info
SX200C
10 S200 Elbow Pipe Internal
Allow 3-6 Months to Ship
Item #: SX200C
$76.15
More Info
SX200AA1T
16 S200 Filter Tank Bottom With Drain - Taupe
Allow 3-6 Months to Ship
Item #: SX200AA1T
$863.43
More Info
SPX1485DA
40 S220/S240 Compression Fitting With Gasket
Allow 3-6 Months to Ship
Item #: SPX1485DA
$55.14
More Info
SX200Z1
7 S200/S310 Air Tube
Allow 3-6 Months to Ship
Item #: SX200Z1
$38.31
More Info
SX202QA
14 S200 Lateral Assembly
Allow 3-6 Months to Ship
Item #: SX202QA
$156.17
More Info
SX200EB
20 Pro Series Drain Pipe Assembly
Allow 3-6 Months to Ship
Item #: SX200EB
$54.08
More Info
SX200Z2
8 Pro Series Air Tube Lock Screw
Allow 3-6 Months to Ship
Item #: SX200Z2
$4.30
More Info
SX200H
15 Bottom Drain Replacement Screen (2005 and Prior)
Allow 3-6 Months to Ship
Item #: SX200H
$14.08
More Info
SX200J
17 Pro Series Filter Stand Support
Allow 3-6 Months to Ship
Item #: SX200J
$146.59
More Info
ECX1291
32 S200 Pump/Filter Mounting Base
Allow 3-6 Months to Ship
Item #: ECX1291
$306.48
More Info
SPX1480A
33 System 2 Union Ball End Connector
Allow 3-6 Months to Ship
Item #: SPX1480A
$26.47
More Info
SPX1480C
34 EC65 Union Nut
Allow 3-6 Months to Ship
Item #: SPX1480C
$26.01
More Info
SPX1485B3
36 Union Elbow With O-Ring for S200 Filters
Allow 3-6 Months to Ship
Item #: SPX1485B3
$97.85
More Info
ECX1109
39 Filter Mounting Washer
Allow 3-6 Months to Ship
Item #: ECX1109
$5.26
More Info
APCO2442
2 Generic Air Relief Valve or Drain Pipe O-Ring for SPX0603Z2, SPX0605Z2, S210S-S310S
68 in stock
Item #: APCO2442
$2.12
APCO2112
4 Generic Filter Dome Lid O-Ring for S160T-S240, 47666302R, C2097, 275333
344 in stock
Item #: APCO2112
$5.16
APCO2006
12 Generic Filter Tank O-Ring for S200
7 in stock
Item #: APCO2006
$19.79
APCG3095
18 Generic Drain Cap or Site Glass Gasket for S200-S245T and SP0710-SP0716
4 in stock
Item #: APCG3095
$3.79
APCO2263
21 Generic Flush 2 Inch Union O-Ring for SX200Z3, 072560, GLX-Union-Oring
19 in stock
Item #: APCO2263
$3.02
APCO2334
25 Generic Multiport Valve O-Ring SP0410X, SP0740DE, 43309103R, U9205
12 in stock
Item #: APCO2334
$2.12
APCO2314
35 Generic Filter and Fitting O-Ring for SP1425, U9-226, 47-0226-03-R, 390040
10 in stock
Item #: APCO2314
$2.12
