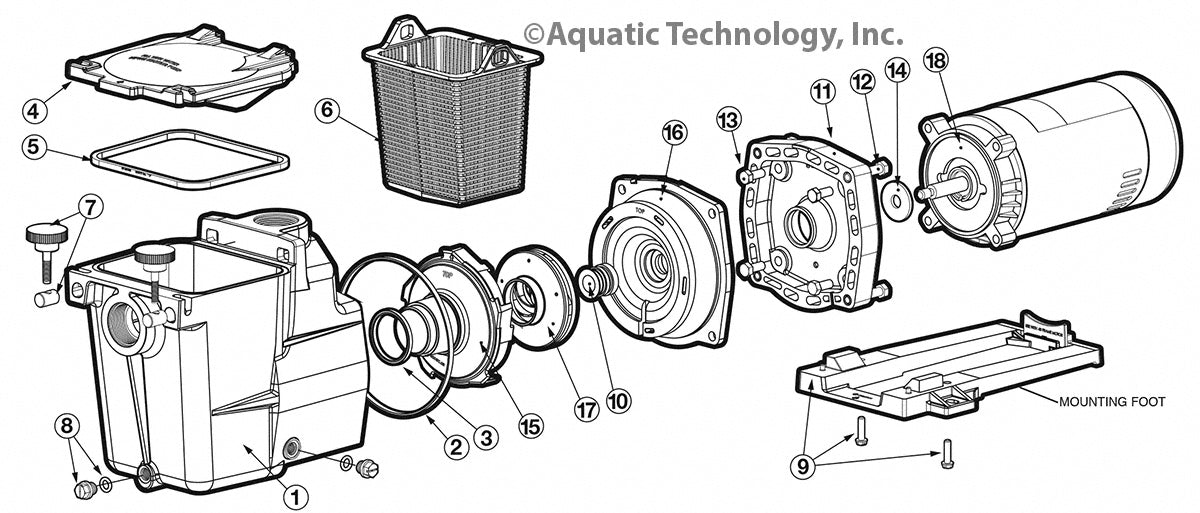

Hayward Super Pump SP1600X Pump Parts Diagram | 40 parts

Hayward Super Pump SP1600X Pump Parts

Frequently Purchased

SPX1700FG
 		Super Pump/MaxFlo Drain Plug With Gasket - SPX1700FG
Allow 3-6 Months to Ship
 $11.21
SPX1607Z1M
 		1 HP Pump Motor - 1-Speed 115/230 Volts 60 Hz - Max-Rated - SPX1607Z1M
5 in stock
 $407.34
R38016
 		Pentair Pump Strainer Basket for Hayward Super Pump - R38016
14 in stock
 $20.70
SPX1600M
 		Hayward Super Pump Basket - SPX1600M
14 in stock
 $33.45
APCKIT3
 		Generic Pump Repair Kit with Seals for SP1600 - APCKIT3
2 in stock
 $22.86
Any key items not listed on the above schematic are no longer available.
SPX1700FG
8 Super Pump/MaxFlo Drain Plug With Gasket
Allow 3-6 Months to Ship
Item #: SPX1700FG
$11.21
More Info
SPX1607Z1M
18c 1 HP Pump Motor - 1-Speed 115/230 Volts 60 Hz - Max-Rated
5 in stock
Item #: SPX1607Z1M
$407.34
R38016
6 Pentair Pump Strainer Basket for Hayward Super Pump
14 in stock
Item #: R38016
$20.70
SPX1600M
6 Hayward Super Pump Basket
14 in stock
Item #: SPX1600M
$33.45
APCKIT3
Overhaul Kit Generic Pump Repair Kit with Seals for SP1600
2 in stock
Item #: APCKIT3
$22.86
SPXHKit3
Overhaul Kit Super Pump Overhaul Quick Fix H-Kit
Allow 3-6 Months to Ship
Item #: SPXHKit3
$64.64
More Info
SPX1600D
4 Super Pump Strainer Cover- Clear
Allow 3-6 Months to Ship
Item #: SPX1600D
$111.10
More Info
SPX1600PN
7 Super Pump/Super II Swivel Nut and Hand Knob
Allow 3-6 Months to Ship
Item #: SPX1600PN
$37.81
More Info
SPX1600V
8 Super II Drain Plug - 1/4 Inch - Pre-1992
3 in stock
Item #: SPX1600V
$1.99
SPX1600Z4
12 Super Pump/MaxFlo Pump Housing Cap Screw - 2 Inch
Allow 3-6 Months to Ship
Item #: SPX1600Z4
$12.39
More Info
SPX0125Z44
13 NorthStar/Super II Motor Cap Screws - Set of 4
Allow 3-6 Months to Ship
Item #: SPX0125Z44
$22.31
More Info
SPX1600Z52
9 Super II Mounting Foot Cap Screw - Set of 2
1 in stock
Item #: SPX1600Z52
$5.99
SPX1600Z1M
18 1/2 HP Pump Motor 48Y Square Flange - 1-Speed 115/230 Volts 60 Hz - Max-Rated - Almond
Allow 3-6 Months to Ship
Item #: SPX1600Z1M
$413.28
More Info
UST1152
18d 1-1/2 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Up-Rated
Allow 10-14 Days to Ship
Item #: UST1152
$305.35
More Info
SPX1620AA
1 Super Pump Housing Strainer - 2 x 2 Inch
Allow 3-6 Months to Ship
Item #: SPX1620AA
$408.89
More Info
SPX1611E5
16 Super Pump Seal Plate
Allow 3-6 Months to Ship
Item #: SPX1611E5
$105.93
More Info
UST1102
18c 1 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Up-Rated
Allow 10-14 Days to Ship
Item #: UST1102
$278.06
More Info
SPX1615Z1M
18e 2 HP Pump Motor 56J C-Face - 1-Speed 115/208-230 Volts - Max-Rated
3 in stock
Item #: SPX1615Z1M
$582.89
SPX2600G1
9 MaxFlo Pump Mounting Foot
Allow 3-6 Months to Ship
Item #: SPX2600G1
$41.31
More Info
SPX1600F5
11 Super Pump/MaxFlo Motor Mounting Plate
Allow 3-6 Months to Ship
Item #: SPX1600F5
$87.41
More Info
SPX1621C
17 Super Pump Impeller - 2 HP Full-Rated and 2-1/2 HP Up-Rated
Allow 3-6 Months to Ship
Item #: SPX1621C
$102.08
More Info
SPX2610CKit
Super Pump 1-1/2 HP Drive Train Upgrade Kit
Allow 3-6 Months to Ship
Item #: SPX2610CKit
$248.33
More Info
UST1072
18b 3/4 HP Pump Motor 56J Frame Threaded Shaft - 1-Phase 115/230 Volts 60 Hz- Up-Rated
Allow 10-14 Days to Ship
Item #: UST1072
$259.91
More Info
UST1202
18e 2 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Up-Rated
Allow 10-14 Days to Ship
Item #: UST1202
$401.76
More Info
SPX2607CKit
1 HP Drive Train Upgrade for Super Pump SP1600X
Allow 3-6 Months to Ship
Item #: SPX2607CKit
$254.45
More Info
UQC1152
18d 1-1/2 HP Pump Motor 48Y Frame - 1-Speed 1-Phase 115/230 Volts - Up-Rated - Energy Efficient
Allow 10-14 Days to Ship
Item #: UQC1152
$351.63
More Info
SP1600TAP
MaxFlo/Super Pump Housing Repair Tap Set Kit
Allow 3-6 Months to Ship
Item #: SP1600TAP
$56.57
More Info
SPX1620Z1M
18f 2-1/2 HP Pump 56J C-Face - 1-Speed 230 Volts 60 Hz - Max-Rated - Almond
Allow 3-6 Months to Ship
Item #: SPX1620Z1M
$714.13
More Info
EUST1252
18f 2-1/2 HP Pump Motor 56J Frame Threaded Shaft - 1-Speed 208-230 Volts - Up-Rated
Allow 10-14 Days to Ship
Item #: EUST1252
$457.88
More Info
SPX2600CKit
Super Pump 1/2 HP Drive Train Upgrade Kit
Allow 3-6 Months to Ship
Item #: SPX2600CKit
$251.62
More Info
SPX2605CKit
Super Pump 3/4 HP Drive Train Upgrade Kit
Allow 3-6 Months to Ship
Item #: SPX2605CKit
$252.11
More Info
SPX2615CKit
Super Pump 2 HP Drive Train Upgrade Kit
Allow 3-6 Months to Ship
Item #: SPX2615CKit
$262.33
More Info
APCG3426
2 Generic Pump Housing Gasket for SP1600X/SP2600X, SP1800X/SP2800X
21 in stock
Item #: APCG3426
$2.63
APCO2021
3 Generic Pump Diffuser O-Ring for SP1600X
32 in stock
Item #: APCO2021
$2.12
APCO2036
5 Generic Pump Lid Gasket for SP1600X
285 in stock
Item #: APCO2036
$4.87
APCAS201
10 Generic Pump Seal Assembly for SPX1600Z2, U9358, 374070009
318 in stock
Item #: APCAS201
$3.99
APCG3400
14 Generic Slinger Motor Shaft Gasket for SP1600X/SP2600X and SP3000/SP3000X
25 in stock
Item #: APCG3400
$4.07
AQPR0101
Generic Seal Assembly Kit for SP1600 Pumps
14 in stock
Item #: AQPR0101
$19.75
EVC130
18c 1.30/1.30 HP VGreen Pump Motor 56J Frame C-Face - 115/230 Volts - TEFC
Allow 10-14 Days to Ship
Item #: EVC130
$565.11
More Info
EVC165
18 1.65/1.50 HP VGreen Pump Motor 56J Frame C-Face - 115/230 Volts - TEFC
Allow 10-14 Days to Ship
Item #: EVC165
$624.32
More Info
