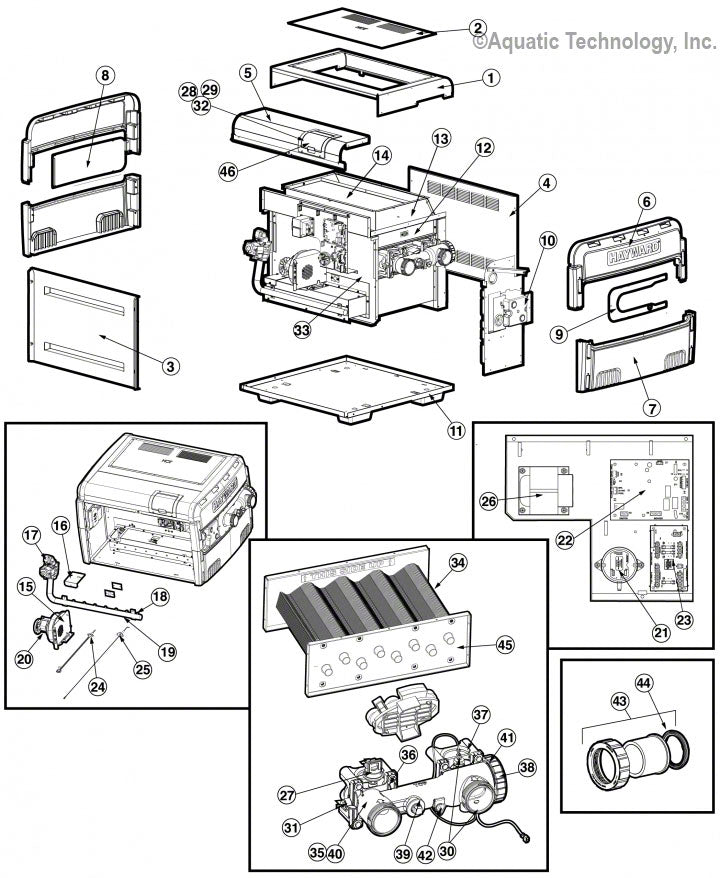

Hayward Universal H-Series H200FD Low Nox Heater Parts Diagram

Frequently Purchased

	TriStar/EcoStar Drain Plug and Gasket - .25 Inch - SPX4000FG 3160 in stock	$10.84
	1.5 Amp Mini-Fuse - Each - FDXLFSKF15-EACH 12 in stock	$2.99
	H-Series FD Conversion Kit LP to Natural - FDXLCNK0002 59 in stock	$296.24
	TriStar/EcoStar T-Seal Union Gasket - Pack of 2 - SPX3200UG 580 in stock	$30.54
	H-Series FD Low NOx Ignitor Kit - FDXLIGN1930 408 in stock	$147.19

Any key items not listed on the above schematic are no longer available.

Sort Products:
Key
Popularity

42 TriStar/EcoStar Drain Plug and Gasket - .25 Inch

3160 in stock

Item #: SPX4000FG

$10.84

Not Shown 1.5 Amp Mini-Fuse - Each

12 in stock

Item #: FDXLFSKF15-EACH

$2.99

Not Shown H-Series FD Conversion Kit LP to Natural

59 in stock

Item #: FDXLCNK0002

$296.24

44 TriStar/EcoStar T-Seal Union Gasket - Pack of 2

580 in stock

Item #: SPX3200UG

$30.54

24 H-Series FD Low NOx Ignitor Kit

408 in stock

Item #: FDXLIGN1930

$147.19

20 Combustion Blower - FD

57 in stock

Item #: FDXLBWR1930

$362.41

22 Ignitor Control Board for ASME Heaters FD

428 in stock

Item #: FDXLICB1930

$442.18

43 TriStar EcoStar NorthStar Union Connector Kit

626 in stock

Item #: SPX3200UNKit

$91.03

28 H- Series IDL2 Low NOx Display Board

161 in stock

Item #: IDXL2DB1930

$436.14

30 H-Series Low NOx High Limit Kit

108 in stock

Item #: FDXLHLI1930

$108.54

38 Bypass Replacement Cartridge Kit FD Heater

58 in stock

Item #: FDXLBPK1930

$86.18

27 Pressure Switch FD Heaters

265 in stock

Item #: FDXLWPS1930

$77.68

19 H200FD Heater Conversion Kit - H200 LP to Natural

2 in stock

Item #: FDXLGCK1200PN

$251.91

25 Flame Sensor

280 in stock

Item #: IDXLFLS1930

$122.04

Not Shown Universal H-Series FD Burner Kit

76 in stock

Item #: FDXLBRN1930

$441.59

Not Shown H-Series Low NOx Indoor Pressure Switches - Pack of 3

52 in stock

Item #: FDXLVPS1930

$101.81

40 FD Series Front Header Assembly

61 in stock

Item #: FDXLFHA1930

$355.21

29 Bezel and Keypad Assembly Kit - FD Models

112 in stock

Item #: FDXLBKP1930

$152.99

34 Heat Exchange Assembly H200FD

46 in stock

Item #: FDXLHXA1200

$1,445.00

Not Shown FD Conversion Kit Natural To LP

59 in stock

Item #: FDXLCNK0001

$296.24

Not Shown H-Series Field Wiring Mini-Fuse Kit 1.5 Amps - 10 Pack

5 in stock

Item #: FDXLFSKF15

$55.05

Not Shown Indoor Vent Adapter Kit Negative Vertical Venting H200

21 in stock

Item #: UHXNEGVT12001

$324.51

Not Shown H-Series Low NOx Union Kit

6 in stock

Item #: FDXLUNK1930A

$167.47

Not Shown H-Series FD Header O-Ring Kit

40 in stock

Item #: FDXLFor1930

$60.05

18 Universal H-Series Burner Orifice LP Kit FD

27 in stock

Item #: FDXLBOP1930

$88.58

17 Gas Valve Natural Kit FD

334 in stock

Item #: FDXLGSV0001

$379.67

Not Shown H-Series Low Nox Air Side Gasket Kit

6 in stock

Item #: FDXLGSK1930

$119.77

33 H-Series Low Nox CC Front/Air Box Gasket

Allow 3-6 Months to Ship

Item #: FDXLGSK1934

$111.29

26 IDL2 Transformer 240 Volts - Post 9/2004

60 in stock

Item #: IDXL2TRF1930

$196.63

23 Field Wiring Panel Kit FD

120 in stock

Item #: FDXLFWP1930

$135.26

Not Shown H-Series Field Wiring Mini-Fuse Kit 3.0 Amps - 10 Pack

5 in stock

Item #: FDXLFSKF30

$91.78

18 Universal H-Series Burner Orifice (Quantity 8) Natural Gas Kit FD

36 in stock

Item #: FDXLBON1930

$88.58

17 Gas Valve LP Kit FD

319 in stock

Item #: FDXLGSV0002

$379.67

37 Kit Header Mounting Base

25 in stock

Item #: FDXLHMB1930

$94.14

36 Header Hardware Kit FD

14 in stock

Item #: FDXLHDW1930

$92.08

21 Blower Vacuum Switch

97 in stock

Item #: FDXLBVS1930

$75.35

Not Shown H-Series Low NOx HA-Vent Pressure Switch

Allow 3-6 Months to Ship

Item #: FDXLVPS1931

$143.91

5 Top and Front Panel H200FD

Allow 3-6 Months to Ship

Item #: FDXLTFP1201

$133.13

Not Shown Hurricane Tie Down Kit FD

Allow 3-6 Months to Ship

Item #: FDXLTDK1930

$118.09

Not Shown WIring Harness Assembly Complete FD Kit

Allow 3-6 Months to Ship

Item #: FDXLWHA0001

$137.74

Not Shown H-Series Low Nox Return Side Tube Sheet Insulation Kit

Allow 3-6 Months to Ship

Item #: FDXLGSK1933

$69.89

1 H200FD Jacket Top - Taupe

Allow 3-6 Months to Ship

Item #: FDXLJKT1200

$256.70

2 H200FD Top Flue Cover - Taupe

Allow 3-6 Months to Ship

Item #: FDXLTFC1200

$141.05

Not Shown H-Series H150-H500 Flow Switch Kit

Allow 3-6 Months to Ship

Item #: UHXFSW1930

$533.80

Not Shown H-SeriesTemperature/Pressure and Flow Switch

Allow 3-6 Months to Ship

Item #: UHXTFP1930

$684.42

3 Front Access Door Assembly H200FD 1 Screw

Allow 3-6 Months to Ship

Item #: FDXLFAD1201

$245.45

13 Kit Rain Guard Assembly H200FD

Allow 3-6 Months to Ship

Item #: FDXLRGK1201

$316.12

Not Shown H-Series Drain Valve Kit - ASME

Allow 3-6 Months to Ship

Item #: FDXLDRV1930A

$66.59

14 Heat Barrier Panel Kit H200FD

Allow 3-6 Months to Ship

Item #: FDXLHBP1200

$142.28

16 Ignitor Access Cover Assembly Kit

Allow 3-6 Months to Ship

Item #: FDXLIAC1930

$68.77
