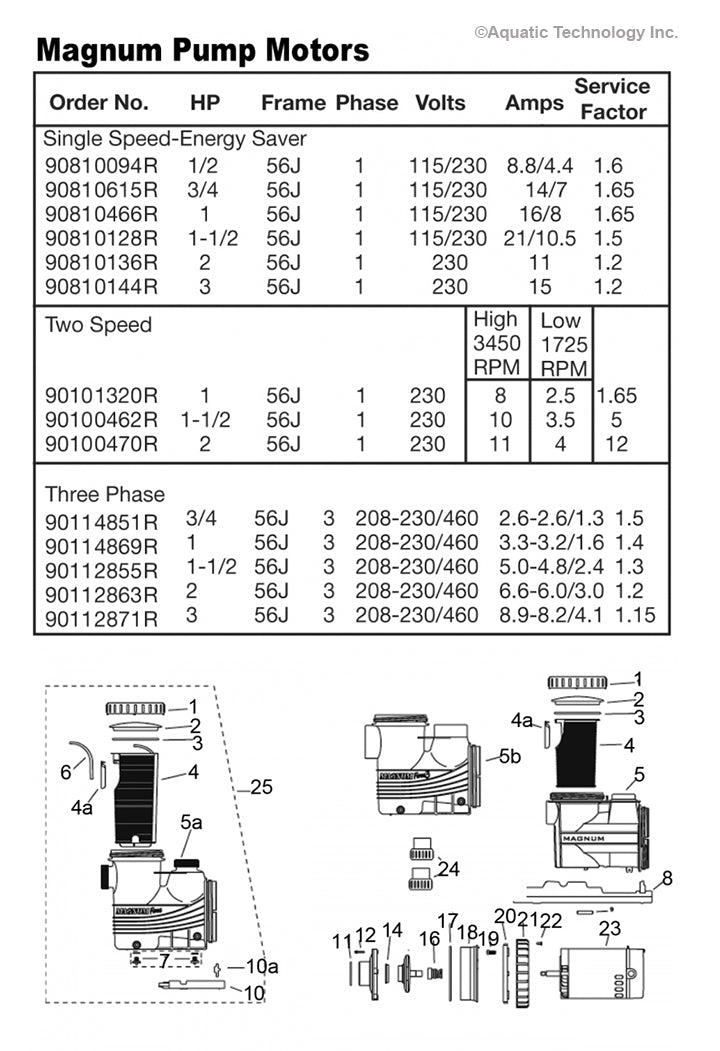

Jacuzzi Magnum Pump Parts Diagram | 25 parts

Jacuzzi Magnum Pump Parts

Frequently Purchased

APCKIT14
 		Generic Pump O-Ring Repair Kit with Seal - APCKIT14
245 in stock
 $34.91
31-1609-06-R2
 		Jacuzzi Filter/Pump Drain Plugs With O-Ring - 1/4 Inch - Pack of 2 - 31-1609-06-R2
109 in stock
 $7.46
47-0434-01-R
 		Magnum Strainer Tank O-Ring - Prior to July 1989 - 47-0434-01-R
1000 in stock
 $2.98
47-0364-47-R
 		Generic Pump Housing O-Ring for Magnum - 47-0364-47-R
5659 in stock
 $2.22
10-1462-07-R
 		Eye Seal Ring 1/2 to 3 HP Pumps - J and K Pump - 10-1462-07-R
88 in stock
 $14.68
Any key items not listed on the above schematic are no longer available.
APCKIT14
Not Shown Generic Pump O-Ring Repair Kit with Seal
245 in stock
Item #: APCKIT14
$34.91
31-1609-06-R2
7 Jacuzzi Filter/Pump Drain Plugs With O-Ring - 1/4 Inch - Pack of 2
109 in stock
Item #: 31-1609-06-R2
$7.46
47-0434-01-R
3 Magnum Strainer Tank O-Ring - Prior to July 1989
1000 in stock
Item #: 47-0434-01-R
$2.98
47-0364-47-R
17 Generic Pump Housing O-Ring for Magnum
5659 in stock
Item #: 47-0364-47-R
$2.22
10-1462-07-R
14 Eye Seal Ring 1/2 to 3 HP Pumps - J and K Pump
88 in stock
Item #: 10-1462-07-R
$14.68
02-1368-02-R
20 Magnum Pump Motor Housing Bracket
38 in stock
Item #: 02-1368-02-R
$63.87
47-0232-54-R
11 Square Cut Round Ring Gasket - Magnum
65 in stock
Item #: 47-0232-54-R
$4.87
14-1293-24-R-4
19 Magnum/RC Hex Cap Bolts - 3/8-16 x 7/8 Inch - 4 Pack
Limited Stock Available
Item #: 14-1293-24-R-4
$5.73
More Info
16-1135-10-R
4a Magnum Flapper Assembly
12 in stock
Item #: 16-1135-10-R
$17.68
39-2579-02R
2 Jacuzzi Magnum Strainer Cover
7 in stock
Item #: 39-2579-02R
$47.55
03-0906-02-R
5a Magnum Housing Body With Plugs and Basket
12 in stock
Item #: 03-0906-02-R
$154.06
ST1102
23b 1 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Full-Rated
165 in stock
Item #: ST1102
$350.47
42-2828-06-R
1 Strainer RingLok
9 in stock
Item #: 42-2828-06-R
$34.46
10-1463-14-R
14 Magnum Force 3 Eye Seal 4 and 5 HP Pump
10 in stock
Item #: 10-1463-14-R
$19.58
42-2886-05-R
21 Magnum Mounting Nut With Ratchet
5 in stock
Item #: 42-2886-05-R
$64.62
ST1152
23c 1-1/2 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/208-230 Volts - Full-Rated
276 in stock
Item #: ST1152
$433.52
12-1126-03-R
10 Magnum Force Pump Base
Limited Stock Available
Item #: 12-1126-03-R
$27.93
More Info
02-1393-01-R
18 Magnum Seal Housing - 3/4 HP and 1-1/2 HP Pumps
22 in stock
Item #: 02-1393-01-R
$136.89
16-1086-06-R
4 Magnum Pump Strainer Basket with Flapper
7 in stock
Item #: 16-1086-06-R
$41.04
ST1072
23a 3/4 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Full Rated - Threaded
33 in stock
Item #: ST1072
$303.80
STS1152R
23c 1-1/2 HP Pump Motor 56J Frame - 2-Speed 1-Phase 230 Volts - Energy Efficient
Allow 10-14 Days to Ship
Item #: STS1152R
$574.39
More Info
ST1202
23d 2 HP Pump Motor 56J Frame - 1-Speed 1-Phase 208-230 Volts - Full-Rated
88 in stock
Item #: ST1202
$492.04
ST1302V1
23e 3 HP Pump Motor 56J Frame - 1-Speed 1-Phase 208-230 Volts - Max-Rated
31 in stock
Item #: ST1302V1
$757.47
12-1124-05-R
10a Magnum Plus Motor Support
Limited Stock Available
Item #: 12-1124-05-R
$11.18
More Info
06-0165-05-R
12 Magnum Diffuser - 1-1/2 HP to 3 HP
2 in stock
Item #: 06-0165-05-R
$43.74
