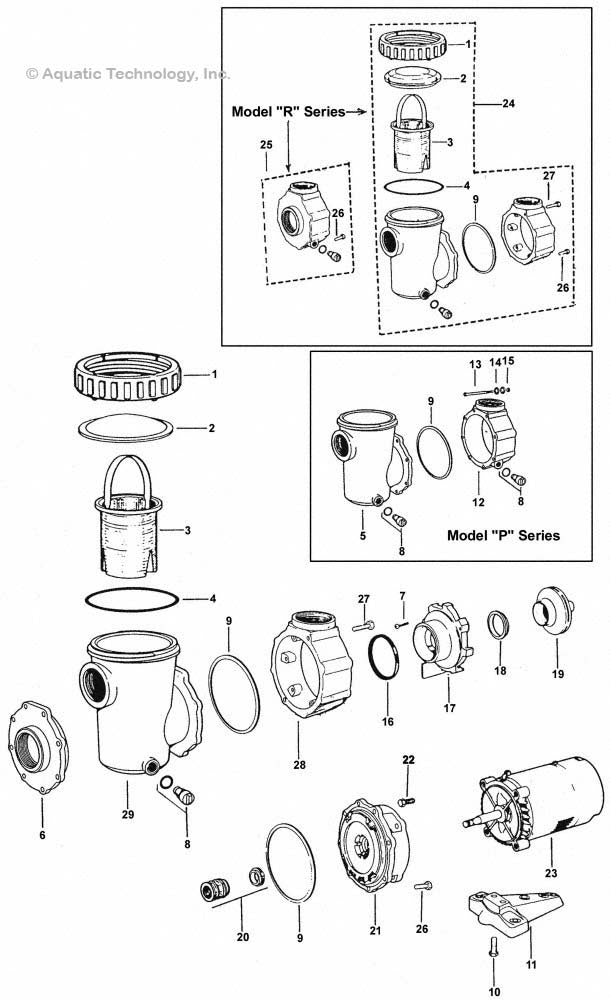

Jacuzzi Ring-Lok Pump Parts Diagram | 25 parts

Jacuzzi Ring-Lok Pump Parts

Frequently Purchased

31-1609-06-R2
 		Jacuzzi Filter/Pump Drain Plugs With O-Ring - 1/4 Inch - Pack of 2 - 31-1609-06-R2
85 in stock
 $7.72
10-1462-07-R
 		Eye Seal Ring 1/2 to 3 HP Pumps - J and K Pump - 10-1462-07-R
45 in stock
 $15.20
UST1152
 		1-1/2 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Up-Rated - UST1152
1779 in stock
 $349.38
UST1102
 		1 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Up-Rated - UST1102
2007 in stock
 $300.18
39-2579-02R
 		Jacuzzi Magnum Strainer Cover - 39-2579-02R
6 in stock
 $49.24
Any key items not listed on the above schematic are no longer available.
31-1609-06-R2
8 Jacuzzi Filter/Pump Drain Plugs With O-Ring - 1/4 Inch - Pack of 2
85 in stock
Item #: 31-1609-06-R2
$7.72
10-1462-07-R
18 Eye Seal Ring 1/2 to 3 HP Pumps - J and K Pump
45 in stock
Item #: 10-1462-07-R
$15.20
UST1152
23d 1-1/2 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Up-Rated
1779 in stock
Item #: UST1152
$349.38
UST1102
23c 1 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Up-Rated
2007 in stock
Item #: UST1102
$300.18
39-2579-02R
2 Jacuzzi Magnum Strainer Cover
6 in stock
Item #: 39-2579-02R
$49.24
42-2828-06-R
1 Strainer RingLok
6 in stock
Item #: 42-2828-06-R
$35.69
47046602R
9 P/R Series Strainer Body Gasket O-Ring
13 in stock
Item #: 47046602R
$8.82
10-1463-14-R
18 Magnum Force 3 Eye Seal 4 and 5 HP Pump
9 in stock
Item #: 10-1463-14-R
$20.28
UST1072
23b 3/4 HP Pump Motor 56J Frame Threaded Shaft - 1-Phase 115/230 Volts 60 Hz- Up-Rated
325 in stock
Item #: UST1072
$282.90
UST1202
23e 2 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Up-Rated
500 in stock
Item #: UST1202
$443.07
47-0462-06
16 P/PC/PH Diffuser Ring - Square-Cut
167 in stock
Item #: 47-0462-06
$4.76
UQC1152
23d 1-1/2 HP Pump Motor 48Y Frame - 1-Speed 1-Phase 115/230 Volts - Up-Rated - Energy Efficient
9 in stock
Item #: UQC1152
$401.81
ST1052
23a 1/2 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Full-Rated
36 in stock
Item #: ST1052
$288.17
ST1302V1
23f 3 HP Pump Motor 56J Frame - 1-Speed 1-Phase 208-230 Volts - Max-Rated
25 in stock
Item #: ST1302V1
$776.94
06-01570-5-R
17 Diffuser 1/2 HP Full Rated
5 in stock
Item #: 06-01570-5-R
$42.84
06-0163-07-R
17 Diffuser 1-1/2 HP Full Rated
Limited Stock Available
Item #: 06-0163-07-R
$42.84
More Info
06-0164-06-R
17 Diffuser 3 HP Full Rated
Limited Stock Available
Item #: 06-0164-06-R
$42.84
More Info
10-1464-13-R
18 Eye Seal 3 HP Full Rated
6 in stock
Item #: 10-1464-13-R
$24.52
05-3800-01-R
19 Magnum High Flow Impeller - 1/2 HP Full-Rated and 3/4 HP Up-Rated
5 in stock
Item #: 05-3800-01-R
$54.71
05-3803-08-R
19 Magnum High Flow Impeller - 1-1/2 HP Full-Rated and 2 HP Up-Rated
8 in stock
Item #: 05-3803-08-R
$54.71
05-380-506-R
19 Magnum High Flow Impeller - 3 HP Full-Rated
4 in stock
Item #: 05-380-506-R
$54.71
16098709R
29 Strainer Body 1 1/2 Inch With Plug
Limited Stock Available
Item #: 16098709R
$125.73
More Info
16013906R
Generic Plastic Skimmer Basket for Jacuzzi 16094708, 16096406
Allow 3-5 Weeks to Ship
Item #: 16013906R
$49.62
More Info
AS-201V
Generic Heavy-Duty Viton Pump Seal for SP4000 and 37400-0028S
8 in stock
Item #: AS-201V
$18.86
02-1351-01-R
P/PC/EP Pump Seal Bracket - 1-1/2 to 3 HP
Usually ships in 5-7 days
Item #: 02-1351-01-R
$94.77
More Info
