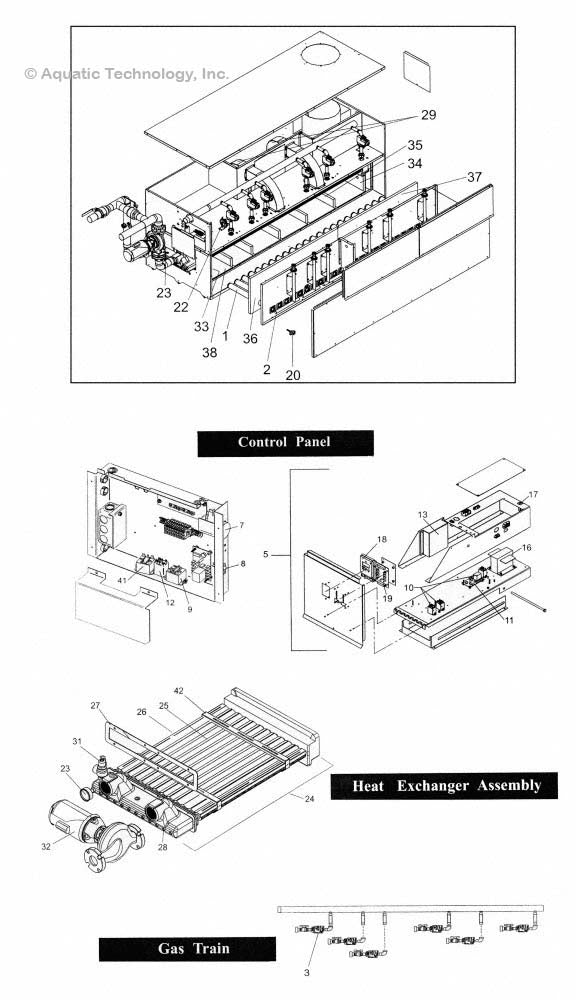

Lochinvar Copper-Fin 2 Commercial Heater Parts Diagram

Lochinvar Copper-Fin 2 Commercial Heater Parts

Frequently Purchased

PLT3400
Lochinvar Hot Surface Ignitor - PLT3400
Ships from the manufacturer
$92.21
FIL2075
Copper-Fin II Heavy-Duty Air Filter - FIL2075
Ships from the manufacturer
$58.16
RLY2038
Copper-Fin CP501-1441 Electronic Temperature Control - Pre F0600187510 - RLY2038
Ships from the manufacturer
$323.56
FAN2010
Copper-Fin II Inducer Fan Assembly - 115 Volts - FAN2010
Ships from the manufacturer
$474.93
100208608
Copper-Fin II CP502-752 Gas Valve LP - 24 Volts - 3/4 Inch NPT - 100208608
Ships from the manufacturer
$213.37
Any key items not listed on the above schematic are no longer available.
PLT3400
19 Lochinvar Hot Surface Ignitor
Ships from the manufacturer
Item #: PLT3400
$92.21
More Info
FIL2075
34 Copper-Fin II Heavy-Duty Air Filter
Ships from the manufacturer
Item #: FIL2075
$58.16
More Info
RLY2038
5 Copper-Fin CP501-1441 Electronic Temperature Control - Pre F0600187510
Ships from the manufacturer
Item #: RLY2038
$323.56
More Info
FAN2010
31 Copper-Fin II Inducer Fan Assembly - 115 Volts
Ships from the manufacturer
Item #: FAN2010
$474.93
More Info
100208608
2 Copper-Fin II CP502-752 Gas Valve LP - 24 Volts - 3/4 Inch NPT
Ships from the manufacturer
Item #: 100208608
$213.37
More Info
PRS30014
20 Lochinvar CB/CW495-745 Low Air Pressure Switch
Ships from the manufacturer
Item #: PRS30014
$53.75
More Info
HEX3404
22 Copper-Fin II CS/CH 745-751 Heat Exchanger - ASME
Ships from the manufacturer
Item #: HEX3404
$4,156.34
More Info
JKD2253
23 Copper-Fin II 650 V-Baffle
Ships from the manufacturer
Item #: JKD2253
$53.82
More Info
HEX3403
22 Copper-Fin II CS/CH 645-651 Heat Exchanger - ASME
Ships from the manufacturer
Item #: HEX3403
$3,805.33
More Info
HLC2503
21A Lochinvar High Limit Switch - 110 Degrees F
Ships from the manufacturer
Item #: HLC2503
$82.28
More Info
HEX3012
22 Copper-Fin II CF/CP 500-501 Heat Exchanger - ASME
Ships from the manufacturer
Item #: HEX3012
$3,289.46
More Info
HEX3013
22 Copper-Fin II CS/CW 650-651 Heat Exchanger - ASME
Ships from the manufacturer
Item #: HEX3013
$3,836.48
More Info
HEX3014
22 Copper-Fin II CF/CP 750-751 Heat Exchanger - ASME
Ships from the manufacturer
Item #: HEX3014
$4,187.49
More Info
HEX3402
22 Copper-Fin II CS/CH 495-501 Heat Exchanger - ASME
Ships from the manufacturer
Item #: HEX3402
$3,257.55
More Info
MSC3415
33 Lochinvar Sight Glass Kit
Ships from the manufacturer
Item #: MSC3415
$79.85
More Info
FIB2130
35 Copper-Fin II Insulation - Rear Head Side
Ships from the manufacturer
Item #: FIB2130
$53.85
More Info
FIB2132
36 Copper-Fin II Insulation - Front Panel
Ships from the manufacturer
Item #: FIB2132
$153.87
More Info
GTP3000
27 Copper-Fin II Temperature Gauge - 2-1/2 Inch
Ships from the manufacturer
Item #: GTP3000
$54.81
More Info
TST2313
21A Copper-Fin II and EnergyRite Temperature Sensor
Ships from the manufacturer
Item #: TST2313
$55.87
More Info
ARM3044PABTE
29 Copper-Fin II Models CP(N/L) 401-751 Pump 1/4 HP
Ships from the manufacturer
Item #: ARM3044PABTE
$3,483.01
More Info
100208201
26 Copper-Fin II Models CF/CH/CP300-751 Frame End
Ships from the manufacturer
Item #: 100208201
$58.91
More Info
WTR30000
7 Copper-Fin II 501-2071 Low Water Cut-Off Manual Reset
Ships from the manufacturer
Item #: WTR30000
$191.53
More Info
100208666
EnergyRite II Low Water Cut-Off With Manual Reset
Ships from the manufacturer
Item #: 100208666
$261.78
More Info
WTR2528
7 Copper-Fin II 501-2071 Low Water Cut-Off Relay
Ships from the manufacturer
Item #: WTR2528
$291.33
More Info
WTR30001
7 Copper-Fin II 501-2071 Low Water Cut-Off Auto Reset
Ships from the manufacturer
Item #: WTR30001
$191.53
More Info
WTR2222
Optional Copper-Fin II 501-2071 Low Water Cut-Off Probe
Ships from the manufacturer
Item #: WTR2222
$78.82
More Info
100208486
6 Copper-Fin II Models CB987-2067 Display Board
Ships from the manufacturer
Item #: 100208486
$112.39
More Info
Call for price
More Info
BNR3417
1 Copper-Fin II CP 502 Main Burner
Ships from the manufacturer
Item #: BNR3417
$105.73
More Info
BNR3416
1 EnergyRite ER 152-402 400-750 BTU Burner
Ships from the manufacturer
Item #: BNR3416
$110.03
More Info
PAN3021
4 Copper-Fin II 501-2071 Complete Control Panel - Starting F0600187510
Ships from the manufacturer
Item #: PAN3021
$1,676.30
More Info
PAN3017
4 Copper-Fin II 501-2071 Complete Control Panel - Pre F0600187510
Ships from the manufacturer
Item #: PAN3017
$2,092.05
More Info
RLY2714
16 Copper-Fin II 501-2071 Time Delay Relay
Ships from the manufacturer
Item #: RLY2714
$147.05
More Info
100208174
18 Power-Fin High Limit Switch With Manual Reset
Ships from the manufacturer
Item #: 100208174
$179.81
More Info
PRS30010
20 Lochinvar EB/EW 250-300 Pressure Switch
Ships from the manufacturer
Item #: PRS30010
$57.19
More Info
RLY2051
14 Copper-Fin II 501-2071 Relay/Louver - 10 Amps
Ships from the manufacturer
Item #: RLY2051
$59.90
More Info
MSC2465
11 Custom Hi-Power Circuit Breaker - 5 Amps
Ships from the manufacturer
Item #: MSC2465
$51.58
More Info
RLY2402
13 Copper-Fin II 501-2071 Ignition Module
Ships from the manufacturer
Item #: RLY2402
$321.89
More Info
