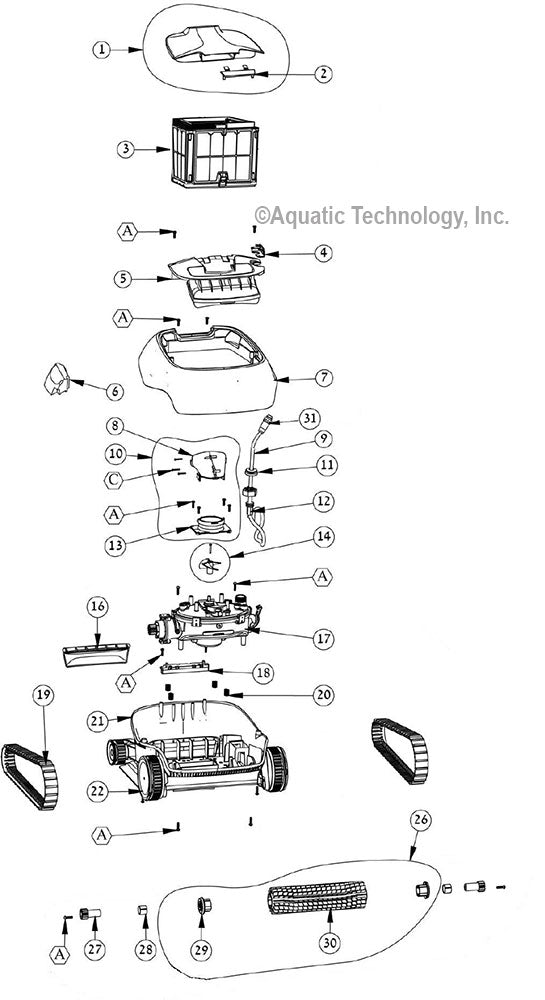

Nautilus CC Cleaner Parts Diagram

Nautilus CC Cleaner Parts

Frequently Purchased

9983114
Dolphin Wheel Bushing - 9983114
472 in stock
$2.40
99830157
Nautilus CC Small Wheel - Blue - 99830157
255 in stock
$8.26
9995266-R1
Dolphin Impeller With Screw - Black - 9995266-R1
240 in stock
$17.90
99831117
Nautilus CC Front Wheel - Blue - 99831117
403 in stock
$13.43
9983018
Dolphin Active Brush Gear Z12 - 9983018
395 in stock
$2.40
Any key items not listed on the above schematic are no longer available.
9983114
22-5 Dolphin Wheel Bushing
472 in stock
Item #: 9983114
$2.40
99830157
22-9 Nautilus CC Small Wheel - Blue
255 in stock
Item #: 99830157
$8.26
9995266-R1
14 Dolphin Impeller With Screw - Black
240 in stock
Item #: 9995266-R1
$17.90
99831117
22-3 Nautilus CC Front Wheel - Blue
403 in stock
Item #: 99831117
$13.43
9983018
27 Dolphin Active Brush Gear Z12
395 in stock
Item #: 9983018
$2.40
9995884-DIY
9 Echo, Encore, Explorer E20 Cable - 2-Wire - 50 Feet
25 in stock
Item #: 9995884-DIY
$94.04
9991460-R1
3 Dolphin Ultra-Fine Filter Basket
Allow 14-21 Days to Ship
Item #: 9991460-R1
$79.99
More Info
9983042
28 S50/S100 Active Brush Bushing
138 in stock
Item #: 9983042
$2.17
9983017
29 S50/S100 Active Brush Adaptor
80 in stock
Item #: 9983017
$4.40
9983152-R2
19 Dolphin Tracks - Gray - Set of 2 - S300
21 in stock
Item #: 9983152-R2
$53.99
9983122-R1
30 Dolphin Front Active Brush - Gray
6 in stock
Item #: 9983122-R1
$14.84
5000009
31 Dolphin Amphenol Plug
5 in stock
Item #: 5000009
$36.58
9995544-ASSY
26 Dolphin E10/E20 Active Brush Assembly - Gray
40 in stock
Item #: 9995544-ASSY
$38.80
99830085
2 Nautilus CC Lid Latch - Dark Gray
12 in stock
Item #: 99830085
$3.74
9983024-R1
15 Nautilus CC Rapid Drain Flap
Allow 14-21 Days to Ship
Item #: 9983024-R1
$9.09
More Info
9991459-R1
3 Spring Filter Basket Assembly
Allow 14-21 Days to Ship
Item #: 9991459-R1
$112.68
More Info
9991466-R4
3j Saturn/Echo Ultra-Fine Filters - Set of 4
Allow 14-21 Days to Ship
Item #: 9991466-R4
$102.41
More Info
99952181-ASSY
1 Nautilus CC Rear Lid Assembly
Allow 14-21 Days to Ship
Item #: 99952181-ASSY
$50.82
More Info
99830234
4 Nautilus CC Lid Grommet - Light Blue
Allow 14-21 Days to Ship
Item #: 99830234
$3.35
More Info
9991741
6 Nautilus CC Upper Float and Housing
Allow 14-21 Days to Ship
Item #: 9991741
$2.49
More Info
99830004
7 Nautilus CC Cover Up - Black
Allow 14-21 Days to Ship
Item #: 99830004
$48.27
More Info
9991740
8 Dolphin Nozzle Tube Small Left and Right Assembly
Allow 14-21 Days to Ship
Item #: 9991740
$2.42
More Info
9991742
10 Dolphin Manifold
Allow 14-21 Days to Ship
Item #: 9991742
$10.49
More Info
9983126
11 Dolphin Grommet Ref - Small
1 in stock
Item #: 9983126
$2.42
9991271
12 Dolphin Retrofit for Cable Connection 2015
2 in stock
Item #: 9991271
$25.01
9983022
13 Echo/Nautilus CC Small Jet Tube
Allow 14-21 Days to Ship
Item #: 9983022
$8.40
More Info
9983019
18 Echo/Nautilus CC Outer Casing Adapter
Allow 14-21 Days to Ship
Item #: 9983019
$6.30
More Info
3917022
20 Dolphin Filter Spring
Allow 14-21 Days to Ship
Item #: 3917022
$4.46
More Info
3726283
22-7 Bypass Weight for S100
Allow 14-21 Days to Ship
Item #: 3726283
$29.31
More Info
9983027
3a Dolphin Filter Handle Knob
Allow 14-21 Days to Ship
Item #: 9983027
$4.65
More Info
3917029
3b Dolphin Filter Handle Spring
Allow 14-21 Days to Ship
Item #: 3917029
$10.49
More Info
9983004
3c Dolphin Filter Handle 1
Allow 14-21 Days to Ship
Item #: 9983004
$8.40
More Info
9983037
3d Dolphin Filter Frame Top
Allow 14-21 Days to Ship
Item #: 9983037
$12.20
More Info
9991468-R4
3e Saturn/Echo Fine Filters - Set of 4
Allow 14-21 Days to Ship
Item #: 9991468-R4
$53.17
More Info
9983025
3f Nautilus CC Filter Flap
Allow 14-21 Days to Ship
Item #: 9983025
$4.46
More Info
9983026
3g Nauitlus CC Filter Holder
Allow 14-21 Days to Ship
Item #: 9983026
$4.46
More Info
9983036
3h Nautilus CC Filter Frame Bottom
1 in stock
Item #: 9983036
$8.24
9983010
3i Nautilus CC Filter Door 2
Allow 14-21 Days to Ship
Item #: 9983010
$47.68
More Info
