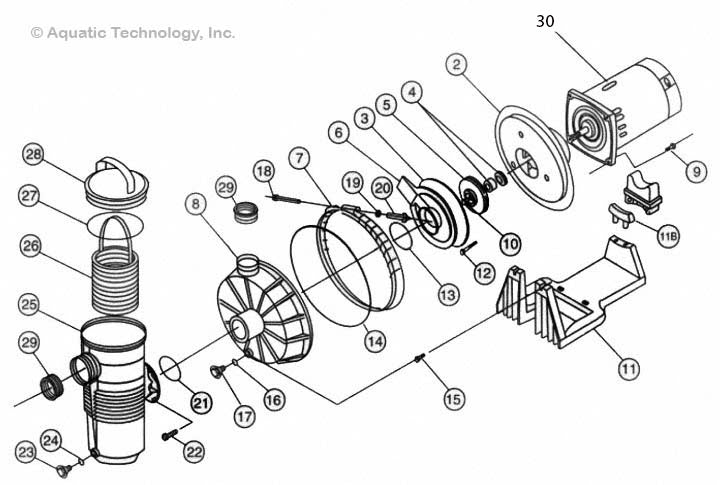

Pentair Challenger High Pressure Pump Parts Diagram | 54 parts

Pentair Challenger High Pressure Pump Parts

Frequently Purchased

355329
 		Pump Front Housing O-Ring - 355329
15 in stock
 $6.18
354545S
 		Pump Mechanical Shaft Seal Assembly - 5/8 Inch - 354545S
51 in stock
 $52.60
192115
 		Whisperflo/Superflo Drain Plug O-Ring - 192115
111 in stock
 $1.22
350013
 		WhisperFlo Strainer Cover Lid O-Ring - After 11-98 - 350013
Allow 3-6 Weeks to Ship
 $7.71
355331
 		Challenger Diffuser O-Ring - 355331
71 in stock
 $1.22
Any key items not listed on the above schematic are no longer available.
355329
14 Pump Front Housing O-Ring
15 in stock
Item #: 355329
$6.18
354545S
4 Pump Mechanical Shaft Seal Assembly - 5/8 Inch
51 in stock
Item #: 354545S
$52.60
192115
16 Whisperflo/Superflo Drain Plug O-Ring
111 in stock
Item #: 192115
$1.22
350013
27 WhisperFlo Strainer Cover Lid O-Ring - After 11-98
Allow 3-6 Weeks to Ship
Item #: 350013
$7.71
More Info
355331
13 Challenger Diffuser O-Ring
71 in stock
Item #: 355331
$1.22
355330
21 Strainer Pot and Admiral Skimmer O-Ring - 2-3/8 Inch I.D.
9 in stock
Item #: 355330
$4.17
355334
12 Challenger Diffuser Hex Washer Head Screw - 8-32 x 1 Inch
2 in stock
Item #: 355334
$5.89
355300
25 Challenger/Waterfall Strainer Pot
39 in stock
Item #: 355300
$158.05
APCKIT5
Overhaul Kit Challenger Pump Repair Kit With Seal and O-Rings
1 in stock
Item #: APCKIT5
$29.09
355468
8 Challenger Front Housing Slip Inlet - Black
30 in stock
Item #: 355468
$159.97
355389
10 Challenger Impeller Lock Screw
Allow 3-6 Weeks to Ship
Item #: 355389
$4.70
More Info
355004
2 Challenger Seal Plate Replacement
98 in stock
Item #: 355004
$122.65
355320
7 Challenger Pump Band Clamp Assembly
70 in stock
Item #: 355320
$109.49
354290
9 Challenger/SuperMax Hex Washer Head Screw - 3/8-16 x 1 Inch
159 in stock
Item #: 354290
$9.91
355318
26 Challenger Strainer Basket
83 in stock
Item #: 355318
$67.64
B2853
30 1 HP Pump Motor 56Y Frame - 1-Speed 1-Phase 115/230 Volts - Up-Rated
291 in stock
Item #: B2853
$292.75
355147
5 Challenger Impeller - 1/2 HP Full-Rated to 3/4 HP Up-Rated
18 in stock
Item #: 355147
$81.57
355604
5 Challenger Impeller - 2 HP Full-Rated to 2.5 HP Up-Rated
50 in stock
Item #: 355604
$89.44
H994
30 3 HP Pump Motor 56Y Frame - 1-Speed 3-Phase 208-230/460 Volts - Full-Rated
21 in stock
Item #: H994
$626.79
355188
6 Challenger 3/4 and 1 HP FR to 1 and 1-1/2 HP UR
26 in stock
Item #: 355188
$56.96
355301
28 Challenger/Waterfall Strainer Pot Lid
45 in stock
Item #: 355301
$91.27
355302
Not Shown Challenger/Waterfall Front Housing - Black
13 in stock
Item #: 355302
$216.12
354812S
30 3 HP Pump Motor Square Flange - 3-Phase 208-230/460 Volts 60 Hz - TEFC Super Duty - Black
Allow 3-5 Months to Ship
Item #: 354812S
$683.62
More Info
354814S
30 5 HP Pump Motor Square Flange - 3-Phase 208-230/460 Volts 60 Hz - TEFC Super Duty - Black
2 in stock
Item #: 354814S
$912.82
B983
30 1-1/2 HP Pump Motor 56Y Frame - 2-Speed 1-Phase 230 Volts - Full-Rated
61 in stock
Item #: B983
$511.76
355317
3 Waterfall Pump Mounting Plate - 3/4 to 3 HP Full-Rated
61 in stock
Item #: 355317
$26.83
355270
6 Challenger 1-1/2 and 2 HP Diffuser
40 in stock
Item #: 355270
$57.58
355305
11 Challenger HighFlow Pump Base
32 in stock
Item #: 355305
$75.55
359507
Not Shown Challenger Pot Assembly NPT - Black
13 in stock
Item #: 359507
$282.78
355013S
30 1-1/2 HP Pump Motor Square Flange - 1-Speed 1-Phase 208-230 Volts 60 Hz - Energy Efficient - Black
Allow 3-5 Months to Ship
Item #: 355013S
Call for price
More Info
354806S
30 1 HP Pump Motor Square Flange - 1-Speed 3-Phase 208-230/460 Volts 60 Hz - TEFC Black
3 in stock
Item #: 354806S
$410.74
B2748
30 2 HP Pump Motor 56Y Frame - 1-Speed 1-Phase 230 Volts - Full-Rated
83 in stock
Item #: B2748
$479.07
B2846
30 1/2 HP Pump Motor 56Y Frame - 1-Speed 1-Phase 115/230 Volts - Full-Rated
16 in stock
Item #: B2846
$263.74
B849
30 1-1/2 HP Pump Motor 56Y Frame - 1-Speed 1-Phase 230 Volts - Full Rated
40 in stock
Item #: B849
$417.70
B840
30 2-1/2 HP Pump Motor 56Y Frame - 1-Speed 1-Phase 230 Volts - Up-Rated
44 in stock
Item #: B840
$465.56
B2661
30 3/4 HP Pump Motor 56Y Frame - 1-Speed 1-Phase 115/208- 230 Volts - Energy Efficient
42 in stock
Item #: B2661
$333.76
B841
30 1 HP Pump Motor 56Y Frame - 1-Speed 1-Phase 115/208-230 Volts - Energy Efficient
71 in stock
Item #: B841
$357.68
B981
30 3/4 HP Pump Motor 56Y Frame - 2-Speed 1-Phase 115 Volts - Full-Rated
Allow 10-14 Days to Ship
Item #: B981
$426.18
More Info
355187
5 Challenger Impeller - 3/4 HP Full-Rated to 1 HP Up-Rated
33 in stock
Item #: 355187
$82.01
355369
5 Challenger Impeller - 1 HP Full-Rated to 1-1/2 HP Up-Rated
34 in stock
Item #: 355369
$86.70
355315
5 Challenger Impeller - 1-1/2 HP Full-Rated to 2 HP Up-Rated
58 in stock
Item #: 355315
$86.40
355544
5 Challenger Impeller - 3 HP Full-Rated
35 in stock
Item #: 355544
$95.24
355545
6 Challenger 2-1/2 and 3 HP Diffuser
31 in stock
Item #: 355545
$84.19
355469
8 Challenger Front Housing - Almond
4 in stock
Item #: 355469
$179.34
175025
20 Challenger Clamp Knob for Captured T-Bolt
23 in stock
Item #: 175025
$57.78
355441
26 Challenger 3 HP Strainer Basket - Stainless Steel
7 in stock
Item #: 355441
$216.69
354112
28 Challenger Strainer Pot Lid
4 in stock
Item #: 354112
$86.41
355021S
30 3/4 HP Pump Motor Square Flange - 1-Speed 1-Phase 115/208-230V 60 Hz - Black
Allow 3-5 Months to Ship
Item #: 355021S
$384.47
More Info
355027S
30 2 HP Pump Motor Square Flange - 1-Speed 1-Phase 208-230 Volts 60 Hz - Black
Allow 3-5 Months to Ship
Item #: 355027S
$503.83
More Info
355009S
30 3/4 HP Pump Motor Square Flange - 1-Speed 1-Phase 115/208-230 Volts 60 Hz - Energy Efficient - Black
Allow 3-5 Months to Ship
Item #: 355009S
Call for price
More Info
