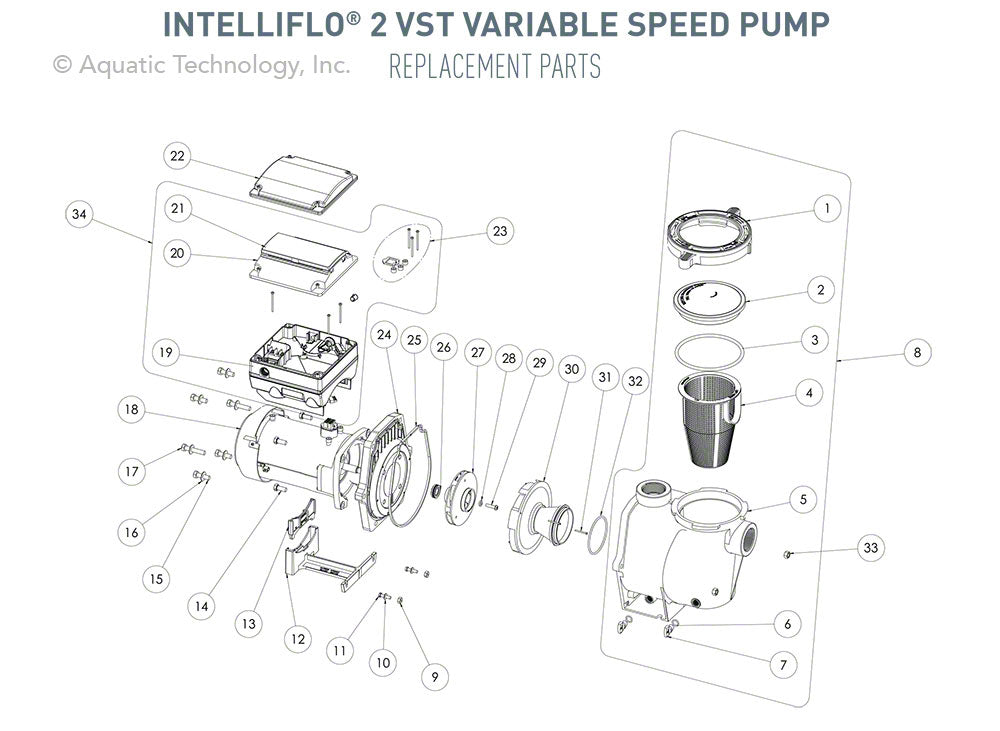

Pentair IntelliFlo 2 VST Variable Speed Pump Parts Diagram

Pentair IntelliFlo 2 VST Variable Speed Pump Parts

Frequently Purchased

071734S
 		WhisperFlo/IntelliFlo Shaft Seal Assembly - 071734S
54 in stock
 $99.91
192115
 		Whisperflo/Superflo Drain Plug O-Ring - 192115
121 in stock
 $1.21
350013
 		WhisperFlo Strainer Cover Lid O-Ring - After 11-98 - 350013
13 in stock
 $7.59
350015
 		WhisperFlo/IntelliFlo Pot and Volute - Almond - 350015
65 in stock
 $227.81
355227
 		WhisperFlo/IntelliFlo Diffuser O-Ring - 3-3/8 Inch - 355227
14 in stock
 $1.96
Any key items not listed on the above schematic are no longer available.
071734S
26 WhisperFlo/IntelliFlo Shaft Seal Assembly
54 in stock
Item #: 071734S
$99.91
192115
6 Whisperflo/Superflo Drain Plug O-Ring
121 in stock
Item #: 192115
$1.21
350013
3 WhisperFlo Strainer Cover Lid O-Ring - After 11-98
13 in stock
Item #: 350013
$7.59
350015
5 WhisperFlo/IntelliFlo Pot and Volute - Almond
65 in stock
Item #: 350015
$227.81
355227
32 WhisperFlo/IntelliFlo Diffuser O-Ring - 3-3/8 Inch
14 in stock
Item #: 355227
$1.96
357100
25 WhisperFlo Seal Plate Gasket - Black
3 in stock
Item #: 357100
$11.22
357527Z
20 IntelliFlo Keypad Top Cover Assembly - Almond
9 in stock
Item #: 357527Z
$338.42
357199
1 WhisperFlo/IntelliFlo Cam and Ramp Strainer Cover Clamp - Almond
15 in stock
Item #: 357199
$69.19
350202
Seal Kit WFE/IntelliFlo Seal Plate Kit With Gasket - Almond
16 in stock
Item #: 350202
$200.76
357151
2 WhisperFlo/IntelliFlo Strainer Lid Cover - Clear - After 1998
13 in stock
Item #: 357151
$55.46
350305S
18 3 HP IntelliFloXF Variable Speed Pump Motor - 230 Volts 3 - Almond
Allow 3-5 Months to Ship
Item #: 350305S
$818.07
More Info
357243
8 Pump Pot Assembly
Allow 1-2 Months to Ship
Item #: 357243
$386.64
More Info
356878Z
19 IntelliFlo VS Drive Kit Without Keypad - Almond
Allow 1-2 Months to Ship
Item #: 356878Z
$1,031.40
More Info
400100
21 IntelliFloXF Keypad Cover - Almond
Allow 1-2 Months to Ship
Item #: 400100
$199.85
More Info
356904Z
22 IntelliFlo 2 VST Keypad Relocation Kit - Almond
4 in stock
Item #: 356904Z
$93.94
071404Z
33 FNS Plus Wing Nut - Stainless Steel - 1/4-20
22 in stock
Item #: 071404Z
$23.45
356879Z
34 IntelliFlo VS Drive Kit With Keypad
4 in stock
Item #: 356879Z
$1,198.28
350122
Cable IntelliFlo Communication Cable - 50 Feet
59 in stock
Item #: 350122
$171.67
354044
Power End IntelliFlo 2 VST Power End
Allow 1-2 Months to Ship
Item #: 354044
$1,773.09
More Info
357603
Union Kit Kit Union 2 Pack 2 Inch IPSX2 Inch NPT
Allow 1-2 Months to Ship
Item #: 357603
$119.51
More Info
350199
Seal Plt Kit Seal Plate Test WF/Intelliflo Almond With Gasket
Allow 1-2 Months to Ship
Item #: 350199
$184.21
More Info
352401
Motor Fan IntelliFlo Fan Motor Kit - Almond
Allow 1-2 Months to Ship
Item #: 352401
$163.99
More Info
071131Z
7 WhisperFlo/SuperFlo Pump Drain Plug - Almond
Allow 1-2 Months to Ship
Item #: 071131Z
$11.47
More Info
356880Z
19 IntelliPro VSF Drive Only - Almond - Pre 10/20
Allow 1-2 Months to Ship
Item #: 356880Z
$1,038.72
More Info
071660
31 WhisperFlo/IntelliFlo Diffuser Set Screw - #4-40 x 1-1/8 Inch
19 in stock
Item #: 071660
$5.92
070387
4 WhisperFlo/IntelliFlo Strainer Basket
Allow 3-5 Months to Ship
Item #: 070387
$20.54
More Info
071652
29 WhisperFlo/IntelliFlo Impeller Lock Screw
7 in stock
Item #: 071652
$5.72
071131
7 WhisperFlo/IntelliFlo Drain Plug Knob
4 in stock
Item #: 071131
$10.20
070429
14 WhisperFlo/IntelliPro Seal Plate Bolt - 3/8-16 x 7/8 Inch Hex Bolt
3 in stock
Item #: 070429
$5.87
075713
28 WhisperFlo IntelliPro Impeller Screw Rubber Washer
3 in stock
Item #: 075713
$3.52
072184
15 Minimax WhisperFlo Washer - 3/8 x 13/16 OD - Stainless Steel
42 in stock
Item #: 072184
$5.47
070430
16 WhisperFlo/IntelliPro Seal Plate Bolt - 3/8-16 x 1-1/4 Inch Hex Cap
4 in stock
Item #: 070430
$4.70
073131
27 WhisperFlo Impeller - 3 HP Full-Rated
60 in stock
Item #: 073131
$117.17
071406
9 WhisperFlo/IntelliFlo Hex Head Nut - 1/4-20
11 in stock
Item #: 071406
$3.03
074564
24 WFE/IntelliFlo Seal Plate
43 in stock
Item #: 074564
$123.32
070431
17 WhisperFlo/IntelliFlo Seal Plate Bolt - 3/8-16 x 2 Inch Hex Cap
Allow 1-2 Months to Ship
Item #: 070431
$4.97
More Info
071657
11 WhisperFlo/IntelliFlo Screw - #1/4-20 x 1 Inch Hex Head
130 in stock
Item #: 071657
$5.31
070927
12 WhisperFlo/IntelliFlo WFE-4 Motor Support Foot
5 in stock
Item #: 070927
$56.62
070929
13 WhisperFlo/IntelliFlo Foot Insert - Almond
6 in stock
Item #: 070929
$30.71
072928
30 WhisperFlo 3 HP Diffuser
32 in stock
Item #: 072928
$58.60
