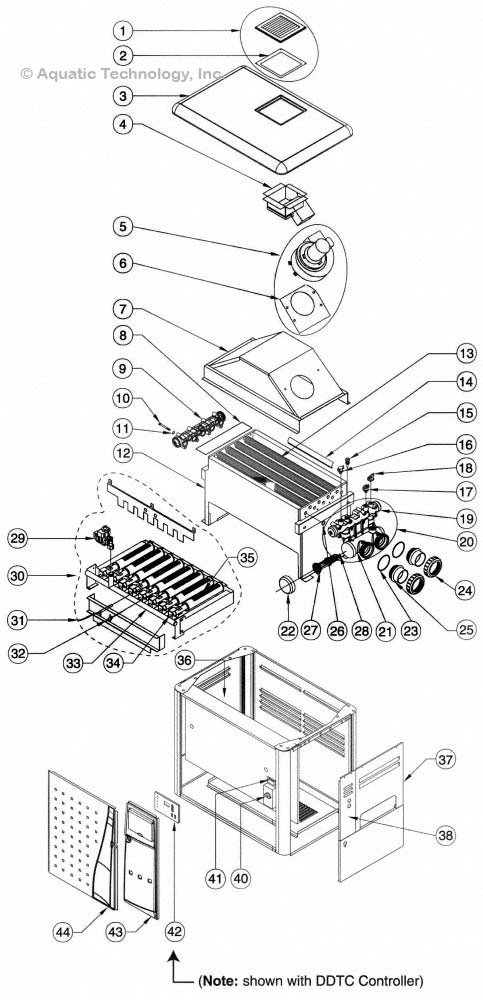

Pentair Minimax NT STD Heater With DDTC Controller Parts Diagram

Pentair Minimax NT STD Heater With DDTC Controller Parts

Frequently Purchased

471640
 		MiniMax 400 Heat Exchanger Baffle - 471640
Allow 1-2 Months to Ship
 $9.82
471566
 		MiniMax 150-400 Thermistor Probe - 471566
4 in stock
 $74.92
274440
 		MiniMax Bulkhead Ring Adapter Nut - Black - 274440
13 in stock
 $26.27
473605
 		MiniMax NT 200-400 Water Pressure Switch - 473605
Allow 1-2 Months to Ship
 $91.63
472270
 		MiniMax H-Limit Header Insulation - 472270
1 in stock
 $15.11
Any key items not listed on the above schematic are no longer available.
471640
14 MiniMax 400 Heat Exchanger Baffle
Allow 1-2 Months to Ship
Item #: 471640
$9.82
More Info
471566
15 MiniMax 150-400 Thermistor Probe
4 in stock
Item #: 471566
$74.92
274440
24 MiniMax Bulkhead Ring Adapter Nut - Black
13 in stock
Item #: 274440
$26.27
473605
18 MiniMax NT 200-400 Water Pressure Switch
Allow 1-2 Months to Ship
Item #: 473605
$91.63
More Info
472270
8 MiniMax H-Limit Header Insulation
1 in stock
Item #: 472270
$15.11
471701
2 MiniMax NT Exhaust Grill Gasket
7 in stock
Item #: 471701
$31.92
471622
10 MiniMax NT Heat Exchanger Bolt
25 in stock
Item #: 471622
$11.46
471587
16 MiniMax 200-400 Hi-Limit Thermostat - 115 Degrees
7 in stock
Item #: 471587
$69.47
472100
42 MiniMax NT 200-400 Board Assembly
4 in stock
Item #: 472100
$474.17
471420
22 MiniMax 200-400 In and Out Main Manifold Bottom Cap
Allow 1-2 Months to Ship
Item #: 471420
$22.74
More Info
471694
17 MiniMax 150 Degree Hi-Limit Thermostat
1 in stock
Item #: 471694
$70.51
472508
Not Shown MiniMax NT Transformer - 40 VA
Allow 1-2 Months to Ship
Item #: 472508
$73.69
More Info
471773
Not Shown MiniMax NT Power Switch
Allow 1-2 Months to Ship
Item #: 471773
$23.27
More Info
472373
4 MiniMax NT 200-400 Exhaust Assembly
Allow 1-2 Months to Ship
Item #: 472373
$223.08
More Info
472376
4 MiniMax 250 Baffle Exhaust Assembly
5 in stock
Item #: 472376
$249.62
472447
41 MiniMax NT STD Ignition Control Module
4 in stock
Item #: 472447
$257.95
471642
14 MiniMax 200 Heat Exchanger Baffle
24 in stock
Item #: 471642
$6.80
471767
38 MiniMax NT STD Upper Jacket Subplate
1 in stock
Item #: 471767
$71.37
