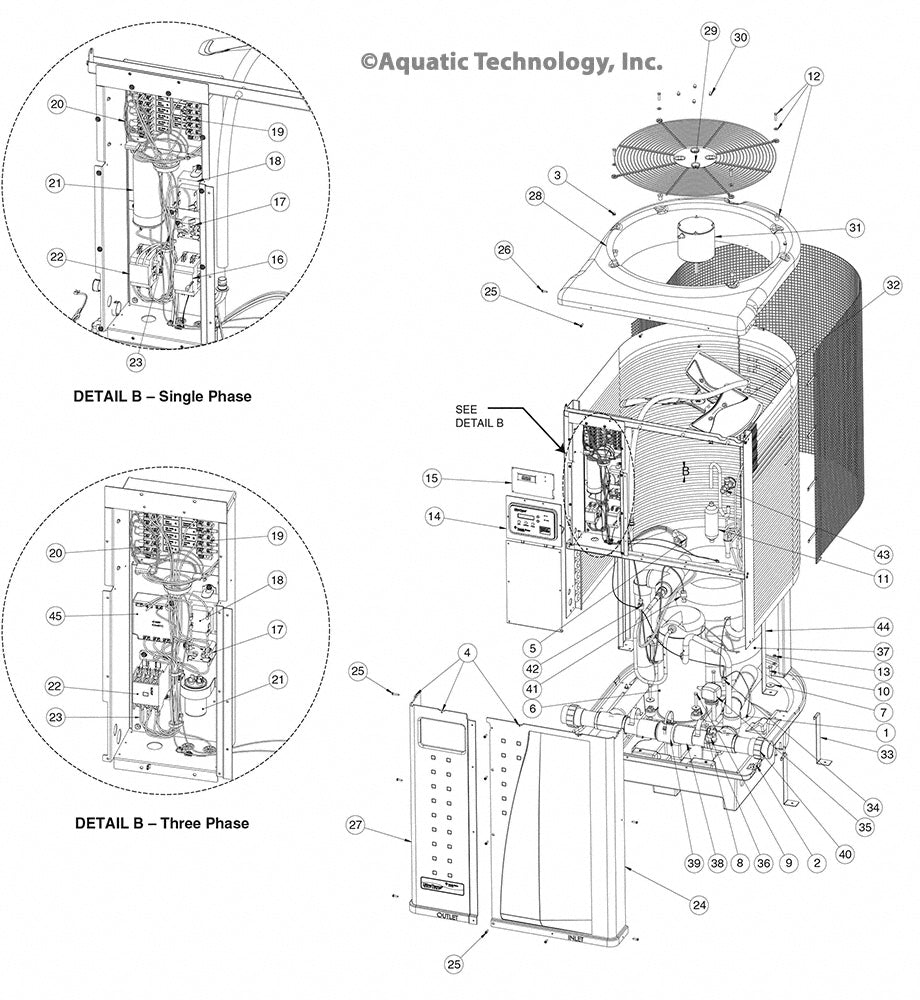

Pentair Ultratemp Heat Pump Parts Diagram | 64 parts

Frequently Purchased

	ThermalFlo Heat Control Board Assembly - 472734 36 in stock	$407.24
	UltraTemp Control Board Bezel With Label - 473777 1 in stock	$178.79
	MiniMax Plus Fan Guard Fastener Kit - 470441 15 in stock	$14.90
	UltraTemp Capacitor With Bracket - 473731 125 in stock	$116.07
	WhisperFlo/IntelliFlo Hex Head Nut - 1/4-20 - 071406 11 in stock	$3.39

Any key items not listed on the above schematic are no longer available.

Sort Products:
Key
Popularity

15 ThermalFlo Heat Control Board Assembly

36 in stock

Item #: 472734

$407.24

14 UltraTemp Control Board Bezel With Label

1 in stock

Item #: 473777

$178.79

12 MiniMax Plus Fan Guard Fastener Kit

15 in stock

Item #: 470441

$14.90

21 UltraTemp Capacitor With Bracket

125 in stock

Item #: 473731

$116.07

13 WhisperFlo/IntelliFlo Hex Head Nut - 1/4-20

11 in stock

Item #: 071406

$3.39

40 Pentair Heat Pump Union - 2 Inch

156 in stock

Item #: 473381

$51.48

31 UltraTemp Fan Motor With Acorn Nut Kit

35 in stock

Item #: 473785

$364.81

29 UltraTemp Fan Guard - 24 Inches

10 in stock

Item #: 473786

$169.78

33 UltraTemp Tie Down Bracket

15 in stock

Item #: 470137

$37.10

21 UltraTemp MiniMax Plus Capacitor - 3-Phase

9 in stock

Item #: 473154

$87.79

1 ThermalFlo Titanium Probe Thermistor Defrost Sensor

27 in stock

Item #: 473665

$68.24

34 MiniMax 150-400 Thermistor Probe

111 in stock

Item #: 471566

$81.10

36 MiniMax NT 200-400 Water Pressure Switch

Allow 1-2 Months to Ship

Item #: 473605

$101.42

27 UltraTemp Left Front Panel With Decal

Allow 1-2 Months to Ship

Item #: 473755

$270.12

28 UltraTemp Heat Pump Top - Almond

Allow 1-2 Months to Ship

Item #: 473773

$410.59

30 ThermalFlo Acorn Nut #10-32 - Stainless Steel

Allow 1-2 Months to Ship

Item #: 470439

$9.74

2 ThermalFlo J-Clip Nut

Allow 1-2 Months to Ship

Item #: 470284

$5.85

4 UltraTemp U-Clip Nut

Allow 1-2 Months to Ship

Item #: 470281

$6.08

5 UltraTemp Compressor Wire Harness

Allow 1-2 Months to Ship

Item #: 473732

$125.15

5 UltraTemp 120HC/110 3-Phase Thermostatic Expansion Valve - 8 Tons

Allow 1-2 Months to Ship

Item #: 474010

$126.28

6 UltraTemp Copeland Compressor Scroll

Allow 1-2 Months to Ship

Item #: 473734Z

$2,512.47

6 UltraTemp 110 Compressor Scroll Assembly

Allow 1-2 Months to Ship

Item #: 473735Z

$2,098.31

6 UltraTemp 90I Danfoss Compressor Scroll Kit

Allow 1-2 Months to Ship

Item #: 473780Z

$2,105.69

6 UltraTemp 120C/140C Danfoss Compressor Scroll Assembly

Allow 1-2 Months to Ship

Item #: 474011Z

$2,279.44

6 UltraTemp 100I Danfoss Compressor Scroll Assembly

Allow 1-2 Months to Ship

Item #: 474081Z

$2,302.80

8 UltraTemp Compressor Isolation Kit

Allow 1-2 Months to Ship

Item #: 473736

$45.73

9 UltraTemp Bolt 5/16-18 x 2 Inches - Stainless Steel

Allow 1-2 Months to Ship

Item #: 473745

$7.90

10 Hex Head Bolt 5/16-18 x 1 Inch

16 in stock

Item #: 98219800

$4.12

11 UltraTemp MiniMax Single Dryer Line - 1/2 Inch

Allow 1-2 Months to Ship

Item #: 473121

$123.06

11 UltraTemp 120HC Reversible Drier - 1/2 Inch

Allow 1-2 Months to Ship

Item #: 473139

$281.88

17 MiniMax Plus ThermalFlo Fan Relay

11 in stock

Item #: 473150

$115.25

18 ThermalFlo MiniMax Plus Transformer

17 in stock

Item #: 473155

$175.18

19 ThermalFlo UltraTemp Fan Terminal Block Compressor

Allow 1-2 Months to Ship

Item #: 473422

$110.37

20 ThermalFlo Wire Harness Terminal Block Sensor

Allow 1-2 Months to Ship

Item #: 473315

$125.71

21 UltraTemp 100I Capacitor

8 in stock

Item #: 470146

$105.44

22 ThermalFlo MiniMax Heat Pump Compressor Contactor

8 in stock

Item #: 473149

$206.72

22 UltraTemp Contactor

Allow 1-2 Months to Ship

Item #: 473778

$407.90

23 ThermalFlo UltraTemp Main Wire Harness

Allow 1-2 Months to Ship

Item #: 473423

$110.96

23 UltraTemp 120C/140C 3-Phase Main Wire Harness

Allow 1-2 Months to Ship

Item #: 474021

$173.00

24 UltraTemp 70-90 Front Right Panel - Almond

Allow 1-2 Months to Ship

Item #: 473412

$222.10

24 UltraTemp 100I Almond Front Right Panel

Allow 1-2 Months to Ship

Item #: 473431

$319.39

24 UltraTemp Front Right Panel - Almond - 36 Inch

Allow 1-2 Months to Ship

Item #: 473742

$256.98

24 UltraTemp Right Panel - Black - 36 Inches

Allow 1-2 Months to Ship

Item #: 474194

$265.62

27 UltraTemp Front Left Panel With Decal - Black

Allow 1-2 Months to Ship

Item #: 474196

$270.67

27 UltraTemp Model 100I Front Panel With Decal

Allow 1-2 Months to Ship

Item #: 474202

$246.99

27 UltraTemp 70/90 Front Left Panel With Decal

Allow 1-2 Months to Ship

Item #: 474203

$233.37

28 UltraTemp Heat Pump Top - Black

Allow 1-2 Months to Ship

Item #: 474193

$483.78

32 UltraTemp Fan Blade

23 in stock

Item #: 473783

$208.61

35 UltraTemp ThermalFlo Water Pressure Switch Boot Cover

2 in stock

Item #: 473606

$12.69

37 UltraTemp 90/110I Titanium Heat Exchanger

Allow 1-2 Months to Ship

Item #: 472736

$2,639.92
