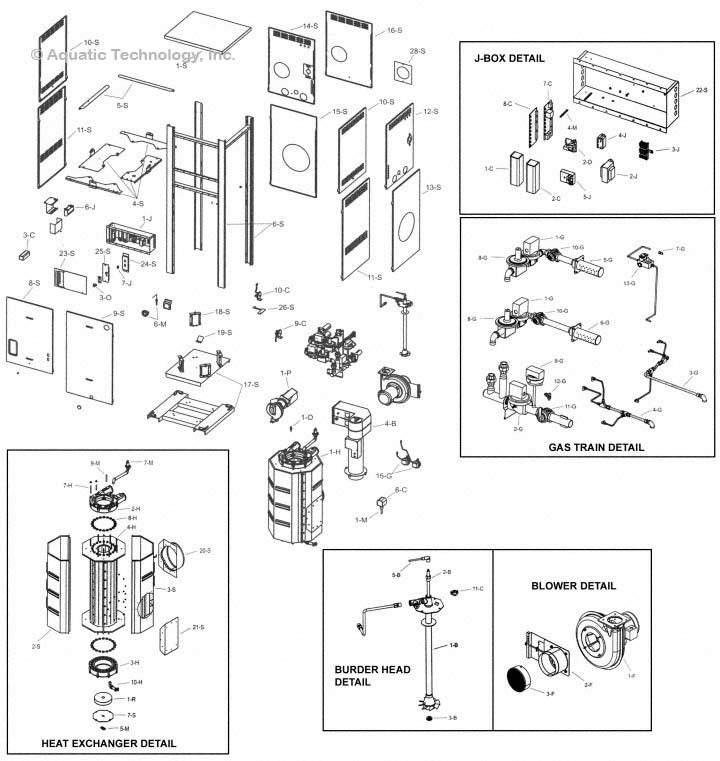

Raypak Commercial 751-1501 Advanced Design Boiler Heater Parts Diagram

Frequently Purchased

	P962-P1826 Model Flow Switch - Pre 4/25/16 - 007142F 31 in stock	$258.28
	PRV 125 PSI - 007224F 40 in stock	$118.75
	Remote Sensor Low Water Cut Off - 007228F 4 in stock	$105.20
	Rocker Switch SPST - 006872F 31 in stock	$48.96
	Thermostat Manual Reset - 006035F 51 in stock	$66.28

Any key items not listed on the above schematic are no longer available.

Sort Products:
Key
Popularity

6-C P962-P1826 Model Flow Switch - Pre 4/25/16

31 in stock

Item #: 007142F

$258.28

7-M PRV 125 PSI

40 in stock

Item #: 007224F

$118.75

1-O Remote Sensor Low Water Cut Off

4 in stock

Item #: 007228F

$105.20

7-J Rocker Switch SPST

31 in stock

Item #: 006872F

$48.96

11-C Thermostat Manual Reset

51 in stock

Item #: 006035F

$66.28

1-C High Limit 40-180F Auto Reset

Usually ships in 4 weeks

Item #: 006445F

$336.09

10-H Drain Valve 3/4 Inch NPT Faucet

Usually ships in 4 weeks

Item #: 006536F

$94.58

1-P Pump 115V Inline Brass 2 1/2 Inch Kit

Usually ships in 4 weeks

Item #: 007937F

$4,061.18

1-P Pump 115V Inline Cast Iron 2 1/2 INch Kit

Usually ships in 4 weeks

Item #: 007938F

$3,471.86

1-P Circulation Pump 115V Inline 2-1/2 Inch Cast Iron 1000

Usually ships in 4 weeks

Item #: 007357F

$2,003.53

4-S Support Heat Transfer ADB/MVB Kit

Usually ships in 4 weeks

Item #: 009107F

$179.22

1-P Circulation Pump 115V Inline 2-1/2 Inch Cast Iron 1000

Usually ships in 4 weeks

Item #: 007354F

$2,059.21

1-R Blanket Return Header Refractory ADB/MVB

Usually ships in 4 weeks

Item #: 007241F

$123.21

1-S Jacket Top 751-1501 Kit

Usually ships in 4 weeks

Item #: 009106F

$143.81

Not Shown Valve Pilot Mounting Bracket 500-1000

Usually ships in 4 weeks

Item #: 007198F

$43.24

1-P Circulation Pump 115V Inline 2 Inch Bronze 750

Usually ships in 4 weeks

Item #: 007347F

$2,399.77

7-M PRV 60 PSI Kit

Usually ships in 4 weeks

Item #: 007753F

$215.76

8-M Silicone Rubber Sealant 2.8 Oz Kit

Usually ships in 4 weeks

Item #: 008924F

$133.97

7-M PRV 45 PSI Kit

Usually ships in 4 weeks

Item #: 007751F

$294.90

7-M PRV 30 PSI Kit

Usually ships in 4 weeks

Item #: 007748F

$633.16

7-M PRV 150 PSI

Usually ships in 4 weeks

Item #: 007225F

$144.89

7-M PRV 45 PSI Kit

Usually ships in 4 weeks

Item #: 007346F

$136.75

3-O Reset/Test Switch

Usually ships in 4 weeks

Item #: 005641F

$97.17

5-S Support Jacket Upper 751-1501 Kit

Usually ships in 4 weeks

Item #: 009108F

$115.11

1-P Circulation Pump 115V Inline 2-1/2 Inch, Cast Iron

Usually ships in 4 weeks

Item #: 007233F

$1,634.82

1-P Circulation Pump 115V Inline Bronze 2-1/2 Inch 1000

Usually ships in 4 weeks

Item #: 007227F

$2,062.08

1-P Circulation Pump 115V Inline 2 Inch, Cast Iron

Usually ships in 4 weeks

Item #: 007232F

$1,178.93

1-P Circulation Pump 115V Inline 2 Inch Cast Iron 750

Usually ships in 4 weeks

Item #: 007353F

$1,485.54

6-S Support Jacket 1501 Kit

Usually ships in 4 weeks

Item #: 009111F

$163.53

19-S Reflector Panel ADB.MVB/Xtherm

Usually ships in 4 weeks

Item #: 007307F

$88.53

20-S Flue Exhaust Flange 750A Kit

Usually ships in 4 weeks

Item #: 008816F

$95.62

18-S Base Brackett Leg Support ADB/MVB/Xtherm

Usually ships in 4 weeks

Item #: 007306F

$251.00

17-S Base Assembly ADB/MVB Kit

Usually ships in 4 weeks

Item #: 009129F

$671.72

15-S Jacket Lower Rear 1501 Kit

Usually ships in 4 weeks

Item #: 009127F

$127.73

16-S Jacket Upper Rear Optional 751-1501 Kit

Usually ships in 4 weeks

Item #: 009128F

$139.34

21-S Flue Exhaust Cover750A Kit

Usually ships in 4 weeks

Item #: 008818F

$105.33

25-S Control Box Inner Panel 751-1501 Kit

Usually ships in 4 weeks

Item #: 009105F

$39.34

24-S Switch Panel 751-1501 Kit

Usually ships in 4 weeks

Item #: 009132F

$78.19

23-S Control Box Cover 751-1501 Kit

Usually ships in 4 weeks

Item #: 009131F

$86.24

21-S Flue Exhaust Cover 1000A Kit

Usually ships in 4 weeks

Item #: 008819F

$111.31

22-S Control Box Assembly 751-1501 Kit

Usually ships in 4 weeks

Item #: 009130F

$81.14

15-S Jacket Lower Rear 1001 Kit

Usually ships in 4 weeks

Item #: 009126F

$118.16

15-S Jacket Lower Rear 751 Kit

Usually ships in 4 weeks

Item #: 009125F

$110.51

9-S Jacket Lower Front 751 Kit

Usually ships in 4 weeks

Item #: 009113F

$115.61

9-S Jacket Lower Front 1001 Kit

Usually ships in 4 weeks

Item #: 009114F

$123.26

9-S Jacket Lower Front 1501 Kit

Usually ships in 4 weeks

Item #: 009115F

$132.83

8-S Jacket Upper Front 751-1501 Kit

Usually ships in 4 weeks

Item #: 009112F

$127.22

7-S Return Header Cover ADB.MVB

Usually ships in 4 weeks

Item #: 007257F

$104.73

6-S Support Jacket 1001 Kit

Usually ships in 4 weeks

Item #: 009110F

$183.06

7-M PRV 60 PSI Kit

Usually ships in 4 weeks

Item #: 007222F

$137.31
