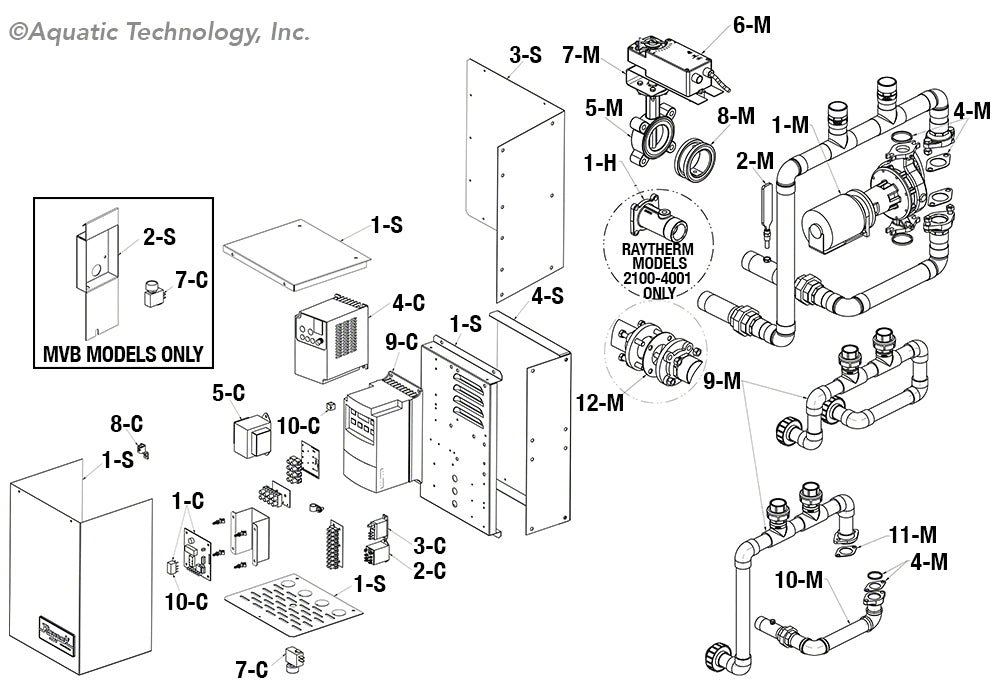

Raypak Commercial Cold Water Run Hi Delta Heater Parts Diagram | 17 parts

Raypak Commercial Cold Water Run Hi Delta Heater Parts

Frequently Purchased

	Sensor Water Tekmar Kit - 010787F 23 in stock	$77.91
	Gasket Pump Flange 2 Bolt Kit - 013423f Usually ships in 4 weeks	$148.84
	Relay 24Vac SPDT No/Nc Kit - 009039F Usually ships in 4 weeks	$72.63
	Circulation Pump 115V Inline 2-1/2 Inch Cast Iron 1000 - 007354F Usually ships in 4 weeks	$2,125.89
	Circulation Pump 115V Inline 2-1/2 Inch Cast Iron 1000 - 007357F Usually ships in 4 weeks	$2,073.71

Any key items not listed on the above schematic are no longer available.

Sort Products:
Key
Popularity

010787F

6-C Sensor Water Tekmar Kit

23 in stock

Item #: 010787F

$77.91

013423f

4-M Gasket Pump Flange 2 Bolt Kit

Usually ships in 4 weeks

Item #: 013423f

$148.84

009039F

3-C Relay 24Vac SPDT No/Nc Kit

Usually ships in 4 weeks

Item #: 009039F

$72.63

007354F

1-M Circulation Pump 115V Inline 2-1/2 Inch Cast Iron 1000

Usually ships in 4 weeks

Item #: 007354F

$2,125.89

007357F

1-M Circulation Pump 115V Inline 2-1/2 Inch Cast Iron 1000

Usually ships in 4 weeks

Item #: 007357F

$2,073.71

012315F

1-S Control Box Sheet Metal CWR Kit

Usually ships in 4 weeks

Item #: 012315F

$97.61

012669F

3-M Pump Injector 230/460V Brass 1/3 HP 3-Phase Kit

Usually ships in 4 weeks

Item #: 012669F

$1,461.90

007232F

1-M Circulation Pump 115V Inline 2 Inch, Cast Iron

Usually ships in 4 weeks

Item #: 007232F

$1,225.87

012316F

1-H Inlet Adapter 2-1/2 Inches NPT Kit

Usually ships in 4 weeks

Item #: 012316F

$440.34

012984F

9-C Inverter 120/240Vac Kit

Usually ships in 4 weeks

Item #: 012984F

$1,504.59

011835F

4-C Inverter 3-Phase 240Vac 1/2 HP Kit

Usually ships in 4 weeks

Item #: 011835F

$1,504.59

011720F

2-C Relay 24Vac DPDT No Kit

Usually ships in 4 weeks

Item #: 011720F

$80.70

013070F

10-C Chip Inverter Programmed Kit

Usually ships in 4 weeks

Item #: 013070F

$376.07

011718F

5-C MVB XTherm Transformer - 115/230 Volts

Usually ships in 4 weeks

Item #: 011718F

$76.13

011717F

1-C PC Board Cold Water Start/Run Kit

Usually ships in 4 weeks

Item #: 011717F

$435.85

007155F

8-C Wire Bonding 14/6 Connector Kit

Usually ships in 4 weeks

Item #: 007155F

$29.22

005641F

7-C Reset/Test Switch

Usually ships in 4 weeks

Item #: 005641F

$103.28
