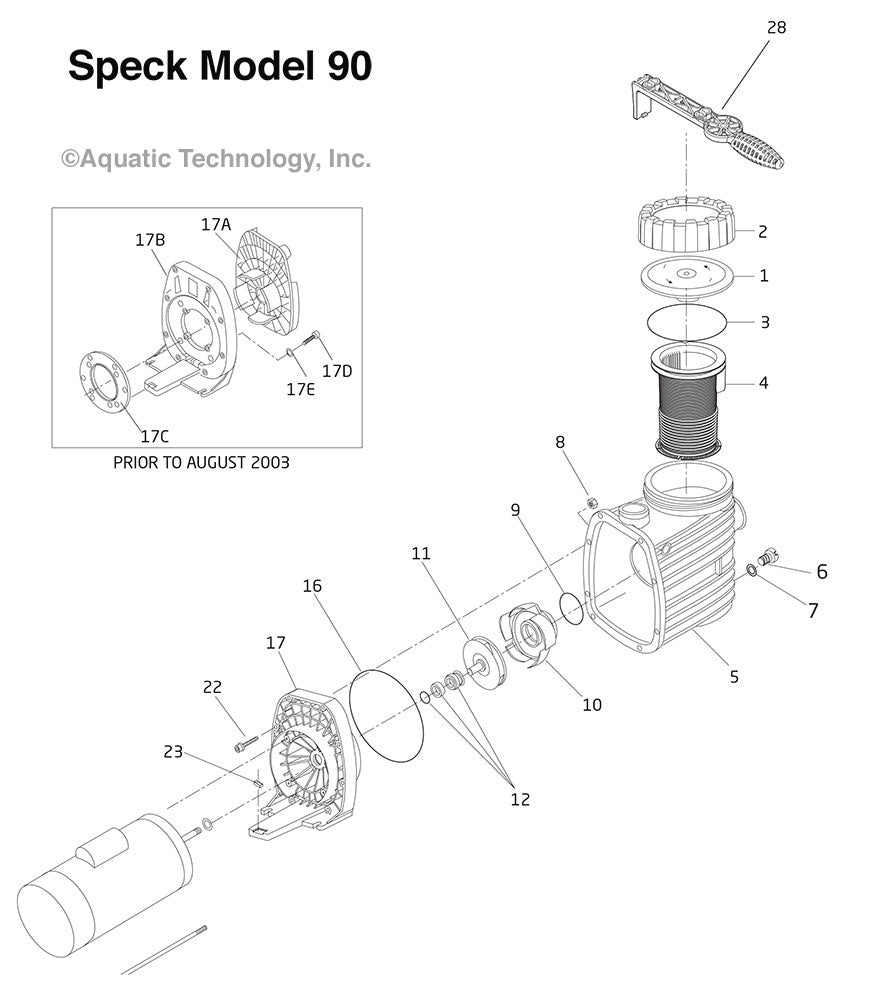

Speck E90 Pump Parts Diagram | 21 parts

Speck E90 Pump Parts

Frequently Purchased

2920141210
 		72/S90/Badu Ecom Diffuser O-Ring - 90 x 5 mm - 2920141210
136 in stock
 $5.60
2921606204
 		Mechanical Seal Assembly - 5/8 Inch Carbon/Ceramic - 2921606204
38 in stock
 $55.09
2921141222
 		Casing O-Ring 190 x 6MM For Model S90 Speck Pump - 2921141222
32 in stock
 $37.77
UST1152
 		1-1/2 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Up-Rated - UST1152
740 in stock
 $343.11
UST1102
 		1 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Up-Rated - UST1102
294 in stock
 $294.85
Any key items not listed on the above schematic are no longer available.
2920141210
9 72/S90/Badu Ecom Diffuser O-Ring - 90 x 5 mm
136 in stock
Item #: 2920141210
$5.60
2921606204
12 Mechanical Seal Assembly - 5/8 Inch Carbon/Ceramic
38 in stock
Item #: 2921606204
$55.09
2921141222
16 Casing O-Ring 190 x 6MM For Model S90 Speck Pump
32 in stock
Item #: 2921141222
$37.77
UST1152
Motor 1-1/2 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Up-Rated
740 in stock
Item #: UST1152
$343.11
UST1102
Motor 1 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Up-Rated
294 in stock
Item #: UST1102
$294.85
2901116010
2 Lid - Clear
Allow 1-2 weeks to ship
Item #: 2901116010
$68.97
More Info
2921110127
5 Casing E90 Gray Pp Tv20 Gray
Allow 1-2 weeks to ship
Item #: 2921110127
$296.30
More Info
2921117412
10 Badu EcoM2/EcoM3/MV and S90 Diffuser
6 in stock
Item #: 2921117412
$123.83
UST1072
Motor 3/4 HP Pump Motor 56J Frame Threaded Shaft - 1-Phase 115/230 Volts 60 Hz- Up-Rated
144 in stock
Item #: UST1072
$277.45
UST1202
Motor 2 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Up-Rated
272 in stock
Item #: UST1202
$434.99
2901116020
1 Lock Ring- Lid Prior to 2015
Allow 1-2 weeks to ship
Item #: 2901116020
$71.30
More Info
2921141215
3 Generic Pump Lid O-Ring for E90 and E98
3515 in stock
Item #: 2921141215
$5.52
2923591201
6 Drain Plug With O-Ring - 1/4 Inch
1 in stock
Item #: 2923591201
$6.85
2991300035
8 Locknut Casing Bolt, Serrated (1/4-20 Inches) Stainless Steel
Allow 1-2 weeks to ship
Item #: 2991300035
$5.85
More Info
2921923093
11.2 E90-III/E45-III Impeller - 1-1/2 HP - 2 THP
Allow 1-2 weeks to ship
Item #: 2921923093
$127.94
More Info
2921923094
11.3 E90-IV Impeller - 2 HP
Allow 1-2 weeks to ship
Item #: 2921923094
$160.19
More Info
2921116112
17 Flange/Seal Housing with Insert
Allow 1-2 weeks to ship
Item #: 2921116112
$265.55
More Info
2920889410
23 Lego Spacer
Allow 1-2 weeks to ship
Item #: 2920889410
$1.79
More Info
2921111300
17B Flange (Prior to August 2003)
Allow 1-2 weeks to ship
Item #: 2921111300
$107.74
More Info
2991400024
17E Washer For Flange Bolt 1/4 Inch Stainless (Prior to August 2003)
Allow 1-2 weeks to ship
Item #: 2991400024
$1.52
More Info
2921157700
Optional Part Spanner- Lid Prior to January 2015
Allow 1-2 weeks to ship
Item #: 2921157700
$61.74
More Info
