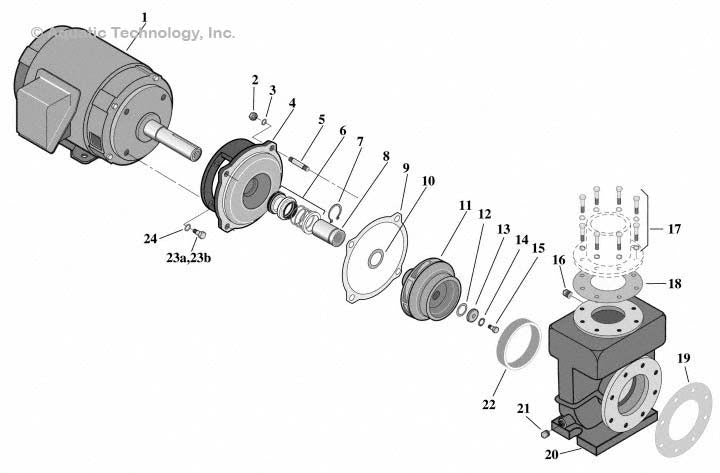

Sta-Rite CSPH/CCSPH Series Pump Parts Diagram

Sta-Rite CSPH/CCSPH Series Pump Parts

Frequently Purchased

33455-8044
 		CSPH/CCSPH 15 HP Impeller to Shaft Sleeve Cork Gasket - 33455-8044
4 in stock
 $14.67
16830-0212
 		CSPH/CCSPH Impeller - 20 HP - 16830-0212
3 in stock
 $1,541.72
S16767
 		Retaining Ring - S16767
Allow 1-2 Months to Ship
 $62.44
16830-0210
 		CSPH/CCSPH Impeller - 10 HP - 16830-0210
1 in stock
 $1,063.20
33450-8041
 		CSP Series Volute Suction Gasket - 6 Inch - 33450-8041
Allow 1-2 Months to Ship
 $39.96
Any key items not listed on the above schematic are no longer available.
33455-8044
10a CSPH/CCSPH 15 HP Impeller to Shaft Sleeve Cork Gasket
4 in stock
Item #: 33455-8044
$14.67
16830-0212
11 CSPH/CCSPH Impeller - 20 HP
3 in stock
Item #: 16830-0212
$1,541.72
S16767
7 Retaining Ring
Allow 1-2 Months to Ship
Item #: S16767
$62.44
More Info
16830-0210
11 CSPH/CCSPH Impeller - 10 HP
1 in stock
Item #: 16830-0210
$1,063.20
33450-8041
19 CSP Series Volute Suction Gasket - 6 Inch
Allow 1-2 Months to Ship
Item #: 33450-8041
$39.96
More Info
S32014
6 CSPH/CCSPH Mechanical Shaft Seal
9 in stock
Item #: S32014
$166.46
16830-0209
11 CSPH/CCSPH Impeller - 7.5 HP
18 in stock
Item #: 16830-0209
$1,250.16
16830-0211
11 CSPH/CCSPH Impeller - 15 HP
2 in stock
Item #: 16830-0211
$1,211.19
S11207
7 Retainer Ring Sta-Rite
12 in stock
Item #: S11207
$36.28
L05328
4 CSPH/CSPH2 Bracket for 7.5, 10, 15 HP
5 in stock
Item #: L05328
$340.52
16830-0120
22 CCSPH 7.5-20HP Wear Ring
9 in stock
Item #: 16830-0120
$130.10
33450-8042
18 CSP Series Volute Discharge Gasket
9 in stock
Item #: 33450-8042
$32.63
38917-0203
13 CSPH Impeller Washer
12 in stock
Item #: 38917-0203
$93.52
33455-8046
10 CSPH/CCSPH 20 HP Impeller to Shaft Sleeve Cork Gasket
3 in stock
Item #: 33455-8046
$11.87
16830-0100
20 CSPH/CSPH2 Pump Volute - 7.5/10 HP
Allow 1-2 Months to Ship
Item #: 16830-0100
$2,669.35
More Info
16830-2201
4 CCSPH/5CCSPH 3-Phase Pump Motor Bracket
Allow 1-2 Months to Ship
Item #: 16830-2201
$1,005.21
More Info
U78-59D
21 Plug Pipe 1/2 Inch Square HD Brass
Allow 1-2 Months to Ship
Item #: U78-59D
$15.25
More Info
S28574BD
1 20 HP Pump Motor Berkeley 254JM Frame - 3-Phase 230/460 Volts - ODP
Allow 3-5 Months to Ship
Item #: S28574BD
$2,525.63
More Info
S22353BD
1 7-1/2 HP Pump Motor Berkeley 184JM Frame - 3-Phase 230/460 Volts - ODP
Allow 3-5 Months to Ship
Item #: S22353BD
$1,114.80
More Info
U43-12SS
3 Lock Washer 3/8 Inch
22 in stock
Item #: U43-12SS
$3.36
L05329
4 CSPH 7.5 HP 3-Phase Bracket
Allow 1-2 Months to Ship
Item #: L05329
$266.36
More Info
16830-2203
4 CCSPH 1-Phase Motor Bracket - Cast Iron
Allow 1-2 Months to Ship
Item #: 16830-2203
$1,076.18
More Info
16830-2202
4 CCSPH/5CCSPH 20 HP 3-Phase Motor Bracket
Allow 1-2 Months to Ship
Item #: 16830-2202
$1,115.40
More Info
