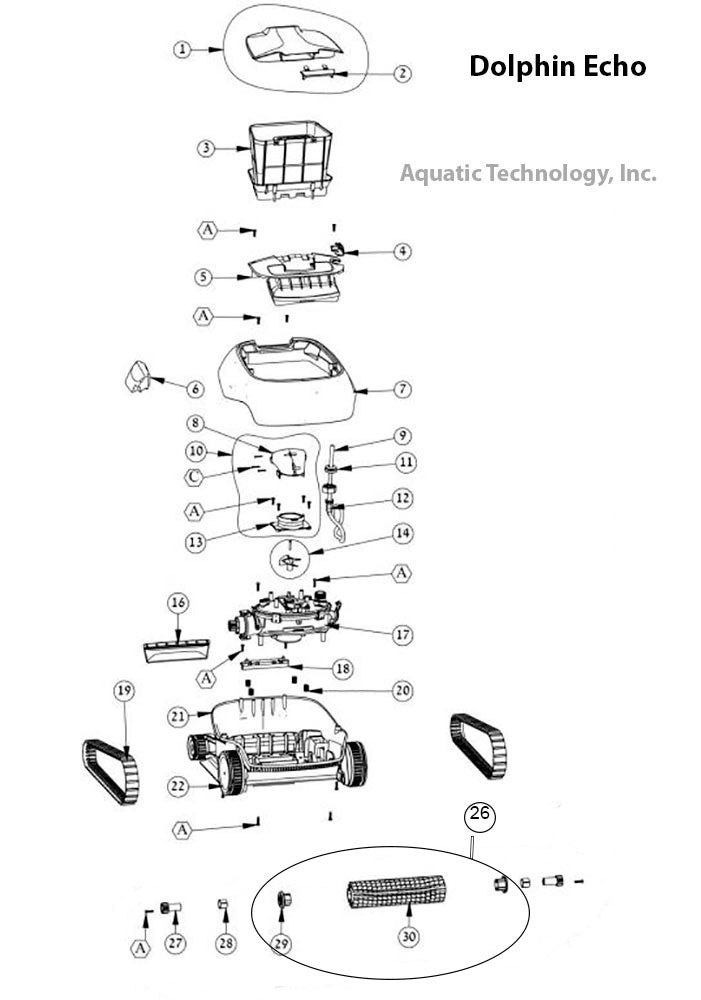

Dolphin Echo Parts Diagram

Frequently Purchased

	Dolphin Wheel Bushing - 9983114 379 in stock	$2.40
	Dolphin Impeller With Screw - Black - 9995266-R1 240 in stock	$17.90
	Dolphin Large Cable Float - Blue - 99960081 37 in stock	$14.60
	Dolphin Active Brush Gear Z12 - 9983018 366 in stock	$2.40
	Echo, Encore, Explorer E20 Cable - 2-Wire - 50 Feet - 9995884-DIY 22 in stock	$94.04

Any key items not listed on the above schematic are no longer available.

Sort Products:
Key
Popularity

22-5 Dolphin Wheel Bushing

379 in stock

Item #: 9983114

$2.40

14 Dolphin Impeller With Screw - Black

240 in stock

Item #: 9995266-R1

$17.90

9-98 Dolphin Large Cable Float - Blue

37 in stock

Item #: 99960081

$14.60

27 Dolphin Active Brush Gear Z12

366 in stock

Item #: 9983018

$2.40

9 Echo, Encore, Explorer E20 Cable - 2-Wire - 50 Feet

22 in stock

Item #: 9995884-DIY

$94.04

3-C Dolphin Ultra-Fine Filter Basket

Allow 14-21 Days to Ship

Item #: 9991460-R1

$79.99

28 S50/S100 Active Brush Bushing

126 in stock

Item #: 9983042

$2.17

9-95-140 Dolphin Cable Connector

7 in stock

Item #: 1811404

$2.42

29 S50/S100 Active Brush Adaptor

74 in stock

Item #: 9983017

$4.40

22-9 Prowler 910/917 Small Wheel - White

30 in stock

Item #: 9983015

$6.02

19 Dolphin Tracks - Gray - Set of 2 - S300

19 in stock

Item #: 9983152-R2

$53.99

Prowler 910/917 Front Wheel - White

2 in stock

Item #: 99834101

$5.43

9-98-1 Dolphin One-Half Cable Float Cover - Blue

16 in stock

Item #: 9982263

$6.02

30 Dolphin Front Active Brush - Gray

5 in stock

Item #: 9983122-R1

$14.84

9-97 Dolphin Amphenol Plug

4 in stock

Item #: 5000009

$36.58

9-95-145 Dolphin Cable Connection - Three Pin

Allow 14-21 Days to Ship

Item #: 9985048

$4.46

26 Dolphin E10/E20 Active Brush Assembly - Gray

39 in stock

Item #: 9995544-ASSY

$38.80

22-1 E10/Echo/T15 Large Wheel Cover - White

17 in stock

Item #: 9983014

$5.35

3-1 Spring Filter Basket Assembly

Allow 14-21 Days to Ship

Item #: 9991459-R1

$112.68

3-12 Saturn/Echo Ultra-Fine Filters - Set of 4

Allow 14-21 Days to Ship

Item #: 9991466-R4

$102.41

16 Nautilus CC Rapid Drain Flap

Allow 14-21 Days to Ship

Item #: 9983024-R1

$9.09

1 Echo Rear Lid Assembly - Orange

Allow 14-21 Days to Ship

Item #: 99952135-ASSY

$40.38

2 Echo Latch 02

Allow 14-21 Days to Ship

Item #: 9983008

$4.46

3-1-11 Saturn/Echo Fine Filters - Set of 4

Allow 14-21 Days to Ship

Item #: 9991468-R4

$53.17

3-1-12 Dolphin Filter Handle Knob

Allow 14-21 Days to Ship

Item #: 9983027

$4.65

3-1-13 Dolphin Filter Handle Spring

Allow 14-21 Days to Ship

Item #: 3917029

$10.49

3-1-14 Dolphin Filter Handle 1

Allow 14-21 Days to Ship

Item #: 9983004

$8.40

3-1-15 Dolphin Filter Frame Top

Allow 14-21 Days to Ship

Item #: 9983037

$12.20

3-1-16 Nautilus CC Filter Flap

Allow 14-21 Days to Ship

Item #: 9983025

$4.46

3-1-18 Nauitlus CC Filter Holder

Allow 14-21 Days to Ship

Item #: 9983026

$4.46

3-1-A Dolphin Screw KA30X8 WN1412 A2

Allow 14-21 Days to Ship

Item #: 3303008-A

$1.78

3-1-B Dolphin KA40X12 Filter Screen Screw

Allow 14-21 Days to Ship

Item #: 3379450-A

$2.42

3-D-11 Explorer E20 Front and Rear Spring Filters

Allow 14-21 Days to Ship

Item #: 9991462-R2

$36.95

4 Echo Lid Grommet - Orange

Allow 14-21 Days to Ship

Item #: 9983023

$4.59

5 Echo Handle Assembly - Orange

Allow 14-21 Days to Ship

Item #: 99957096-ASSY

$28.26

6 Nautilus CC Upper Float and Housing

Allow 14-21 Days to Ship

Item #: 9991741

$2.49

8 Dolphin Nozzle Tube Small Left and Right Assembly

Allow 14-21 Days to Ship

Item #: 9991740

$2.42

9-95 Dolphin Retrofit for Cable Connection 2015

2 in stock

Item #: 9991271

$25.01

9-95-141 Dolphin Cable Connection O-Ring

Allow 14-21 Days to Ship

Item #: 3861002

$2.45

9-95-142 Dolphin Washer - ID 13mm

Allow 14-21 Days to Ship

Item #: 9980025

$2.42

9-95-143 Dolphin Nut for MBU Terminal 2015

Allow 14-21 Days to Ship

Item #: 9980797

$2.45

9-96 Dolphin Grommet Ref - Small

1 in stock

Item #: 9983126

$2.42

9-98-2 Dolphin Half Polystyrene Float for Cable

Allow 14-21 Days to Ship

Item #: 6250930

$4.51

10 Dolphin Manifold

Allow 14-21 Days to Ship

Item #: 9991742

$10.49

13 Echo/Nautilus CC Small Jet Tube

Allow 14-21 Days to Ship

Item #: 9983022

$8.40

18 Echo/Nautilus CC Outer Casing Adapter

Allow 14-21 Days to Ship

Item #: 9983019

$6.30

20 Dolphin Filter Spring

Allow 14-21 Days to Ship

Item #: 3917022

$4.46

21-1 Dolphin Inner Weight and Cover

Allow 14-21 Days to Ship

Item #: 9991746-ASSY

$10.49

21-6 Dolphin Lower Float and Housing

Allow 14-21 Days to Ship

Item #: 9991747

$4.59
