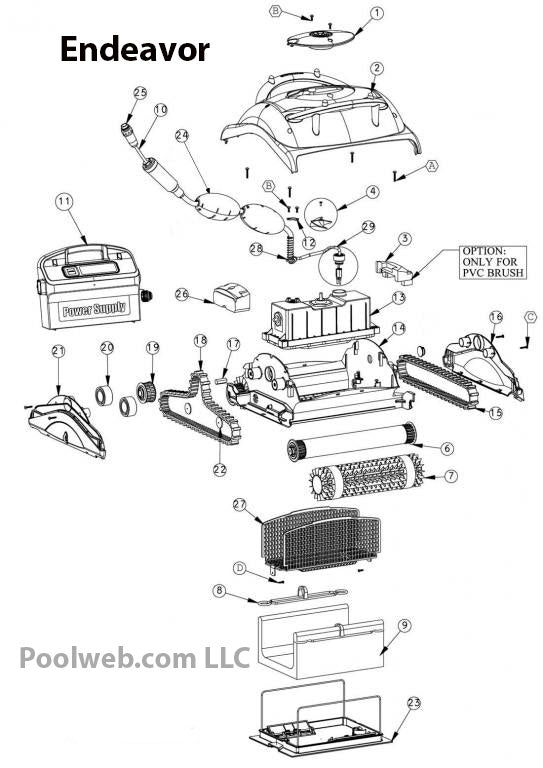

Dolphin Endeavor Parts Diagram | 55 parts

Frequently Purchased

	Wonder Climbing Brush Ring - Pack of 4 - 6101611-R4 Extended Manufacturer Lead Time	$60.71
	Dolphin Impeller With Screw - Yellow - 9995269-R1 7 in stock	$19.61
	Dolphin Large Cable Float - Blue - 99960081 Extended Manufacturer Lead Time	$14.23
	Dolphin Digital Power Supply Cable - 5898412LF 63 in stock	$18.15
	Dolphin Inner Wheel Tube Cork - 9982275 16 in stock	$2.51

Any key items not listed on the above schematic are no longer available.

Sort Products:
Key
Popularity

7-3 Wonder Climbing Brush Ring - Pack of 4

Extended Manufacturer Lead Time

Item #: 6101611-R4

$60.71

4 Dolphin Impeller With Screw - Yellow

7 in stock

Item #: 9995269-R1

$19.61

24 Dolphin Large Cable Float - Blue

Extended Manufacturer Lead Time

Item #: 99960081

$14.23

11-3 Dolphin Digital Power Supply Cable

63 in stock

Item #: 5898412LF

$18.15

6-5 Dolphin Inner Wheel Tube Cork

16 in stock

Item #: 9982275

$2.51

10-2 DX3, Neptune Diagnostic Swivel Cable - 2-Wire - 60 Feet

22 in stock

Item #: 9995861-DIY

$143.99

10-3 M3, Nautilus Plus, M200 Diagnostic Cable Swivel - 1.2 Meters

14 in stock

Item #: 9995793-DIY

$47.99

6-4 Diagnostic Basic Wheel Bearing

18 in stock

Item #: 3884073-ASSY

$22.03

7-2 DX3/DX4 Climbing Brushes - Gray - Pack of 2

3 in stock

Item #: 6101641-R2

$57.21

9-10 Diagnostic Basic Bottom Lid Latch

12 in stock

Item #: 9982330

$2.51

9-9 DX4/DX5 Hook Lock for Cartridge

12 in stock

Item #: 9985446

$2.51

29-140 Dolphin Cable Connector

7 in stock

Item #: 1811404

$2.54

29 Dolphin Advantage Retrofit Cable Connector - 3-Pin

Extended Manufacturer Lead Time

Item #: 9991279

$11.75

21-6 Dolphin Screw KA50X12 - A2 WN1412

10 in stock

Item #: 3379440-A

$2.51

19 Dolphin Drive Pulley TT

1 in stock

Item #: 3883645

$34.60

20 Guide Wheels With 1 Pulley Gear - 2 Pack

Extended Manufacturer Lead Time

Item #: 3884997-R3

$29.99

24-1 Dolphin One-Half Cable Float Cover - Blue

9 in stock

Item #: 9982263

$6.35

17 Dolphin D-Type Shaft Hexagon Adaptor

27 in stock

Item #: 3865005

$9.70

22 Diagnostic Basic Non Return Diaphragm

Extended Manufacturer Lead Time

Item #: 9980220

$10.73

25 Dolphin Amphenol Plug

1 in stock

Item #: 5000009

$37.27

29-145 Dolphin Cable Connection - Three Pin

Extended Manufacturer Lead Time

Item #: 9985048

$4.68

11-A Dolphin KA30X12 Screw

Extended Manufacturer Lead Time

Item #: 3379212

$2.54

12 Dolphin Diagnostic Basic Cable Holder

Extended Manufacturer Lead Time

Item #: 9982332

$4.68

29-144 Dolphin Plastic Washer - 7mm x 2mm

Extended Manufacturer Lead Time

Item #: 9985027

$2.54

6 Diagnostic Basic Wheel Tube Assembly

48 in stock

Item #: 99955951-ASSY

$53.07

6-3 Diagnostic Wheel Bearing Stopper Ring

2 in stock

Item #: 3885000

$2.51

9-11 Dolphin Diagnostic Basic Bottom Lid Spring

Extended Manufacturer Lead Time

Item #: 9982331

$2.54

11 Diagnostic Power Supply Plus Timer

74 in stock

Item #: 9995672-US-ASSY

$279.26

6-1 Dolphin Inner Wheel Tube for Diagnostic Basic Cleaners

Extended Manufacturer Lead Time

Item #: 6101914

$8.70

9-3 Endeavor Ultra-Fine Small Filters - Set of 4

87 in stock

Item #: 9991422-R4

$84.15

10-1 Deluxe 3, Nautilus Diagnostic Cable DIY - 60 Feet

7 in stock

Item #: 9995851-DIY

$149.33

11-2 Dolphin Amphenol Socket for Power Supply

Extended Manufacturer Lead Time

Item #: 5020011

$16.52

14 Dolphin Diagnostic Basic Chassis

Extended Manufacturer Lead Time

Item #: 9980200

$59.42

15 Dolphin DX Long-Short Combo Tracks - Gray - Pack of 2

Extended Manufacturer Lead Time

Item #: 9985015-R2

$64.44

WP-7 Dolphin Filter Bag and Bottom Lid Conversion Kit

Extended Manufacturer Lead Time

Item #: 99954307-RK1

$102.73

1 Endeavor Impeller Cover DB - Gray

Extended Manufacturer Lead Time

Item #: 9982289

$8.70

2 Endeavor Outer Casing

Extended Manufacturer Lead Time

Item #: 99952019-ASSY

$129.66

3 Dolphin Diagnostic Internal Float for Climbing Brush

Extended Manufacturer Lead Time

Item #: 6250944

$4.74

7-4 Dolphin Diagnostic Wonder Brush

Extended Manufacturer Lead Time

Item #: 6101610

$146.01

9 Dolphin W20 Ultra-Fine Filter Catridge Bottom Lid Conversion Kit

Extended Manufacturer Lead Time

Item #: 9991412-R1

$124.46

9-3-1 Supreme M3 Small Fine Filters - Set of 4

Extended Manufacturer Lead Time

Item #: 9991407-R4

$58.49

11-1 Dolphin Power Supply Amphenol Socket Cover

Extended Manufacturer Lead Time

Item #: 5020012

$11.88

16 DX3 Side Planel With Fins - Gray

Extended Manufacturer Lead Time

Item #: 9982322

$18.87

18 Timing Track - Gray - Single Track

Extended Manufacturer Lead Time

Item #: 9985006

$34.99

21 Atlantis/DX3 Side Panel and Wheel - Gray

Extended Manufacturer Lead Time

Item #: 9997113-ASSY

$41.90

DX3 Side Panel Wheel - Dark Gray

Extended Manufacturer Lead Time

Item #: M96500066

$23.04

21-5 Orion II Flat Washer for Side Panel Wheel

Extended Manufacturer Lead Time

Item #: 3500016

$2.57

24-2 Dolphin Half Polystyrene Float for Cable

Extended Manufacturer Lead Time

Item #: 6250930

$4.74

26 Dolphin Internal Float Regulator

Extended Manufacturer Lead Time

Item #: 6250931

$6.53

28 Dolphin 3-Wire Cable Spring

Extended Manufacturer Lead Time

Item #: 3917033

$4.74
