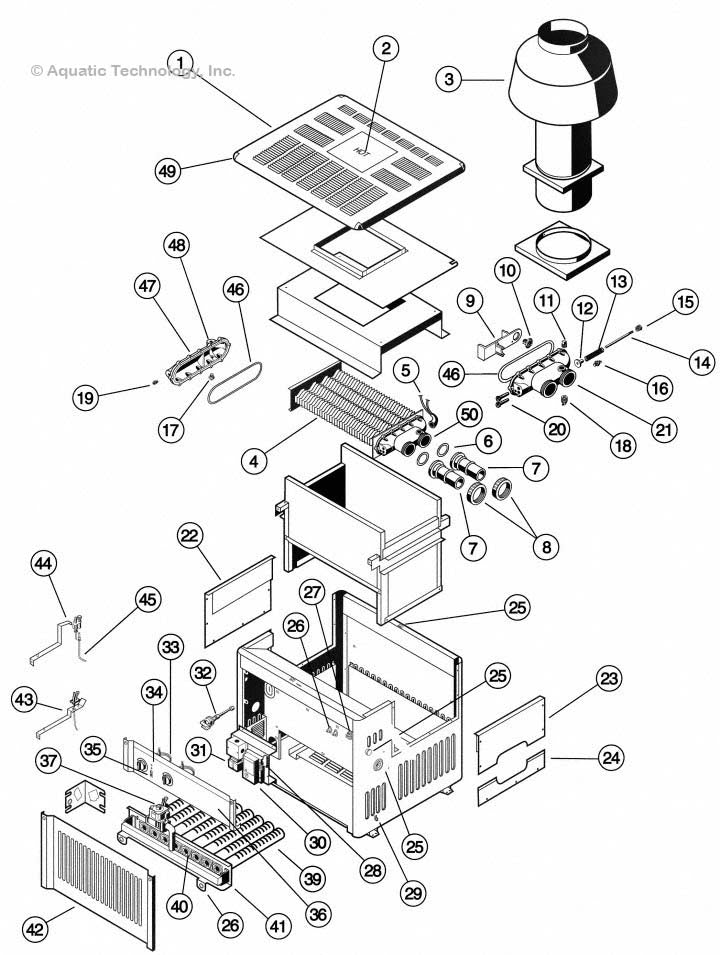

Hayward H-Series ED1 Heater Parts Diagram

Frequently Purchased

	H-Series Thermostat With Knob - HAXTST1930 26 in stock	$131.80
	Millivolt Wiring Harness - HAXWHA0001 14 in stock	$204.58
	H-Series ED1/ED2 Pressure Switch Assembly - HAXPSA1930 100 in stock	$124.67
	H-Series Front Header Assembly - ED1 Style - HAXFHA1931 2 in stock	$497.86
	ED1/ED2 Header O-Ring - HAXHOR1930 15 in stock	$39.94

Any key items not listed on the above schematic are no longer available.

Sort Products:
Key
Popularity

33 H-Series Thermostat With Knob

26 in stock

Item #: HAXTST1930

$131.80

Not Shown Millivolt Wiring Harness

14 in stock

Item #: HAXWHA0001

$204.58

32 H-Series ED1/ED2 Pressure Switch Assembly

100 in stock

Item #: HAXPSA1930

$124.67

48 H-Series Front Header Assembly - ED1 Style

2 in stock

Item #: HAXFHA1931

$497.86

44 ED1/ED2 Header O-Ring

15 in stock

Item #: HAXHOR1930

$39.94

31 H-Series Dual Voltage Transformer

16 in stock

Item #: CHXTRF1930

$114.91

8 Union Nuts (Set of 2)

34 in stock

Item #: HAXNut1930

$53.56

35 H-Series CZ/HM2 On/Off Switch

39 in stock

Item #: CHXTSW1930

$48.48

12 ED1/ED2 Bypass Valve Kit - Post 10/28/2000

10 in stock

Item #: HAXBPK1932

$125.01

37 Gas Valve 150 - 400 LP DS

5 in stock

Item #: HAXGSV0004

$556.10

42 Pilot Natural Millivolt

36 in stock

Item #: HAXPLT1931

$288.86

41 H-Series Ignitor and Bracket Assembly

59 in stock

Item #: HAXIGN1931

$150.49

39 Main Burner H-Series

16 in stock

Item #: HAXBRN1930

$159.64

6 ED1/ED2 Union O-Rings - Pack of 2

126 in stock

Item #: HAXFor1930

$21.29

37 Gas Valve 150 - 400 Natural MV

22 in stock

Item #: HAXGSV0001

$592.49

26 Temperature Limiters Kit

76 in stock

Item #: HAXTLK1930

$146.95

48 Front Header Only before 10/28/00

3 in stock

Item #: HAXFHA1930

$517.90

4 Heat Exchanger Assembly H400

5 in stock

Item #: HAXHXA1403

$2,344.01

42 PIilot LP Millivolt

29 in stock

Item #: HAXPLT1932

$288.45

7 ED1/ED2 Flange Pipe Nipple - CPVC - 2 Pack

39 in stock

Item #: HAXNIP1930

$95.66

19 H-Series Heater Pressure Switch Adapter

6 in stock

Item #: CHXPSA1930

$49.05

10 H-Series Flow Control Thermostat

17 in stock

Item #: HAXFCT1930

$108.51

45 Rear Header Only

Allow 3-6 Months to Ship

Item #: HAXRHD1930

$115.74

12 ED1 Bypass Kit - Pre 10/28/00

17 in stock

Item #: HAXBPK1931

$125.31

17 H-Series Hi-Limit Immersion Rear Header 160 Degrees F.

24 in stock

Item #: HMXHLI2932

$85.78

34 Green LED Kit

7 in stock

Item #: HAXLDK1930

$118.72

4 Heat Exchanger Assembly H300

4 in stock

Item #: HAXHXA1303

$2,021.40

37 Gas Valve 150 - 400 Natural DS

8 in stock

Item #: HAXGSV0005

$555.92

4 Heat Exchanger Assembly for H-150

13 in stock

Item #: HAXHXA1153

$1,538.87

20 H-Series Cotherm Thermostat Bulb Well

6 in stock

Item #: HAXTBW1930

$72.09

16 H-Series Hi-Limit 135 Degrees F

33 in stock

Item #: HAXHLI1930

$85.78

3 H-Series Millivolt Outdoor High Wind Draft Hood for H150

Allow 3-6 Months to Ship

Item #: HWS150

$454.09

40 Burner Orifice Natural

7 in stock

Item #: HAXBON1930

$31.78

40 Burner Orifice Natural HA

Allow 3-6 Months to Ship

Item #: HAXBON1931

$39.66

3 H-250 ED1 Millivolt Indoor Draft Hood

Allow 3-6 Months to Ship

Item #: DHI250

$493.94

3 H-150 ED1 Millivolt Indoor Draft Hood

Allow 3-6 Months to Ship

Item #: DHI150

$457.36

Not Shown H-Series Heater Manual Spark Ignitor

16 in stock

Item #: CHXMSI1930

$78.80

3 H-200 ED1 Millivolt Indoor Draft Hood

Allow 3-6 Months to Ship

Item #: DHI200

$466.59

31 Main Burner Orifice Propane - Heatmaster Model

17 in stock

Item #: CHXBOP1930

$114.61

3 H-Series Millivolt Outdoor High Wind Draft Hood for H250

Allow 3-6 Months to Ship

Item #: HWS250

$516.28

43 Pilot Tube Replacement Kit H150-H400 MV

23 in stock

Item #: HAXTRK1930

$70.06

36 Control Panel Assembly 250 MV

Allow 3-6 Months to Ship

Item #: HAXCPA2250

$307.14

21 Front Header Only

3 in stock

Item #: HAXFHD1930

$275.55

21 Front Header Only after 10/28/00

12 in stock

Item #: HAXFHD1931

$258.06

20 H-Series Heater All Gas Thermostat Bulb Well

5 in stock

Item #: CHXTBW1930

$63.39

18 H-Series Drain Valve Assembly

10 in stock

Item #: HAXDRV1930

$122.04

5 Electronic Wiring Harness, DS

Allow 3-6 Months to Ship

Item #: HAXWHA0003

$76.28

5 H-Series Millivolt ED1 Rear Wire Harness Hi-Limits

Allow 3-6 Months to Ship

Item #: HAXWHA0006

$244.57

30 Control Module

5 in stock

Item #: HAXMOD1930

$399.47

4 Heat Exchanger Assembly H350

2 in stock

Item #: HAXHXA1353

$2,136.95
