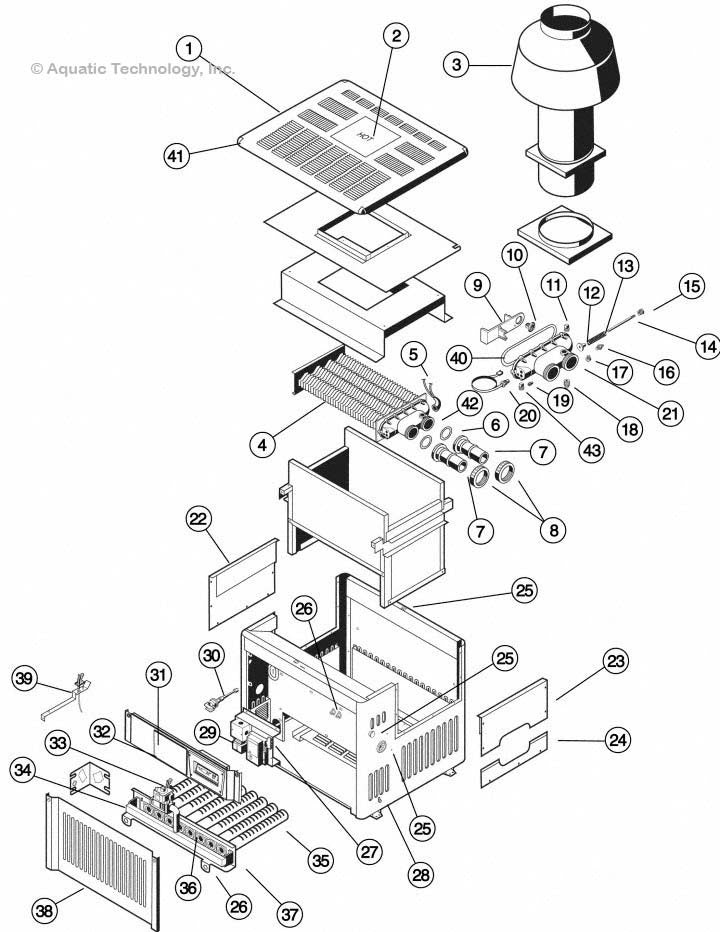

Hayward H-Series Milivolt And Electronic ED2 Heater Parts Diagram

Hayward H-Series Milivolt And Electronic ED2 Heater Parts

Frequently Purchased

HAXCPA3153
 		Control Panel Assembly 150 ED2 Rev. B Control Board - HAXCPA3153
2 in stock
 $767.77
HAXHOR1930
 		ED1/ED2 Header O-Ring - HAXHOR1930
15 in stock
 $39.94
HAXPSA1930
 		H-Series ED1/ED2 Pressure Switch Assembly - HAXPSA1930
100 in stock
 $124.67
CHXTRF1930
 		H-Series Dual Voltage Transformer - CHXTRF1930
16 in stock
 $114.91
HAXTLK1930
 		Temperature Limiters Kit - HAXTLK1930
76 in stock
 $146.95
Any key items not listed on the above schematic are no longer available.
HAXCPA3153
32 Control Panel Assembly 150 ED2 Rev. B Control Board
2 in stock
Item #: HAXCPA3153
$767.77
HAXHOR1930
38 ED1/ED2 Header O-Ring
15 in stock
Item #: HAXHOR1930
$39.94
HAXPSA1930
19 H-Series ED1/ED2 Pressure Switch Assembly
100 in stock
Item #: HAXPSA1930
$124.67
CHXTRF1930
29 H-Series Dual Voltage Transformer
16 in stock
Item #: CHXTRF1930
$114.91
HAXTLK1930
26 Temperature Limiters Kit
76 in stock
Item #: HAXTLK1930
$146.95
HAXFor1930
6 ED1/ED2 Union O-Rings - Pack of 2
126 in stock
Item #: HAXFor1930
$21.29
HAXNut1930
8 Union Nuts (Set of 2)
34 in stock
Item #: HAXNut1930
$53.56
HAXGSV0004
33 Gas Valve 150 - 400 LP DS
5 in stock
Item #: HAXGSV0004
$556.10
HAXIGN1931
37 H-Series Ignitor and Bracket Assembly
59 in stock
Item #: HAXIGN1931
$150.49
HAXBRN1930
35 Main Burner H-Series
16 in stock
Item #: HAXBRN1930
$159.64
HAXBPK1932
12 ED1/ED2 Bypass Valve Kit - Post 10/28/2000
10 in stock
Item #: HAXBPK1932
$125.01
HAXFCT1930
10 H-Series Flow Control Thermostat
17 in stock
Item #: HAXFCT1930
$108.51
IDXLFHA1930
40 H-Series Low NOx and Ed2 Front Header Assembly
13 in stock
Item #: IDXLFHA1930
$490.19
IDXLTER1930
20 H-Series IDL/ED2 Thermistor
Allow 3-6 Months to Ship
Item #: IDXLTER1930
$168.76
More Info
HAXNIP1930
7 ED1/ED2 Flange Pipe Nipple - CPVC - 2 Pack
39 in stock
Item #: HAXNIP1930
$95.66
HAXHXA1403
4 Heat Exchanger Assembly H400
5 in stock
Item #: HAXHXA1403
$2,344.01
HAXHXA1303
4 Heat Exchanger Assembly H300
4 in stock
Item #: HAXHXA1303
$2,021.40
HAXHXA1153
4 Heat Exchanger Assembly for H-150
13 in stock
Item #: HAXHXA1153
$1,538.87
HAXGSV0005
33 Gas Valve 150 - 400 Natural DS
8 in stock
Item #: HAXGSV0005
$555.92
HAXHLI1930
16 H-Series Hi-Limit 135 Degrees F
33 in stock
Item #: HAXHLI1930
$85.78
HMXHLI2932
17 H-Series Hi-Limit Immersion Rear Header 160 Degrees F.
24 in stock
Item #: HMXHLI2932
$85.78
HWS250
3 H-Series Millivolt Outdoor High Wind Draft Hood for H250
Allow 3-6 Months to Ship
Item #: HWS250
$516.28
More Info
HAXMan1350
34 Gas Manifold 350
1 in stock
Item #: HAXMan1350
$136.03
HAXBON1930
36 Burner Orifice Natural
7 in stock
Item #: HAXBON1930
$31.78
DHI150
3 H-150 ED1 Millivolt Indoor Draft Hood
Allow 3-6 Months to Ship
Item #: DHI150
$457.36
More Info
HAXWHA0008
Not Shown Electronic Wiring Harness
Allow 3-6 Months to Ship
Item #: HAXWHA0008
$210.40
More Info
HWS150
3 H-Series Millivolt Outdoor High Wind Draft Hood for H150
Allow 3-6 Months to Ship
Item #: HWS150
$454.09
More Info
HAXBON1931
36 Burner Orifice Natural HA
Allow 3-6 Months to Ship
Item #: HAXBON1931
$39.66
More Info
HAXHXA1203
4 Heat Exchanger Assembly H200
6 in stock
Item #: HAXHXA1203
$1,682.99
HAXFHD1931
21 Front Header Only after 10/28/00
12 in stock
Item #: HAXFHD1931
$258.06
DHI250
3 H-250 ED1 Millivolt Indoor Draft Hood
Allow 3-6 Months to Ship
Item #: DHI250
$493.94
More Info
HAXHXA1353
4 Heat Exchanger Assembly H350
2 in stock
Item #: HAXHXA1353
$2,136.95
HAXDRV1930
18 H-Series Drain Valve Assembly
10 in stock
Item #: HAXDRV1930
$122.04
HAXHXA1253
4 Heat Exchanger Assembly H250
16 in stock
Item #: HAXHXA1253
$1,954.49
HAXCPA3353
32 Control Panel Assembly 350 ED2 Rev. B Control Board
2 in stock
Item #: HAXCPA3353
$784.93
DHI200
3 H-200 ED1 Millivolt Indoor Draft Hood
Allow 3-6 Months to Ship
Item #: DHI200
$466.59
More Info
HAXCPA1932
31 Control Bezel Assembly ED2
Allow 3-6 Months to Ship
Item #: HAXCPA1932
$772.15
More Info
