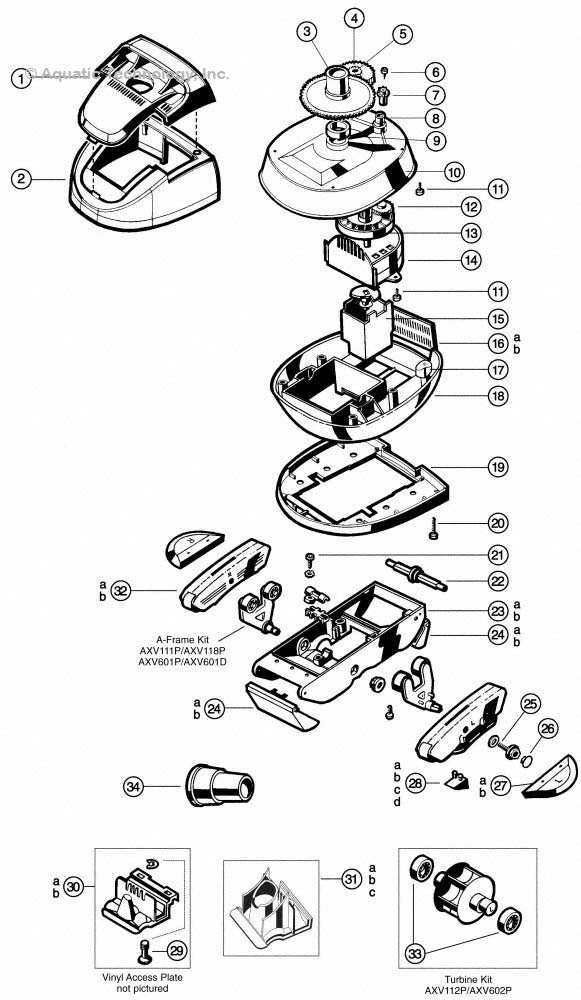

Hayward Pool Vac Ultra Parts Diagram

Hayward Pool Vac Ultra Parts

Frequently Purchased

AXV604WHP
 		PoolVac Wing Kit - White - AXV604WHP
35 in stock
 $26.85
AXV414P
 		Navigator Concrete POD Shoes - Pack of 4 - AXV414P
51 in stock
 $29.85
AXV434WHP
 		PoolVac XL Flap Kit - White - AXV434WHP
17 in stock
 $47.99
AXV417WHP
 		Pool Cleaner Pod Kit - White - AXV417WHP
10 in stock
 $78.49
AXV051AWH
 		PoolVac Screen - White - AXV051AWH
2 in stock
 $17.14
Any key items not listed on the above schematic are no longer available.
AXV604WHP
27 PoolVac Wing Kit - White
35 in stock
Item #: AXV604WHP
$26.85
AXV414P
28A Navigator Concrete POD Shoes - Pack of 4
51 in stock
Item #: AXV414P
$29.85
AXV434WHP
24 PoolVac XL Flap Kit - White
17 in stock
Item #: AXV434WHP
$47.99
AXV417WHP
31 Pool Cleaner Pod Kit - White
10 in stock
Item #: AXV417WHP
$78.49
AXV051AWH
16 PoolVac Screen - White
2 in stock
Item #: AXV051AWH
$17.14
AXV413P
28B Navigator Vinyl POD Shoes - Pack of 4
46 in stock
Item #: AXV413P
$37.35
AXV408P
15 PoolVac XL Gear Box Assembly - 304 Stainless Steel
36 in stock
Item #: AXV408P
$43.28
AXV055P
32 Pool Vac/Navigator Main Turbine Bearings - Pack of 2
6 in stock
Item #: AXV055P
$31.19
AXV093CP
33 Skimmer Adapter Cone
7 in stock
Item #: AXV093CP
$27.14
AXV014SP
28D Navigator/Aquabug Slotted Santoprene Shoe Kit - Pack of 4
14 in stock
Item #: AXV014SP
$36.46
AXV066A
8 PoolVac XL Spindle Gear Bushing
10 in stock
Item #: AXV066A
$26.81
AXV303
7 PoolVac XL Cone Spindle Gear
2 in stock
Item #: AXV303
$22.65
AXV301
4 PoolVac XL Intermmediate Gear
47 in stock
Item #: AXV301
$22.79
AXV060WH
10 Navigator Upper Middle Body - White
Allow 3-6 Months to Ship
Item #: AXV060WH
$125.74
More Info
AXV314P
29 Navigator/PoolVac Captive Screw With Retaining Clip
10 in stock
Item #: AXV314P
$8.48
AXV230DWH
23 PoolVac Open Lower Body - White
8 in stock
Item #: AXV230DWH
$73.85
AXV079VP
PoolVac/Navigator Medium Turbine Spindle Gear Kit
6 in stock
Item #: AXV079VP
$77.68
AXV306
9 PoolVac XL Cone Gear Bushing
41 in stock
Item #: AXV306
$23.23
AXV050CWH
18 HWD Pool Vac Lower Mid Body - White
4 in stock
Item #: AXV050CWH
$116.46
AXV062C
13 Navigator/PoolVac Medium Turbine - Turcite A
2 in stock
Item #: AXV062C
$39.71
AXV070
3 Navigator/PoolVac Cone Gear - Clear
22 in stock
Item #: AXV070
$120.66
AXV031B
22 Pool Vac/Navigator Flap Adjuster - Turcite A
8 in stock
Item #: AXV031B
$24.39
AXV603
30A PoolVac/Navigator Access Cover Assembly - White
9 in stock
Item #: AXV603
$24.46
AXV603A
30B PoolVac Vinyl Access Cover Assembly - White
Allow 3-6 Months to Ship
Item #: AXV603A
$30.35
More Info
V574P
Suction Cleaner In-Line Flow Gauge
18 in stock
Item #: V574P
$63.32
AXV313
21 PoolVac XL Lower Body Screw - M5 x 10mm
1 in stock
Item #: AXV313
$15.99
AXV068
6 Navigator/PoolVac Spindle Gear Screw
9 in stock
Item #: AXV068
$4.60
AXV309
5 PoolVac XL Intermediate Gear Shaft
8 in stock
Item #: AXV309
$5.13
AXV065P
11 Navigator/PoolVac Upper Body Screws - Pack of 6
13 in stock
Item #: AXV065P
$19.46
AXV009
14 Medium Turbine Case/Axle Assembly
3 in stock
Item #: AXV009
$79.06
AXV429WHP
19 PoolVac Ultra Bumper Assembly - White
13 in stock
Item #: AXV429WHP
$49.69
AXV014CP
28C Navigator Ceramic Pod Shoe - Pack of 4
Allow 3-6 Months to Ship
Item #: AXV014CP
$49.75
More Info
