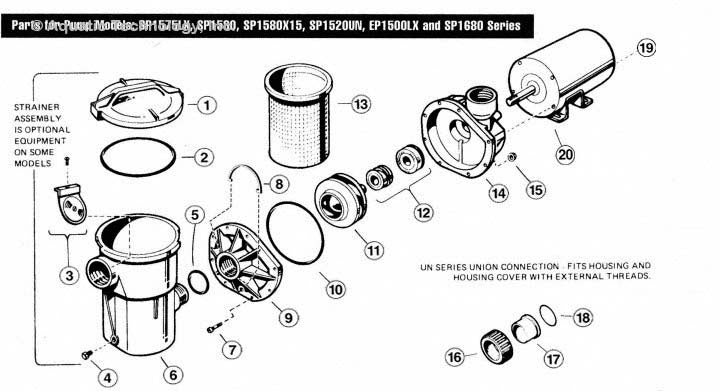

Hayward Power-Flo LX Pump Parts Diagram

Hayward Power-Flo LX Pump Parts

Frequently Purchased

SPX1700FG
 		Super Pump/MaxFlo Drain Plug With Gasket - SPX1700FG
6297 in stock
 $11.21
SPX1500KA
 		Hayward Pump Seal Kit for PowerFlo Series Pumps - SPX1500KA
Allow 3-5 Weeks to Ship
 $52.86
SPX1250RA
 		PowerFlo and MaxFlo Strainer Basket - SPX1250RA
65 in stock
 $28.17
SPX1520BT
 		PowerFlo LX Pump Housing Cover With External Thread - SPX1520BT
88 in stock
 $126.10
SPX3005R
 		Super Pump II and PowerFlo LX Impeller Ring - 3/4 HP to 2 HP - SPX3005R
43 in stock
 $13.29
Any key items not listed on the above schematic are no longer available.
SPX1700FG
4 Super Pump/MaxFlo Drain Plug With Gasket
6297 in stock
Item #: SPX1700FG
$11.21
SPX1500KA
12 Hayward Pump Seal Kit for PowerFlo Series Pumps
Allow 3-5 Weeks to Ship
Item #: SPX1500KA
$52.86
More Info
SPX1250RA
13 PowerFlo and MaxFlo Strainer Basket
65 in stock
Item #: SPX1250RA
$28.17
SPX1520BT
9 PowerFlo LX Pump Housing Cover With External Thread
88 in stock
Item #: SPX1520BT
$126.10
SPX3005R
O-Ring Super Pump II and PowerFlo LX Impeller Ring - 3/4 HP to 2 HP
43 in stock
Item #: SPX3005R
$13.29
SPX1500S8
Motor PowerFlo On/Off Switch
139 in stock
Item #: SPX1500S8
$53.84
SPX1500Cap
6 PowerFlo Strainer Housing With Basket
332 in stock
Item #: SPX1500Cap
$130.36
SPX1500N2
7 PowerFlo Hexagonal Head Housing Bolt #10-24
63 in stock
Item #: SPX1500N2
$1.29
SPX1500D2A
1 PowerFlo Strainer Cover With O-Ring
461 in stock
Item #: SPX1500D2A
$92.40
SPX1580AAT
14 PowerFlo LX Pump Housing With External Thread
2 in stock
Item #: SPX1580AAT
$134.75
SPX1580CH
11 PowerFlo LX HI-Performace Impeller - 1-1/2 HP
10 in stock
Item #: SPX1580CH
$75.51
SPX1515Z1E
Motor 1-1/2 HP Pump Motor 48Y Frame - 1-Speed 115 Volts 60 Hz With Switch
14 in stock
Item #: SPX1515Z1E
$435.07
SPX1500Z15S
Motor PowerFlo Motor Canopy With On/Off Switch
11 in stock
Item #: SPX1500Z15S
$106.87
SPX1500S9
Motor PowerFlo 3-Position Switch
37 in stock
Item #: SPX1500S9
$95.51
SPX1250WA
Motor PowerFlo NEMA Cord Set - 6 Foot - 14/3AWG
Allow 3-6 Months to Ship
Item #: SPX1250WA
$65.46
More Info
SPX1500LH
11 PowerFlo LX Hi-Performace Impeller - 1 HP
24 in stock
Item #: SPX1500LH
$73.08
SPX1500F
11 PowerFlo Pump Impeller - 3/4 HP
31 in stock
Item #: SPX1500F
$67.08
SPX1500L
11 PowerFlo Impeller - 1 HP
51 in stock
Item #: SPX1500L
$68.77
SPX1510Z1XE
Motor 1 HP Pump Motor 48Y Frame - 1-Speed 115 Volts 60 Hz With Switch
23 in stock
Item #: SPX1510Z1XE
$420.00
SPX1520Z1ESC
Motor 2 HP Pump Motor 48Y Frame - 1-Speed 115/230 Volts 60 Hz With Switch
20 in stock
Item #: SPX1520Z1ESC
$507.16
SPX1580AAP
14 PowerFlo LX Pump Housing
24 in stock
Item #: SPX1580AAP
$135.93
SPX1580BP
9 PowerFlo LX SP11580 Housing Cover
4 in stock
Item #: SPX1580BP
$120.89
SPX1500LX
13 PowerFlo Strainer Basket
173 in stock
Item #: SPX1500LX
$36.58
SPX1515C
8 PowerFlo Strainer Housing C-Clip
21 in stock
Item #: SPX1515C
$19.36
SPX1515CN
8 PowerFlo Strainer Housing C-Clip - New Style
46 in stock
Item #: SPX1515CN
$19.95
SPX1525CH
11 PowerFlo LX HI-Performace Impeller - 2 HP
2 in stock
Item #: SPX1525CH
$80.21
SPX1680GA
13 Strainer Basket - Power-Flo LX
3 in stock
Item #: SPX1680GA
$50.77
SPXHKit12
Quick Fix PowerFlo LX/II H-Kit Quick Pump Repair Kit
41 in stock
Item #: SPXHKit12
$72.88
SPX1500Z1E
Motor PowerFlo Motor - 1/2 HP
Allow 3-6 Months to Ship
Item #: SPX1500Z1E
$377.18
More Info
SPX1510Z1E
Motor 3/4 HP Pump Motor 48Y Frame - 1-Speed 1-Phase 115 Volts 60 Hz With Switch
Allow 3-6 Months to Ship
Item #: SPX1510Z1E
$375.39
More Info
SPX1510Z24XE
Motor 1 HP Pump Motor 48Y Frame - 2-Speed 1-Phase 115 Volts 60 Hz With Swtich
Allow 3-6 Months to Ship
Item #: SPX1510Z24XE
$459.89
More Info
SPX1500Z15T
Motor PowerFlo Motor Canopy With 2-Speed Switch
Allow 3-6 Months to Ship
Item #: SPX1500Z15T
$105.98
More Info
SPX1550WA1
Motor PowerFlo Twist-Lock Cord Set - 3 Foot - 12/3AWG
87 in stock
Item #: SPX1550WA1
$91.69
APCO2452
10 Generic Pump Housing O-Ring for SP1580, SP1750/75, SP1780
6 in stock
Item #: APCO2452
$7.02
APCO2422
2 Generic Strainer Cover O-Ring for SP1500/1580 and SP1700
290 in stock
Item #: APCO2422
$3.59
APCB169
13 Generic Powder-Coated Strainer Basket for SP1500
8 in stock
Item #: APCB169
$16.95
APCO2393
5 Generic Strainer Cover O-Ring for SP1500/1580 and SP1700
17 in stock
Item #: APCO2393
$13.86
