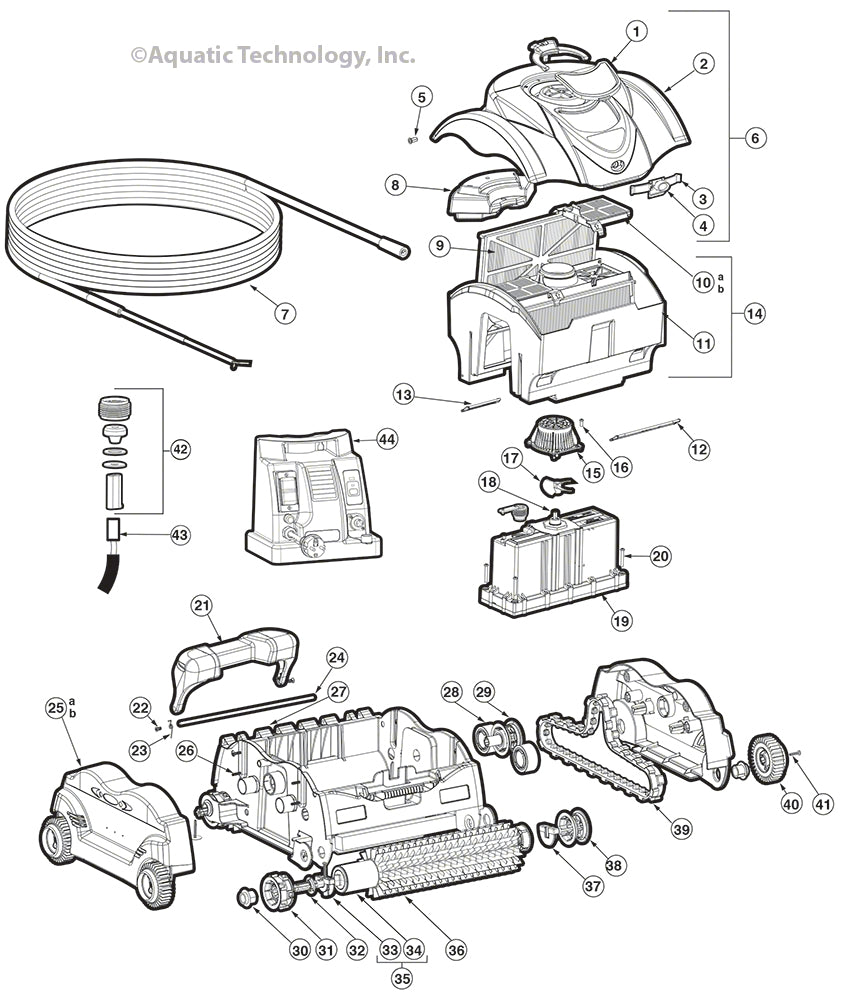

Hayward SharkVac XL Pool Cleaner Parts Diagram

Frequently Purchased

	SharkVac Drive Track Belt - RCX97501GR 335 in stock	$56.90
	TigerShark Cleaner Impeller - RCX11000 125 in stock	$25.83
	TigerShark Connector Socket - RCX59006 92 in stock	$5.05
	Brush Roller for TigerShark - RCX26008 135 in stock	$57.91
	TigerShark Filter Cartridge Replacement - 2 Pack - RCX70101 301 in stock	$104.53

Any key items not listed on the above schematic are no longer available.

Sort Products:
Key
Popularity

37 SharkVac Drive Track Belt

335 in stock

Item #: RCX97501GR

$56.90

15 TigerShark Cleaner Impeller

125 in stock

Item #: RCX11000

$25.83

40 TigerShark Connector Socket

92 in stock

Item #: RCX59006

$5.05

34 Brush Roller for TigerShark

135 in stock

Item #: RCX26008

$57.91

9 TigerShark Filter Cartridge Replacement - 2 Pack

301 in stock

Item #: RCX70101

$104.53

39 Motor Cord Seal Kit - AquaVac/SharkVac

5 in stock

Item #: RCX59004KIT

$22.74

26 TigerShark Pulley Bearing Kit - Pack of 2

81 in stock

Item #: RCX26000PAK2

$46.25

10b Door Filter Element (Set of 2)

386 in stock

Item #: RCX97417SPAK2

$16.24

7 SharkVac/eVac Cord Assembly - 50 Foot

Allow 3-6 Months to Ship

Item #: RCX97413

$166.81

38 SharkVac XL Overmolded Wheel Assembly

32 in stock

Item #: RCX97508GR

$22.01

24 TigerShark Screw Set - M5 x 20mm Pan

17 in stock

Item #: RCX12011

$10.64

Power Supply Switch Membrane Cover

47 in stock

Item #: RCX31012A

$31.96

16 Tiger/SharkVac Drive Pin Assembly

40 in stock

Item #: RCX40117

$23.94

27 SharkVac Drive Bearing Assembly

42 in stock

Item #: RCX97502GR

$63.22

41 SharkVac TigerShark Power Supply - 110 VAC

43 in stock

Item #: RCX97453

$392.22

10a SharkVac/eVac Door Filter

103 in stock

Item #: RCX97417

$16.13

21 Spring Handle for SharkVac

36 in stock

Item #: RCX97427

$10.54

9 TigerShark Filter Cartridge Spring Clean-up - Set of 2

382 in stock

Item #: RCX70103

$46.17

29 Drive Wheel Kit (Set of 2)

4 in stock

Item #: RCX97509PAK2

$77.40

Switch 16A Power Supply

Allow 3-6 Months to Ship

Item #: RCX31012

$11.54

13 SharkVac/eVac Filter Bucket Assembly

19 in stock

Item #: RCX97414

$128.09

31 SharkVac Roller End

Allow 3-6 Months to Ship

Item #: RCX97441

$22.38

35 Roller Wheel Shaft - Set of 2

Allow 3-6 Months to Ship

Item #: RCX97507PAK2

$26.72

4 SharkVac Button

4 in stock

Item #: RCX97433

$10.21

17 SharkVac XL/eVac Wall Climb Motor Assembly

4 in stock

Item #: RCX97490

$919.24

25 SharkVac AquaVac 500 Cleaner Base - Metallic Black

Allow 3-6 Months to Ship

Item #: RCX341142-236

$115.81

14 SharkVac Tube Vent

Allow 3-6 Months to Ship

Item #: RCX97455

$13.01

2 Dome for SharkVac XL - Gray

Allow 3-6 Months to Ship

Item #: RCX97470SB-237

$101.90

36 Drive Track Wheel Kit - Set of 2

Allow 3-6 Months to Ship

Item #: RCX97505PAK2

$29.26

Circuit Breaker 3A Power Supply

Allow 3-6 Months to Ship

Item #: RCX31013A

$20.82

33 SharkVac Tube Wheel Assembly - Light Gray

Allow 3-6 Months to Ship

Item #: RCX97410

$79.47

23b SharkVac EV Pro Side Panel - Black

Allow 3-6 Months to Ship

Item #: RCX97403P-236

$52.66

32 SharkVac Tube Wheel - Black

Allow 3-6 Months to Ship

Item #: RCX97520ABK

$35.28

30 Roller Shaft Bushing Kit for AquaVac

Allow 3-6 Months to Ship

Item #: RCX97435PAK2

$22.05

28 Roller Bushing Kit - Set of 2

12 in stock

Item #: RCX97506PAK2

$53.50

23a SharkVac XL Side Panel - Black

Allow 3-6 Months to Ship

Item #: RCX97403XL-236

$53.25

22 Shaft Hinge Stainless Steel SV/EV

Allow 3-6 Months to Ship

Item #: RCX97429

$14.81

20 SharkVac Torx Flat Head Screw Set M7 - Pack of 5

5 in stock

Item #: RCX97459

$25.98

18 SharkVac Torx Screw Set M5 - Pack of 5

Allow 3-6 Months to Ship

Item #: RCX97461

$23.12

12 SharkVac Flap Drain - Small

Allow 3-6 Months to Ship

Item #: RCX97405

$10.21

11 SharkVac Flap Drain - Large

Allow 3-6 Months to Ship

Item #: RCX97407

$17.04

8 SharkVac XL/eVac Wall Climb Float Assembly

Allow 3-6 Months to Ship

Item #: RCX97477

$126.88

6 Dome Assembly for SharkVac XL - Gray

Allow 3-6 Months to Ship

Item #: RCX97471SB-237

$237.05

5 SharkVac Bushing Dome - Set of 2

Allow 3-6 Months to Ship

Item #: RCX97423

$10.60

Connector Output Power Supply

31 in stock

Item #: RCX31018

$67.55
