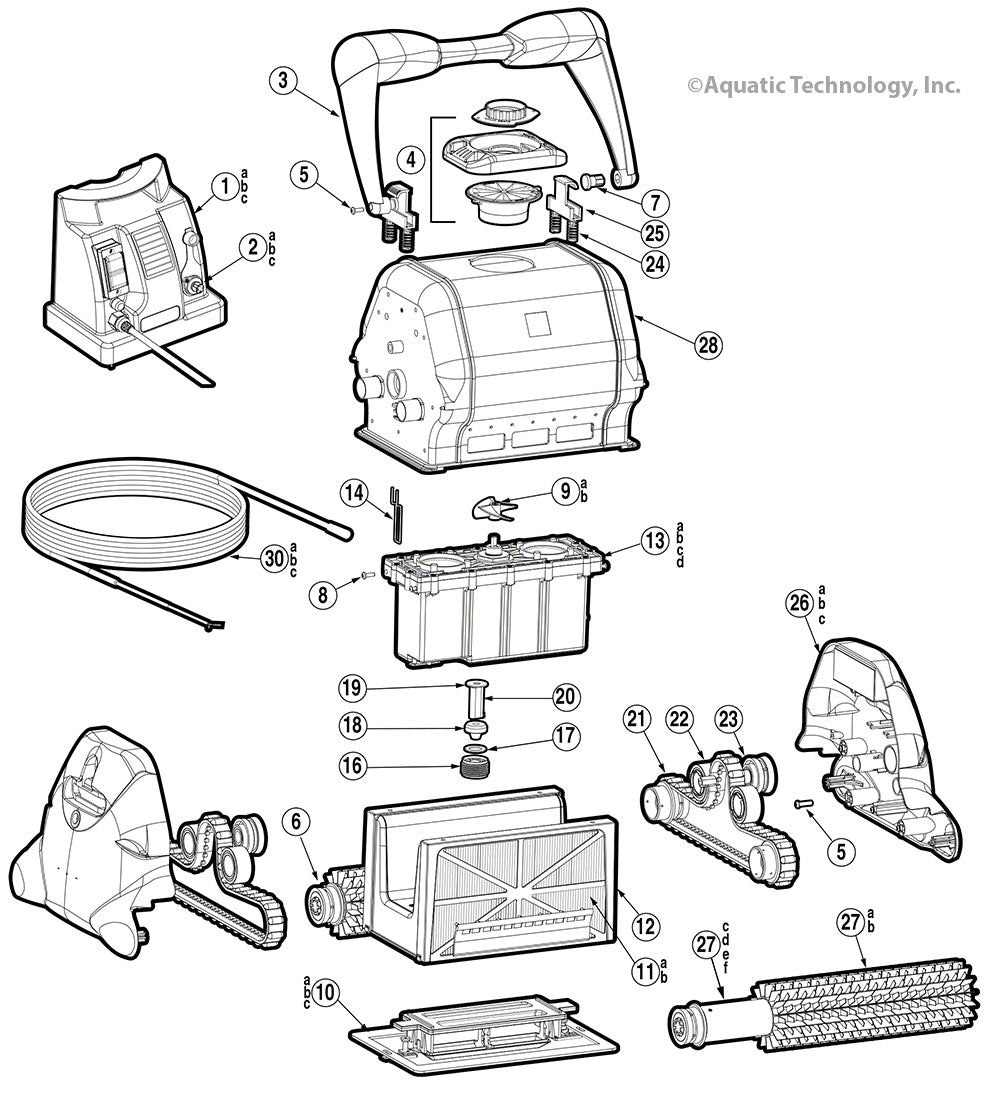

Hayward Tigershark, Tigershark QC, Tigershark Plus Parts Diagram

Hayward Tigershark, Tigershark QC, Tigershark Plus Parts

Frequently Purchased

RCX11000
 		TigerShark Cleaner Impeller - RCX11000
125 in stock
 $25.83
RCX26005
 		Slotted Wheel Tube Bearing for King/TigerShark - RCX26005
323 in stock
 $38.64
RCX59006
 		TigerShark Connector Socket - RCX59006
92 in stock
 $5.05
RCX23002
 		TigerShark Soft Tread Drive Track - RCX23002
193 in stock
 $70.74
RCX26008
 		Brush Roller for TigerShark - RCX26008
135 in stock
 $57.91
Any key items not listed on the above schematic are no longer available.
RCX11000
9a TigerShark Cleaner Impeller
125 in stock
Item #: RCX11000
$25.83
RCX26005
27e Slotted Wheel Tube Bearing for King/TigerShark
323 in stock
Item #: RCX26005
$38.64
RCX59006
15 TigerShark Connector Socket
92 in stock
Item #: RCX59006
$5.05
RCX23002
21 TigerShark Soft Tread Drive Track
193 in stock
Item #: RCX23002
$70.74
RCX26008
27a Brush Roller for TigerShark
135 in stock
Item #: RCX26008
$57.91
RCX70101
11a TigerShark Filter Cartridge Replacement - 2 Pack
301 in stock
Item #: RCX70101
$104.53
RCX26003
27c TigerShark Wheel Tube Assembly - 2 Pack
144 in stock
Item #: RCX26003
$104.96
RCX26002
23 TigerShark Drive Pulley Assembly
191 in stock
Item #: RCX26002
$62.81
RCX97201
26b TigerShark Side Cover - Gray - New Style
50 in stock
Item #: RCX97201
$47.33
RCX97453QC
1c TigerShark Quik Clean Power Supply - 110 VAC
8 in stock
Item #: RCX97453QC
$376.32
RCX26000PAK2
22 TigerShark Pulley Bearing Kit - Pack of 2
81 in stock
Item #: RCX26000PAK2
$46.25
RCX12011
5 TigerShark Screw Set - M5 x 20mm Pan
17 in stock
Item #: RCX12011
$10.64
RCX50061
30a TigerShark Floating Power Cord Assembly - 55 Feet
27 in stock
Item #: RCX50061
$240.74
RCX11208
4 TigerShark Venturi
37 in stock
Item #: RCX11208
$52.32
RCX76008-234
3 TigerShark Handle Assembly - Blue
Allow 3-6 Months to Ship
Item #: RCX76008-234
$88.44
More Info
RCX26001
6 TigerShark Roller Bearing Guide
89 in stock
Item #: RCX26001
$62.43
RCX31012A
2c Power Supply Switch Membrane Cover
47 in stock
Item #: RCX31012A
$31.96
RCX11400
14 Lid Clip for TigerShark Cleaner - Set of 2
9 in stock
Item #: RCX11400
$10.65
RCX43000
13c TigerShark QC Motor Unit 4-Hour DC Quick Clean
35 in stock
Item #: RCX43000
$705.04
RCX40117
29 Tiger/SharkVac Drive Pin Assembly
40 in stock
Item #: RCX40117
$23.94
RCX75000-236
10a TigerShark Bottom Lid Assembly - Black
77 in stock
Item #: RCX75000-236
$106.54
RCX97453
1a SharkVac TigerShark Power Supply - 110 VAC
43 in stock
Item #: RCX97453
$392.22
RCX13200
26a TigerShark Side Cover - Light Gray
23 in stock
Item #: RCX13200
$35.36
RCX78005
10b Bottom Lid Filter Gasket for TigerShark
34 in stock
Item #: RCX78005
$46.45
RCX12001
8 TigerShark Screw Set - T-20 Torx M5 x 12mm - Set of 5
15 in stock
Item #: RCX12001
$7.46
RCX70100
12 TigerShark Filter Cartridge Assembly
20 in stock
Item #: RCX70100
$142.48
RCX13220TSQC237
26c TigerShark QC Side Cover Set (Right and Left) - Gray
50 in stock
Item #: RCX13220TSQC237
$53.77
RCX40215
TigerShark Handheld Remote
Allow 3-6 Months to Ship
Item #: RCX40215
$260.41
More Info
RCX31012
2b Switch 16A Power Supply
Allow 3-6 Months to Ship
Item #: RCX31012
$11.54
More Info
RCX70103
11b TigerShark Filter Cartridge Spring Clean-up - Set of 2
382 in stock
Item #: RCX70103
$46.17
RCX50070
30c TigerShark Plus Power Cord Assembly - 55 Feet
3 in stock
Item #: RCX50070
$425.22
RCX17100
10c TigerShark Flap Drain - Pack of 2
5 in stock
Item #: RCX17100
$22.53
RCX13001C
28c Tigershark Main Case
Allow 3-6 Months to Ship
Item #: RCX13001C
$85.47
More Info
RCX97500GR
TigerShark Drive System Upgrade Kit
Allow 3-6 Months to Ship
Item #: RCX97500GR
$186.75
More Info
RCX50110
30b TigerShark II Power Cord Assembly - 100 Foot
6 in stock
Item #: RCX50110
$388.63
RCX31013A
2a Circuit Breaker 3A Power Supply
Allow 3-6 Months to Ship
Item #: RCX31013A
$20.82
More Info
RCX30000RC
1b Power Supply Remote TigerShark 110V
Allow 3-6 Months to Ship
Item #: RCX30000RC
$588.99
More Info
RCX17000
TigerShark High Velocity Inlet
11 in stock
Item #: RCX17000
$20.15
RCX40000RC
13d TigerShark QC Remote Motor Unit - 4 Hour
5 in stock
Item #: RCX40000RC
$751.03
RCX42000
TigerShark Plus Remote Solenoid Assembly
Allow 3-6 Months to Ship
Item #: RCX42000
$215.34
More Info
RCX40209
TigerShark Handheld Remote - 2007 and Prior
Allow 3-6 Months to Ship
Item #: RCX40209
$260.41
More Info
RCX31018
2d Connector Output Power Supply
31 in stock
Item #: RCX31018
$67.55
