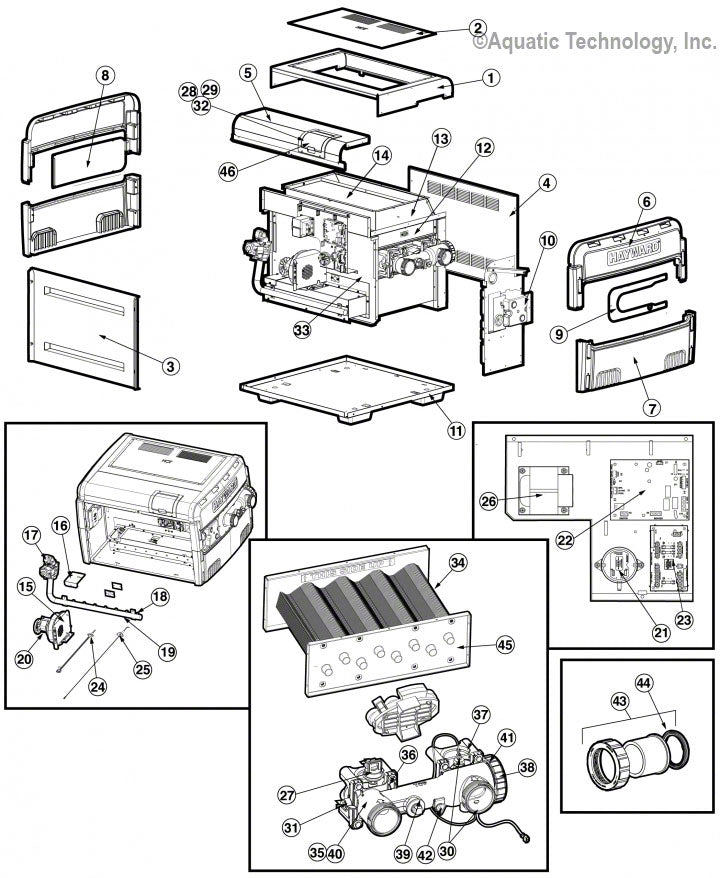

Hayward Universal H-Series H150FD Low Nox Heater Parts Diagram

Frequently Purchased

	TriStar/EcoStar Drain Plug and Gasket - .25 Inch - SPX4000FG 3135 in stock	$9.44
	1.5 Amp Mini-Fuse - Each - FDXLFSKF15-EACH 12 in stock	$2.99
	H-Series FD Low NOx Ignitor Kit - FDXLIGN1930 406 in stock	$129.88
	TriStar/EcoStar T-Seal Union Gasket - Pack of 2 - SPX3200UG 580 in stock	$26.52
	H-Series FD Conversion Kit LP to Natural - FDXLCNK0002 59 in stock	$268.97

Any key items not listed on the above schematic are no longer available.

Sort Products:
Key
Popularity

42 TriStar/EcoStar Drain Plug and Gasket - .25 Inch

3135 in stock

Item #: SPX4000FG

$9.44

Not Shown 1.5 Amp Mini-Fuse - Each

12 in stock

Item #: FDXLFSKF15-EACH

$2.99

24 H-Series FD Low NOx Ignitor Kit

406 in stock

Item #: FDXLIGN1930

$129.88

44 TriStar/EcoStar T-Seal Union Gasket - Pack of 2

580 in stock

Item #: SPX3200UG

$26.52

Not Shown H-Series FD Conversion Kit LP to Natural

59 in stock

Item #: FDXLCNK0002

$268.97

20 Combustion Blower - FD

57 in stock

Item #: FDXLBWR1930

$317.30

22 Ignitor Control Board for ASME Heaters FD

430 in stock

Item #: FDXLICB1930

$401.31

43 TriStar EcoStar NorthStar Union Connector Kit

626 in stock

Item #: SPX3200UNKit

$86.40

28 H- Series IDL2 Low NOx Display Board

161 in stock

Item #: IDXL2DB1930

$395.83

30 H-Series Low NOx High Limit Kit

108 in stock

Item #: FDXLHLI1930

$101.84

38 Bypass Replacement Cartridge Kit FD Heater

58 in stock

Item #: FDXLBPK1930

$76.88

27 Pressure Switch FD Heaters

266 in stock

Item #: FDXLWPS1930

$69.44

25 Flame Sensor

277 in stock

Item #: IDXLFLS1930

$108.03

Not Shown Universal H-Series FD Burner Kit

76 in stock

Item #: FDXLBRN1930

$400.96

34 Heat Exchange Assembly H150FD

57 in stock

Item #: FDXLHXA1150

$1,226.50

Not Shown H-Series Low NOx Indoor Pressure Switches - Pack of 3

52 in stock

Item #: FDXLVPS1930

$95.48

40 FD Series Front Header Assembly

61 in stock

Item #: FDXLFHA1930

$310.96

29 Bezel and Keypad Assembly Kit - FD Models

112 in stock

Item #: FDXLBKP1930

$135.03

Not Shown FD Conversion Kit Natural To LP

59 in stock

Item #: FDXLCNK0001

$268.97

Not Shown H-Series Field Wiring Mini-Fuse Kit 1.5 Amps - 10 Pack

5 in stock

Item #: FDXLFSKF15

$49.65

Not Shown H-Series Low NOx Union Kit

7 in stock

Item #: FDXLUNK1930A

$158.17

19 H150FD Heater Conversion Kit - H150 Natural to LP

Allow 3-6 Months to Ship

Item #: FDXLGCK1150NP

$250.72

18 Universal H-Series Burner Orifice LP Kit FD

27 in stock

Item #: FDXLBOP1930

$78.93

Not Shown H-Series FD Header O-Ring Kit

40 in stock

Item #: FDXLFor1930

$55.33

17 Gas Valve Natural Kit FD

354 in stock

Item #: FDXLGSV0001

$332.11

Not Shown Kit High Altitude 250/350/400 2000-10200 Feet

Allow 3-6 Months to Ship

Item #: FDXLHAK1930

$181.99

23 Field Wiring Panel Kit FD

120 in stock

Item #: FDXLFWP1930

$119.55

26 IDL2 Transformer 240 Volts - Post 9/2004

60 in stock

Item #: IDXL2TRF1930

$173.03

Not Shown H-Series Low Nox Air Side Gasket Kit

6 in stock

Item #: FDXLGSK1930

$106.05

33 H-Series Low Nox CC Front/Air Box Gasket

Allow 3-6 Months to Ship

Item #: FDXLGSK1934

$98.66

Not Shown H-Series Field Wiring Mini-Fuse Kit 3.0 Amps - 10 Pack

5 in stock

Item #: FDXLFSKF30

$81.72

36 Header Hardware Kit FD

14 in stock

Item #: FDXLHDW1930

$82.02

21 Blower Vacuum Switch

97 in stock

Item #: FDXLBVS1930

$67.41

17 Gas Valve LP Kit FD

319 in stock

Item #: FDXLGSV0002

$332.11

18 Universal H-Series Burner Orifice (Quantity 8) Natural Gas Kit FD

36 in stock

Item #: FDXLBON1930

$78.93

37 Kit Header Mounting Base

25 in stock

Item #: FDXLHMB1930

$83.81

Not Shown H-Series Low Nox Exhaust Side Gasket Kit

3 in stock

Item #: FDXLGSK1931

$177.34

Not Shown H-Series Low Nox Return Side Tube Sheet Insulation Kit

Allow 3-6 Months to Ship

Item #: FDXLGSK1933

$62.66

Not Shown H-Series H150-H500 Flow Switch Kit

Allow 3-6 Months to Ship

Item #: UHXFSW1930

$502.29

Not Shown WIring Harness Assembly Complete FD Kit

Allow 3-6 Months to Ship

Item #: FDXLWHA0001

$137.74

Not Shown Hurricane Tie Down Kit FD

Allow 3-6 Months to Ship

Item #: FDXLTDK1930

$104.58

Not Shown H-Series Low NOx HA-Vent Pressure Switch

Allow 3-6 Months to Ship

Item #: FDXLVPS1931

$135.08

Not Shown H-SeriesTemperature/Pressure and Flow Switch

Allow 3-6 Months to Ship

Item #: UHXTFP1930

$643.71

32 H-Series Low Nox Bezel/Top Gasket

8 in stock

Item #: FDXLGSK1932

$57.81

9 Right Trim Panel Kit

Allow 3-6 Months to Ship

Item #: FDXLRTP1930

$133.68

11 H-Series Low NOx Base Leg Kit - Pack of 4

Allow 3-6 Months to Ship

Item #: FDXLPBL1930

$78.88

13 Kit Rain Guard Assembly H150FD

Allow 3-6 Months to Ship

Item #: FDXLRGK1151

$278.47

16 Ignitor Access Cover Assembly Kit

Allow 3-6 Months to Ship

Item #: FDXLIAC1930

$61.68

14 Heat Barrier Panel Kit H150FD

Allow 3-6 Months to Ship

Item #: FDXLHBP1150

$139.99

5 Top and Front Panel H150FD

Allow 3-6 Months to Ship

Item #: FDXLTFP1151

$136.59
