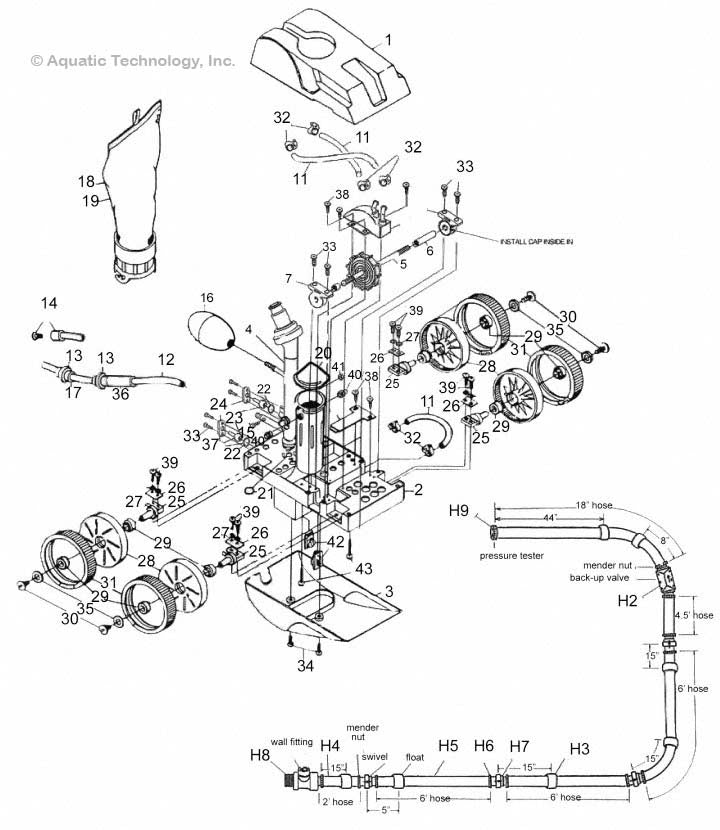

Pentair Letro Legend II LX 2000 Parts Diagram

Pentair Letro Legend II LX 2000 Parts

Frequently Purchased

370017
 		Legend Sweep Hose Scrubber - 370017
6 in stock
 $6.62
EC60
 		Legend/Platinum Wheel Bearings Only - 2 Pack - EC60
4 in stock
 $40.01
EU16
 		Cleaner Replacement Bag - Sand & Silt - EU16
21 in stock
 $67.30
EC55
 		Screw Wheel 5 Pack (LC55 LLC55; LXC55) - EC55
7 in stock
 $19.07
EB15
 		Clamp Attach Sweep Hose LB15; LLC125; L - EB15
81 in stock
 $6.05
Any key items not listed on the above schematic are no longer available.
370017
Not Shown Legend Sweep Hose Scrubber
6 in stock
Item #: 370017
$6.62
EC60
29 Legend/Platinum Wheel Bearings Only - 2 Pack
4 in stock
Item #: EC60
$40.01
EU16
18 Cleaner Replacement Bag - Sand & Silt
21 in stock
Item #: EU16
$67.30
EC55
30 Screw Wheel 5 Pack (LC55 LLC55; LXC55)
7 in stock
Item #: EC55
$19.07
EB15
32 Clamp Attach Sweep Hose LB15; LLC125; L
81 in stock
Item #: EB15
$6.05
EC65
25 Axle Large (Rear) (Replacement LC65; LLC65; LXC65)
30 in stock
Item #: EC65
$9.80
E24
H8 Inside Wall Fitting Screen
14 in stock
Item #: E24
$18.93
EU9
20 Debris Valve (LLU9; LXU9)
427 in stock
Item #: EU9
$7.21
E23-00
H8 Adaptor Quick Disconnect Wall Fitting Replacement - LX23, JV23
47 in stock
Item #: E23-00
$9.40
EC80
7 Bearing Ball Turbine 2 Pack Replacement LC80; LLC8)
44 in stock
Item #: EC80
$61.42
EC64
35 Washer Wheel 2 Pack
Limited Stock Available
Item #: EC64
$9.87
More Info
EA20
16 Legend II Ballast Float - White
57 in stock
Item #: EA20
$11.66
EU147
40 Snap Fit Vac Tube Post 2 Pack (Replacement LLU147; LX)
21 in stock
Item #: EU147
$11.53
LXC1
31 Tire For Legend II
4 in stock
Item #: LXC1
$21.05
EU7
21 Legend Feed Mast O-Ring
11 in stock
Item #: EU7
$2.97
EB5L
12 Hose Sweep Replacement LB5 LLB5
29 in stock
Item #: EB5L
$61.18
EC86
5 Shaft Drive Assembled (Replacement LC86; LLC86; LXC8)
8 in stock
Item #: EC86
$62.44
EB20
15 Legend Sweep Hose Adjustment Screw - White
238 in stock
Item #: EB20
$5.90
LX17
Legend II Hose Kit Legend II Feed Hose Section - 6 Foot - White
4 in stock
Item #: LX17
$48.87
E18
22 Jet-Vac Pusher Jet O-Ring - 2 Pack
72 in stock
Item #: E18
$5.13
EC120
11 Legend Venturi 7.75 Inch Jet Hose
Limited Stock Available
Item #: EC120
$3.66
More Info
EC6L
28 Wheel Large (Replacement LLC 6; LXC6)
19 in stock
Item #: EC6L
$30.34
EU10N
3 Cover Bottom Legend 4 Wheel
6 in stock
Item #: EU10N
$97.03
EC83
6 Legend Turbine Spacers - 2 Pack
6 in stock
Item #: EC83
$10.10
E13
H2 Inside Legend II Back-Up Valve O-Ring
9 in stock
Item #: E13
$2.97
LXU6
4 Feed Mast With O-Ring and Swivel
12 in stock
Item #: LXU6
$80.41
EH07
17 Hose SLV Without Insert 4 Pack (Replacement LH07; LLH0)
11 in stock
Item #: EH07
$8.23
LX10
Legend II Hose Kit Valve Low Press Back-up
8 in stock
Item #: LX10
$129.85
EU15
18 Legend Coarse Mesh Bag
7 in stock
Item #: EU15
$80.83
E12-00
H2 Back-Up Valve Top Cover for Legend
Allow 1-2 Months to Ship
Item #: E12-00
$46.78
More Info
LXW22
Legend II Hose Kit Fitting Wall Comp
12 in stock
Item #: LXW22
$54.70
LX16
H2 Inside Gear Assembly Back-up Valve Legend II
3 in stock
Item #: LX16
$82.36
E15
H2 Legend/Legend II Back-Up Valve Housing Body Screws - Package of 6
Allow 1-2 Months to Ship
Item #: E15
$8.53
More Info
LX205
Legend Tune Up Kit Legend II Tune Up Kit
Allow 1-2 Months to Ship
Item #: LX205
$302.71
More Info
EU80
Not Shown Hexscr Cover To Frame 2 Pack (Replacement LLU80)
8 in stock
Item #: EU80
$7.94
LXU8
42 Venturi Jet 2-Pack
Allow 1-2 Months to Ship
Item #: LXU8
$33.06
More Info
EC135
24 Jet Plt Assembly
6 in stock
Item #: EC135
$9.07
LXD10
Legend II Hose Kit Float For Legend II Feed Line
29 in stock
Item #: LXD10
$10.37
LX19
Legend II Hose Kit Feed Hose Swivel for Legend II - White
11 in stock
Item #: LX19
$17.93
EC130
23 Thrust Jet 2 Pack (Replacement LLC130; LC130)
1 in stock
Item #: EC130
$30.08
EA30
38 Screw Replacement 5 Pack (Replacement LLA30; LXA30)
4 in stock
Item #: EA30
$4.12
EC40
33 Screw For A5/A10/C36/C80 /C130 10 Pack (Replacement LC40)
5 in stock
Item #: EC40
$5.09
