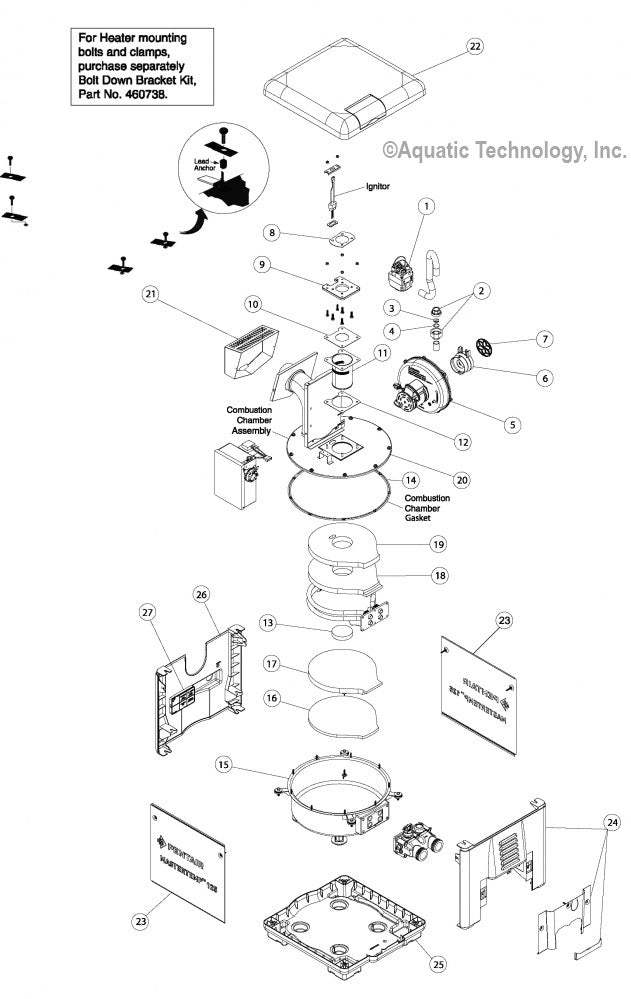

Pentair MasterTemp 125 Heater Burner System Parts Diagram

Pentair MasterTemp 125 Heater Burner System Parts

Frequently Purchased

474292
MasterTemp Burner System Hardware Kit - 474292
14 in stock
$41.63
474952
MasterTemp 125 Combustion Chamber Gasket Kit - 474952
12 in stock
$71.32
77707-0008
Kaowool Insulation Kit - 77707-0008
85 in stock
$187.26
461062
MasterTemp 125K Propane to Natural Gas Conversion Kit - 461062
Allow 1-2 Months to Ship
$82.01
42002-0005S
Max-E-Therm Metal Vent Cover - 42002-0005S
6 in stock
$158.89
Any key items not listed on the above schematic are no longer available.
474292
28 MasterTemp Burner System Hardware Kit
14 in stock
Item #: 474292
$41.63
474952
14 MasterTemp 125 Combustion Chamber Gasket Kit
12 in stock
Item #: 474952
$71.32
77707-0008
Not Shown Kaowool Insulation Kit
85 in stock
Item #: 77707-0008
$187.26
461062
Not Shown MasterTemp 125K Propane to Natural Gas Conversion Kit
Allow 1-2 Months to Ship
Item #: 461062
$82.01
More Info
42002-0005S
21 Max-E-Therm Metal Vent Cover
6 in stock
Item #: 42002-0005S
$158.89
42001-0051S
1 MasterTemp Combination Gas Control Valve
34 in stock
Item #: 42001-0051S
$403.98
474978
5 MasterTemp 125 Air Blower Kit - Natural Gas
Allow 1-2 Months to Ship
Item #: 474978
$588.33
More Info
474979
6 MasterTemp 125 Air Orifice Kit
8 in stock
Item #: 474979
$68.65
474980
Not Shown MasterTemp 125 Gas Air Orifice Kit - Propane
Allow 1-2 Months to Ship
Item #: 474980
$64.09
More Info
42002-0034Z
22 MasterTemp Heater Top
12 in stock
Item #: 42002-0034Z
$379.30
474958
20 MasterTemp Max-E-Therm Combustion Chamber Cover
Allow 1-2 Months to Ship
Item #: 474958
$400.40
More Info
474977
5 MasterTemp 125 Air Blower Kit - Propane
Allow 1-2 Months to Ship
Item #: 474977
$590.37
More Info
474845
Not Shown MasterTemp 125 Direct Air Intake Duct Kit - 3 Inches
1 in stock
Item #: 474845
$346.74
474981
Not Shown MasterTemp 125 Gas Air Orifice Kit - Natural
Allow 1-2 Months to Ship
Item #: 474981
$64.09
More Info
474994
Not Shown MasterTemp 125 Flame Holder Kit
11 in stock
Item #: 474994
$180.42
77707-0011
Not Shown Blower/Adapter Plate Gasket
15 in stock
Item #: 77707-0011
$90.47
42002-0031Z
25 MasterTemp 125 Bottom Cover
Allow 1-2 Months to Ship
Item #: 42002-0031Z
$183.58
More Info
474991
23 MasterTemp 125 Side Service Panel
Allow 1-2 Months to Ship
Item #: 474991
$132.83
More Info
474990
15 MasterTemp 125 Burner System Combustion Chamber
Allow 1-2 Months to Ship
Item #: 474990
$340.74
More Info
474992
24 MasterTemp 125 Side Panel Manifold
Allow 1-2 Months to Ship
Item #: 474992
$205.98
More Info
38404-4097S
2 MasterTemp Service Union - 3/4 Inch
Allow 1-2 Months to Ship
Item #: 38404-4097S
$56.03
More Info
42002-0041Z
27 MasterTemp Junction Box Cover
Allow 1-2 Months to Ship
Item #: 42002-0041Z
$28.96
More Info
474993
26 MasterTemp 125 Flue Stack Side Panel
Allow 1-2 Months to Ship
Item #: 474993
$171.60
More Info
461063
Not Shown MasterTemp 125K Natural Gas to Propane Conversion Kit
Allow 1-2 Months to Ship
Item #: 461063
$78.51
More Info
