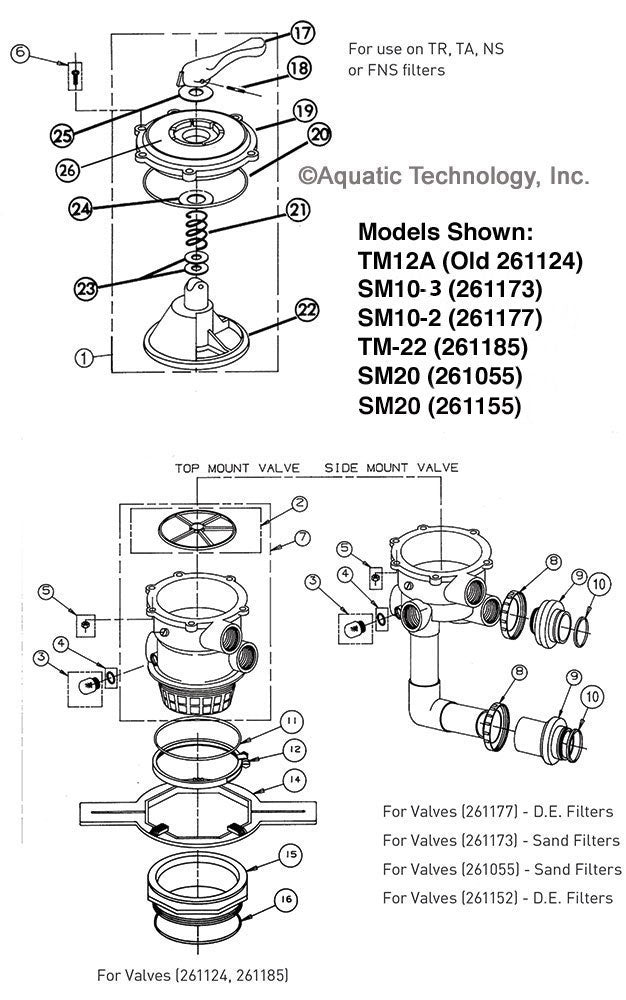

Pentair Multiport Top Mount TM12A/TM22 (261124, 261185) and Side Mount Valve SM10/SM20 (261177, 261173, 261055, 261152) Parts Diagram

Pentair Multiport Top Mount TM12A/TM22 (261124, 261185) and Side Mount Valve SM10/SM20 (261177, 261173, 261055, 261152) Parts

Frequently Purchased

271148
 		SM/TM Multiport Valve Diverter Spider Gasket - 2 Inch Valve - 271148
136 in stock
 $7.26
271104
 		Hi Flow TM/SM Multiport Valve Diverter Gasket - 1-1/2 Inch - 271104
6 in stock
 $55.41
272541
 		HiFlow 6-Way Valve Body O-Ring - 272541
89 in stock
 $3.99
152165
 		6-Way Multiport Valve Clamp - After 2004 - 152165
49 in stock
 $48.08
191479
 		Star D.E. Multiport Valve O-Ring - 191479
7 in stock
 $3.71
Any key items not listed on the above schematic are no longer available.
271148
2 SM/TM Multiport Valve Diverter Spider Gasket - 2 Inch Valve
136 in stock
Item #: 271148
$7.26
271104
2 Hi Flow TM/SM Multiport Valve Diverter Gasket - 1-1/2 Inch
6 in stock
Item #: 271104
$55.41
272541
11 HiFlow 6-Way Valve Body O-Ring
89 in stock
Item #: 272541
$3.99
152165
12 6-Way Multiport Valve Clamp - After 2004
49 in stock
Item #: 152165
$48.08
191479
23 Star D.E. Multiport Valve O-Ring
7 in stock
Item #: 191479
$3.71
274494
10 FullFloXF Valve Adapter O-Ring - 2 Inch Union
92 in stock
Item #: 274494
$4.35
154493
16 HiFlow 6-Way Valve Body Closure O-Ring
154 in stock
Item #: 154493
$10.48
271151
20 HiFlow 2 Inch Multiport Valve O-Ring - 2 Inch
2 in stock
Item #: 271151
$6.99
152167
5 SD Multiport Valve Nut - Stainless Steel
123 in stock
Item #: 152167
$3.86
152168
6 SD Multiport Valve Screw - Stainless Steel
130 in stock
Item #: 152168
$4.58
272550
3 HiFlow 1-1/2 Inch 6-Way Valve Sight Glass
19 in stock
Item #: 272550
$25.89
271106
4 HiFlow Sight Glass Gasket
5 in stock
Item #: 271106
$5.26
271157
25 TM/SM HiFlow Multiport Valve Handle Washer
51 in stock
Item #: 271157
$17.09
271160
24 HiFlow 2 Inch Multiport Valve Spring Washer
37 in stock
Item #: 271160
$17.09
275333
11 HiFlow Multiport Valve Body O-Ring
21 in stock
Item #: 275333
$1.99
271161
21 HiFlow 2 Inch Multiport Valve Spring
22 in stock
Item #: 271161
$68.27
271168
22 HiFlow 2 Inch Multiport Valve Diffuser
22 in stock
Item #: 271168
$116.54
270067
1 HiFlow Multiport Valve Key Assembly - 2 Inch
90 in stock
Item #: 270067
$265.61
152130
12 Tagelus TA100D Clamp - 8.35 Inch
13 in stock
Item #: 152130
$130.22
154512
14 Trition II Multiport Flanged Valve Lid Wrench
14 in stock
Item #: 154512
$47.34
154521
15 TA100 Buttress Threaded Valve Adapter - 8-1/2 Inches
13 in stock
Item #: 154521
$95.59
271156
17 HiFlow Valve Handle
4 in stock
Item #: 271156
$54.25
274407
8 Hi-Flow Valve Bulkhead Adapter Nut - 2 Inch
28 in stock
Item #: 274407
$31.29
270068
1 HiFlow Multiport Valve Key Assembly - 1-1/2 Inch
7 in stock
Item #: 270068
$185.71
152501
16 Multiport Valve Adapter O-Ring
1853 in stock
Item #: 152501
$4.70
271158
19 HiFlow Multiport Valve Top - White
3 in stock
Item #: 271158
$86.92
273207
26 Top/Side Mount Multiport Valve Label
21 in stock
Item #: 273207
$15.58
274556
9 Hi-Flow 2 Inch Valve Adapter
14 in stock
Item #: 274556
$27.10
155225
15 Tagelus V-Thread Flange Adapter - 6 Inches
15 in stock
Item #: 155225
$62.31
271165
19 HiFlow 1-1/2 Inch Multiport Valve Top - Black
Allow 1-2 Months to Ship
Item #: 271165
$76.60
More Info
271164
18 HiFlow 2 Inch Multiport Valve Handle Pin
1 in stock
Item #: 271164
$20.84
274651
9 Hi-Flow 1-1/2 and 2 Inch Valve Adapter
5 in stock
Item #: 274651
$41.68
274404
9 Hi-Flow Valve Bulkhead Adaptor - 1-1/2 to 2 Inch
24 in stock
Item #: 274404
$43.66
