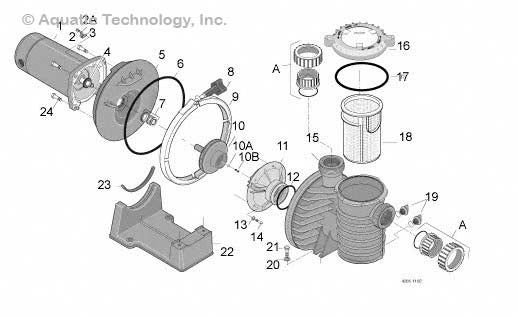

Sta-Rite Max-E Pro Series Pump Parts Diagram

Frequently Purchased

	Max-E-/Dura-Glas II Strainer Basket - C8-58P 11 in stock	$23.27
	Sta-Rite Pump Motor Shaft Water Slinger - 17351-0009 62 in stock	$4.12
	Sta-Rite Filter Air Relief and Pump Drain Plug O-Ring - U9-359 9 in stock	$1.21
	Pump Drain Plug With O-Ring - 1/4 Inch - U178-920P 5 in stock	$8.10
	Max-E-Pro Strainer Cover O-Ring - 35505-1440 30 in stock	$217.46

Any key items not listed on the above schematic are no longer available.

Sort Products:
Key
Popularity

18 Max-E-/Dura-Glas II Strainer Basket

11 in stock

Item #: C8-58P

$23.27

4 Sta-Rite Pump Motor Shaft Water Slinger

62 in stock

Item #: 17351-0009

$4.12

19 Sta-Rite Filter Air Relief and Pump Drain Plug O-Ring

9 in stock

Item #: U9-359

$1.21

19 Pump Drain Plug With O-Ring - 1/4 Inch

5 in stock

Item #: U178-920P

$8.10

17 Max-E-Pro Strainer Cover O-Ring

30 in stock

Item #: 35505-1440

$217.46

Accessory Union Adapter Kit - 2 Inch Slip (Package of 2)

717 in stock

Item #: PKG 188

$51.97

6 Generic Seal Plate O-Ring for Max-E-Glas/Dura-Glas II Pumps

Allow 3-5 Weeks to Ship

Item #: U9-228A

$3.82

15 Max-E-Pro Pump Tank Body Kit

48 in stock

Item #: 17307-0110S

$303.46

3 Dyna-Glas/Max Grounding Bonding Lug

Allow 1-2 Months to Ship

Item #: U17-568

$17.35

7 TPE Series Dyna-Jet Pump Shaft Seal

12 in stock

Item #: 17351-0101S

$43.83

10B Dyna/Max-E Impeller Lock Screw for Specified Impellers

14 in stock

Item #: 37337-6080

$33.17

13 Lock Washer Sta-Rite

4 in stock

Item #: U43-21SS

$3.92

11 Max-E-Pro 1/2 to 1-1/2 HP Diffuser

30 in stock

Item #: C1-271P1

$50.75

10 Max-E-Pro Impeller - 3/4 HP Full-Rated and 1 HP Up-Rated

43 in stock

Item #: C105-238P

$97.79

12 Generic Pump Diffuser O-Ring for Max-E/Dyna Pumps

6 in stock

Item #: U9-374

$1.21

11 Max-E-Pro 1-1/2 to 3 HP Diffuser

26 in stock

Item #: C1-271P

$52.01

5 Max-E Seal Plate Kit

76 in stock

Item #: C203-194P

$169.55

8 IntelliPro VS Max-E-Pro Tank Clamp Knob

2 in stock

Item #: WC36-22

$12.40

10 Max-E/Dura-Glas II Impeller - 2 HP Full-Rated or 2-1/2 HP Up-Rated

17 in stock

Item #: C105-238PEBA

$97.33

10 IntelliPro Pump Impeller - 3 HP 3-Phase

32 in stock

Item #: C105-238PLA

$100.60

1 2 HP Pump Motor Square Flange 48Y - 1-Speed 1-Phase 230 Volts - Energy Efficient Full-Rated

234 in stock

Item #: AE100GHL

$478.20

10 Max-E-Pro Impeller - 1 HP Full-Rated and 1-1/2 HP Up-Rated - 3-Phase

10 in stock

Item #: C105-238PBA

$95.18

14 Round Head Diffuser Cap Screw #8-32 x 7/8 Inch

122 in stock

Item #: U30-542SS

$4.23

10 Max-E-Pro Impeller - 1-1/2 HP Full-Rated 2 HP Up-Rated - 3-Phase

22 in stock

Item #: C105-238PDBA

$100.55

1 1/2 HP Pump Motor 48Y Frame - 1-Speed 1-Phase 115/230 Volts

17 in stock

Item #: SQ1052

$254.42

1 3/4 HP Pump Motor 48Y Frame - 1-Speed 1-Phase 115/230 Volts - Full-Rated

52 in stock

Item #: SQ1072

$285.85

1 1-1/2 HP Pump Motor 48Y Frame - 1-Speed 1-Phase 230 Volts

320 in stock

Item #: SQ1152

$400.57

1 2 HP Pump Motor 48Y Frame - 1-Speed 1-Phase 230 Volts - Up-Rated

348 in stock

Item #: USQ1202

$398.58

1 3 HP Pump Motor 56Y Frame - 1-Speed 3-Phase 208-230/460 Volts - Full-Rated

10 in stock

Item #: H994

$624.89

9 Pentair Pump Tank V Clamp

85 in stock

Item #: C19-37A

$107.17

23 Max-E-Pro Rubber Motor Pad

62 in stock

Item #: C35-43

$8.85

10B Max-E/Dura Impeller Lock Screw for Specified Impellers

18 in stock

Item #: 37337-6081

$35.83

1 2 HP Pump Motor 48Y Frame - 2-Speed 1-Phase 230 Volts - Energy Efficient

7 in stock

Item #: B985

$592.56

1 1 HP Pump Motor 48Y Frame - 1-Speed 1-Phase 115/230 Volts - Full-Rated

226 in stock

Item #: SQ1102

$317.63

1 1 HP Pump Motor 48Y Square Flange - 1-Speed 1-Phase 115/230 Volts - Up-Rated

384 in stock

Item #: USQ1102

$285.48

1 2-1/2 HP Pump Motor 48Y Frame - 1-Speed 1-Phase 230 Volts - Up-Rated Energy Efficient

34 in stock

Item #: USQ1252

$481.78

16 Max-E-Pro Trap Cover Kit

57 in stock

Item #: 17307-0111S

$94.78

22 Max-E-Glas II 3 HP Pump Base With Motor Pad

Allow 1-2 Months to Ship

Item #: C104-79P

$64.95

24 Bolt 3/8 -16 Hex Head

203 in stock

Item #: U30-74SS

$8.78

10 Max-E-Pro Impeller - 1/2 HP

Allow 1-2 Months to Ship

Item #: C105-238PX

$94.97

10 Max-E-Pro Impeller - 1-3/4 HP Up-Rated

9 in stock

Item #: C105-238PDCA

$100.33

10 Dura-Glas II Impeller - 3/4 HP Full-Rated and 1 HP Up-Rated

3 in stock

Item #: C105-238PA

$94.97

1 2 HP Pump Motor Square Flange - 1-Speed 1-Phase 208-230 Volts 60 Hz - Black

Allow 3-5 Months to Ship

Item #: 355027S

$441.11

1 3/4 HP Pump Motor Square Flange - 1-Speed 1-Phase 115/208-230V 60 Hz - Black

Allow 3-5 Months to Ship

Item #: 355021S

$300.74

1 1-1/2 HP Pump Motor 48Y Square Flange - 1-Speed 1-Phase 115/230 Volts - Up-Rated

507 in stock

Item #: USQ1152

$319.23

1 2 HP Pump Motor 48Y Square Flange - 2-Speed 1-Phase 230 Volts - Up-Rated

9 in stock

Item #: AE100GLL-Y

$549.09

2A #10 Lock Washer for Max-E-Glas II/Dura-Glas II

Allow 1-2 Months to Ship

Item #: U43-22SS

$3.31

22 Base Without Motor Pad

5 in stock

Item #: C4-78P

$64.78

Accessory 2 Inch Union Adaptor Sta-Rite

Allow 1-2 Months to Ship

Item #: 77703-0100

$67.94

Accessory Dyna-Glass Union Adapter Slip Kit 1-1/2 Inch (Package of 2)

Allow 1-2 Months to Ship

Item #: 77703-0101

$48.49
