Chemtrol PC3000 Programmable PPM Controller - pH/ORP/Temp

Description

The Chemtrol PC5000 controller is a fully programmable controller that features automatic control of water chemistry (ORP, PPM, pH), water balance with Langier Index, TDS, and heater temperature, all with a full remote duplex capability option. The PC5000 features a unique solid-state PPM Sensor that generates easy-to-use, direct and reliable readings of Free Chlorine concentration in water. Unlike conventional amperometric sensors, this sensor is simple to install and highly reliable. It includes a special flow cell and is not affected by oxidizers and orcyanuric stabilizers. With the PC5000, the combination of the PPM and ORP sensors gives the operator the capability to control either chlorine residual oxidizing activity. It also features the Chemtrol proprietary Probe Alert Safeguard that constantly monitors the response of the ORP and pH probes and alerts the operator of probe failure. Other features include programmable shock treatment and chemical savings cycles, heater control with energy saver program and Langelier Saturation Index for water balance. This unit includes the controller, respective probes (pH, ORP probe and solid-state sensor (PPM)), safety flow switch, Sanitizer PPM display and remote alarm, FCA flow cell assembly, PPM cell and miscellaneous plumbing supplies.

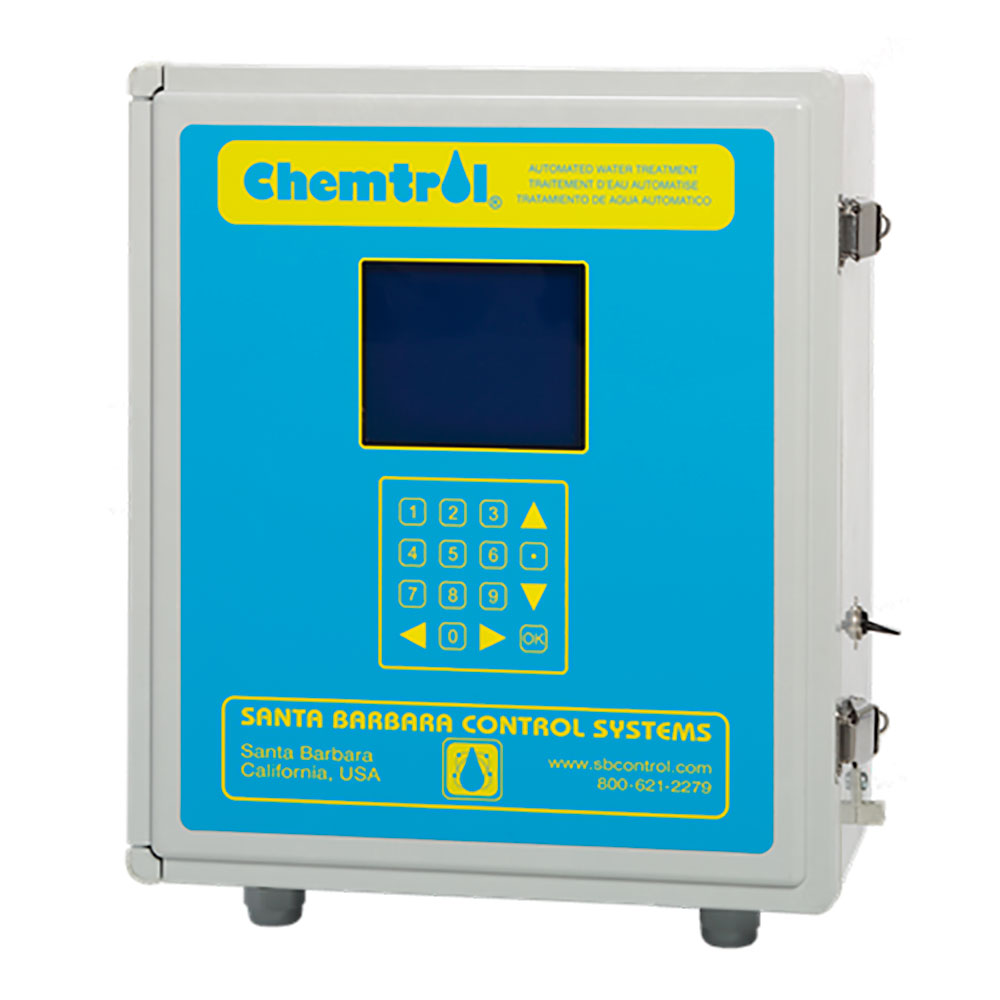

The user-friendly Main Screen display enables the operator to supervise all the process functions at a glance and to quickly respond to any changing condition. The Chemtrol PC5000 controller operates like a computer with full-screen displays and direct access to all menus and submenus. The front panel keypad is used to move up and down each menu and enter or exit the submenus. All operating functions can be easily modified from the keypad, including sensor calibration, control set-points, alarm levels and the programs for super-chlorination, sequential backwashing, chemical saving and energy saving. The unit has security protection with ten 5-digit codes with 3 different access levels.

With the CHEMCOM communications package (sold separately), any number of facilities can be monitored either by remote computer or by telephone. This allows real-time supervision by management and remote troubleshooting by CHEMTROL technical support. The Communications Package is item #PCx-ETHCOM.
