Poolweb Diving Boards and Stands Commercial Diving Boards sku: 66-231-324
Duraflex Diving Board 14 Foot With Bolt Kit
  • Duraflex Diving Board 14 Foot With Bolt Kit

Duraflex Diving Board 14 Foot With Bolt Kit

By Duraflex International
Poolweb #66-231-324
Allow 5-7 Days to Ship
$5,226.10 $5,226.10
Unit price per

Shipping Options (more information)

This item ships free via freight truck. This means that the item cannot ship via regular transportation because it is too large, heavy or needs to be palletized. Learn more about receiving an LTL shipment.

Shopper Protection

Product Overview

Description

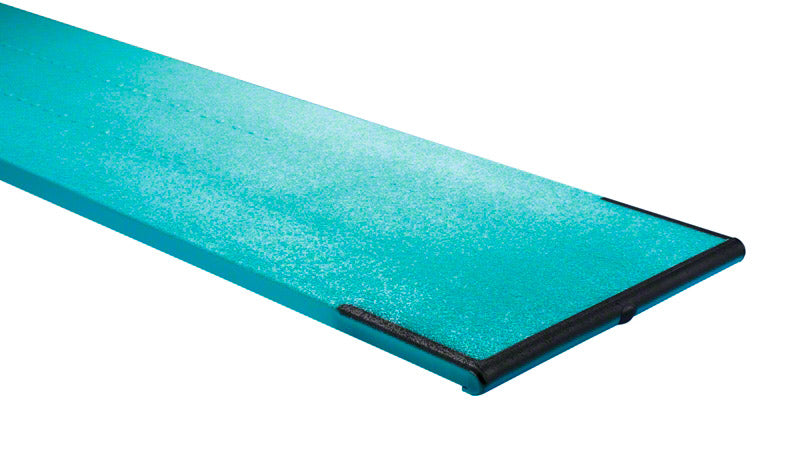

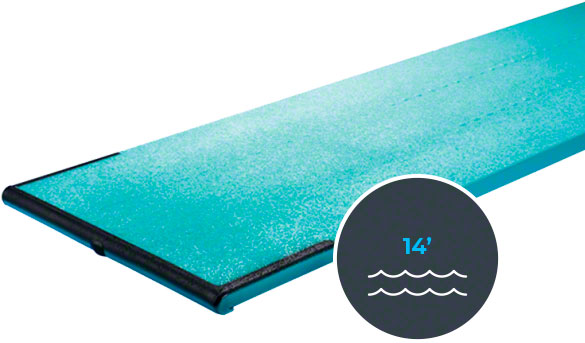

The Duraflex 14 foot diving board and bolt kit is used for recreational diving in commercial pools that conform to USA Diving, FINA or NCAA minimum dimensions. They are tapered from the fulcrum area to the diving tip.

This diving board model has the same features as the 16 foot Duraflex except length. This board is basically a one-piece ribbed extrusion of aluminum alloy 6070-T6, heat treated for a yield strength of 50,000 psi. It has a torsion-box extrusion, an anchor angle, and tip end cap riveted to the basic section. It is tapered from the fulcrum area to the diving tip.

The board is coated in aqua-colored thermal-curing epoxy resin. The top surface is finished with a laminate of flint silica and alumina, between coats of epoxy to affect a slip-resistant surface. The diving board is to be bolted to the stand by 2 carriage bolts 5/8 inches in diameter. (If the stand is a Durafirm stand, use 5/8 x 3-1/2 inch stainless steel board bolts. The 5-1/2 inch long plated steel board bolt is the most common size used on non-Durafirm Stands.) The underside ribs of the board are protected from direct contact with the Duraflex metal fulcrum by rubber channels (8) attached to the board with epoxy adhesive.

NOTE: Duraflex boards, stands and parts are NOT for residential use. Duraflex will not sell any boards, stands or parts to residential customers as residential pools are not designed to meet FINA (International Swimming Federation) guidelines.

Features

  • High quality springboard diving equipment
  • For USA Diving/FINA approved pools
  • Single-piece ribbed extruded aluminum allow
  • Top surface coated in aqua-colored, thermal-curing epoxy resin
  • Width: 19-5/8 inches wide.
  • Slip resistant surface

Technical Specifications

Poolweb Item #66-231-324
ManufacturerDuraflex International
Lead Time24 days (if out of stock)
Shipping Weight150.0 lb
