ELC-810 Tri-Sensing Water Level Controller Deck Well - 50 Foot Cord

Description

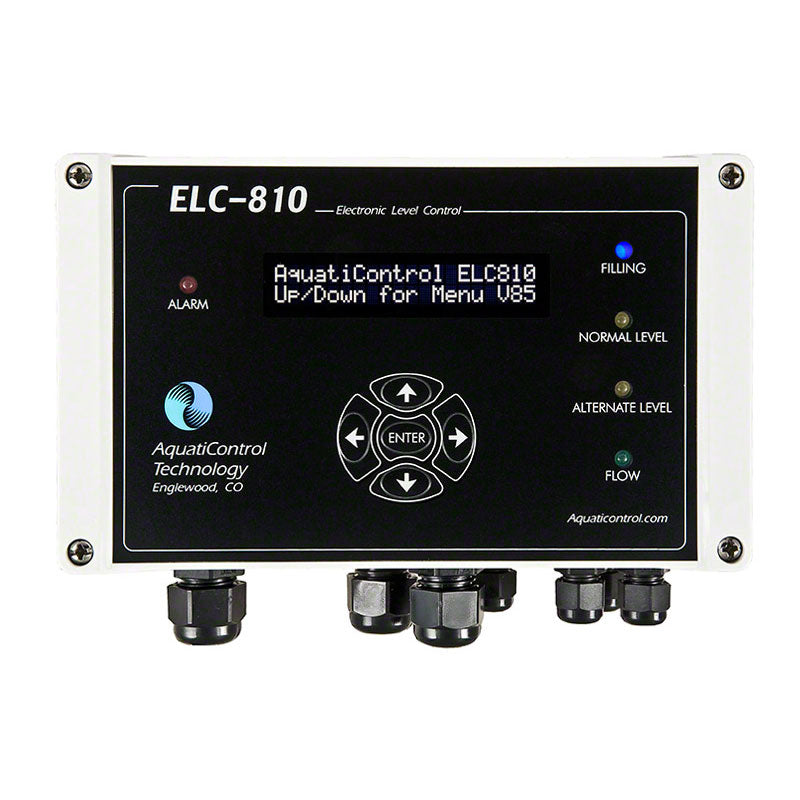

This is an ELC-810 Tri-Sensing Water Level Controller for bracket applications with a 50 foot cable length. The ELC-810 is an interactive, fully menu-driven, automated multi-level sensing controller. The ELC-810 Water Level Controller uses proximity sensing technology instead of floats or electrical currents. The proximity sensors monitor the water level accurately and will automatically activate the auto water make-up control valve. It is designed to maintain precise water levels for commercial and residential swimming pools, spas, fountains, and water features.

The ELC-810 features two solenoid applications for filling and draining. It is housed in a watertight NEMA 4X UL94 5V UL flammability rated Polycarbonate enclosure. The ELC-810 has an integral time delay sequence to avoid cycling due to wave action and has an adjustable feed alarm timer which interrupts water flow in the event of a problem. It has an easy-to-read LCD display which will power down after a 15 minute of no key entry. It will turn back on when you press any key.

Any changes to the parameters are password protected so your settings are secure. The ELC-810 has a relay for remote annunciation of an alarm condition or for a drain solenoid valve. Any of the following will initiate an alarm: Maximum Fill Time Exceeded, Low Water Condition, Level Sensor Problem, and Low Water Sensor Problem. A fifth alarm condition is the high drain where the relay is used for the drain solenoid valve. The red LED will flash at double rate but with no audible alarm. The alarm will reset when water reaches a normal level.

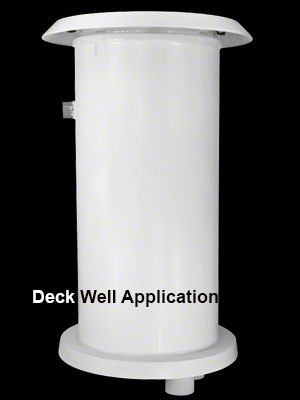

The ELC-810 offers different models for single, dual or tri-level sensing for normal, alternate, and high water levels. In most cases the ELC-810 can be easily retrofitted to an existing pool, spa, fountain, spray ground, or other water feature. And AquatiControl has also made it easy to adapt the ELC technology to all bodies of water (surge tank, site glass, deck well, etc.).
