Poolweb #852-007
Schedule 80 One-Piece Flange - 3/4 Inch FPT
3 in stock
Shipping Options
- Standard Shipping, $7.99 Get it by
- 2 Day Shipping, Get it by
- 1 Day Shipping, Get it by
Shopper Protection
- This item is backed by a 30 day Return Policy
- This item is protected under the Poolweb Guarantee
Product Information
Additional Resources
- Data Sheet (pdf)
- Installation Instructions (pdf)
Product Description

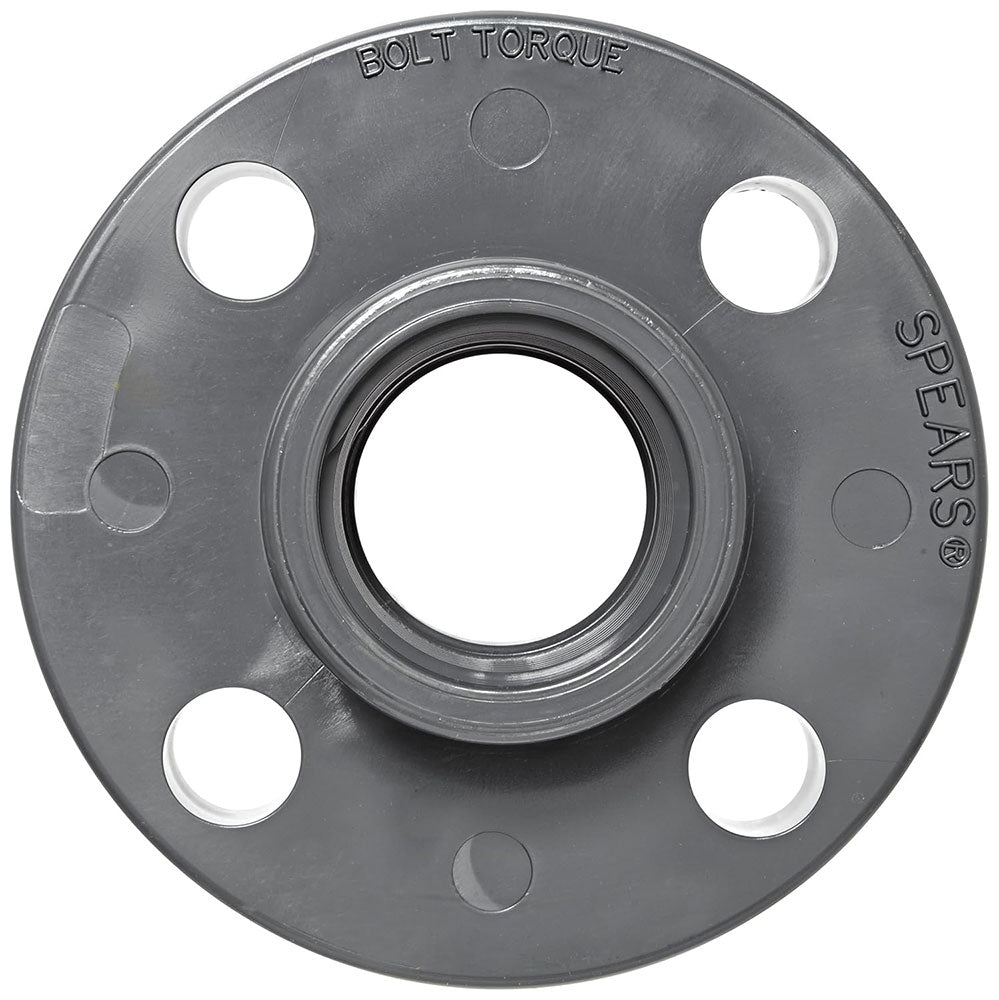

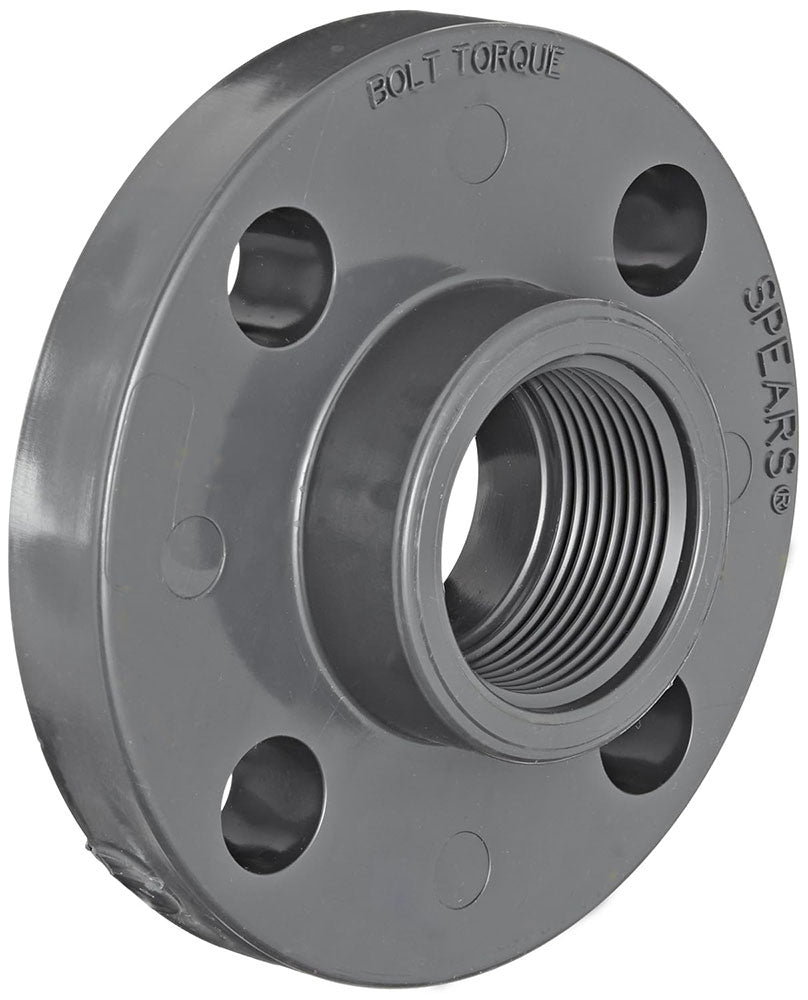

This is a Schedule 80 One-Piece Flange with a 3/4 inch threaded female connection. The Schedule 80 flanges are constructed of Rigid Poly (Vinyl Chloride) (PVC) Compounds and Chlorinated Poly Vinyl Chloride (CPVC) Compounds. Schedule 80 fittings are manufactured to ASTM D 2467 standards. This PVC flange complies with the perimeters specified in ANSI B16.5 for bolt patterns. Maximum pressure rating is 150 PSI at 73 degrees F with a maximum operating temperature of 140 degrees F.
Because the Georg Fischer Schedule 80 PVC pipe flanges use fasteners, they create connections between pipes that are easier to take apart than other fittings. The fasteners can be tightened or loosened without moving or twisting the attached pipes. They fit Schedule 80 piping and fittings, which have thicker walls than Schedule 40 and are rated for higher-pressure applications.
Product Features
- 4 Holes
- Max Pressure: 150 PSI
- Max Operating Temp: 140 degrees F
- ANSI 150 Class according to ANSI B16.5
- Certified NSF 61 and ANSI 372
Technical Specifications
| Product Category | Flanges and Gaskets |
| Poolweb Item # | 852-007 |
| Brand | Poolweb.com |
| Shipping Weight | 0.29 lb |
