Schedule 80 Van Stone Flange - 12 Inch Slip Schedule 80 Van Stone Flange - 12 Inch Slip

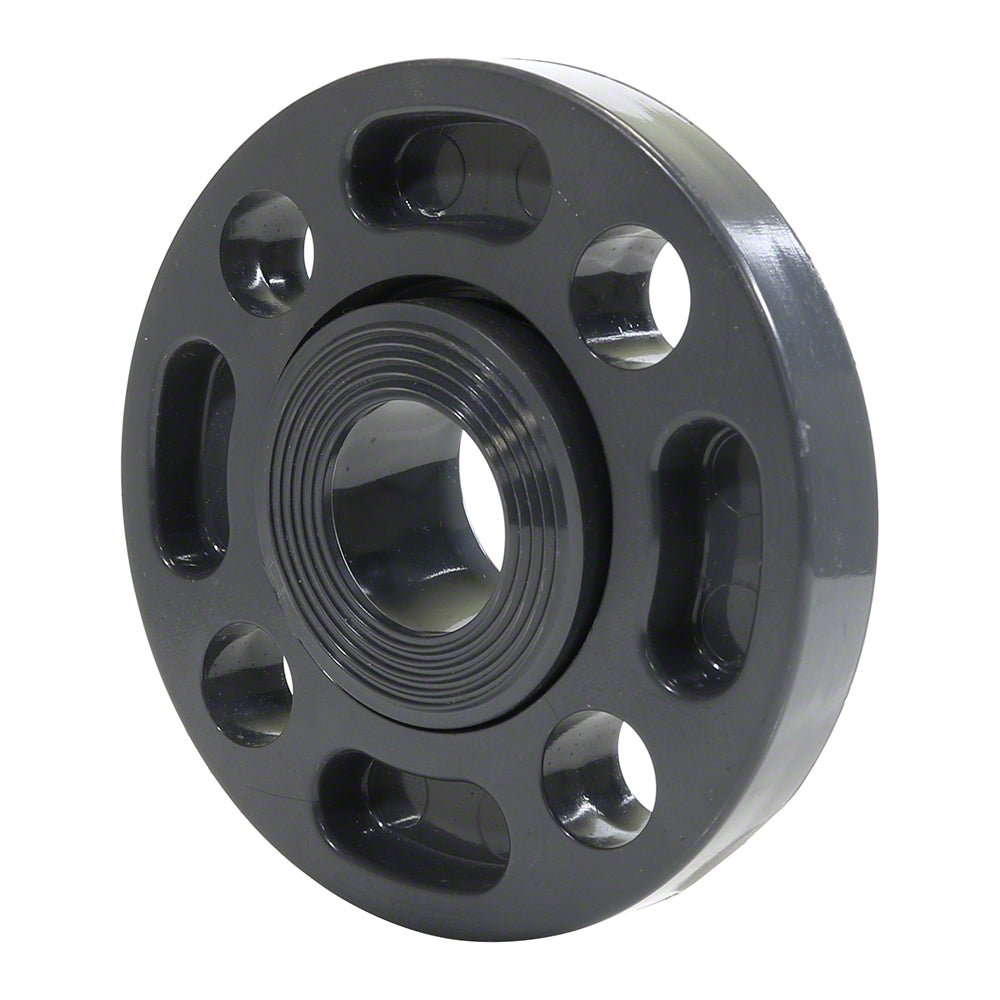

  • Product image 1 of 2

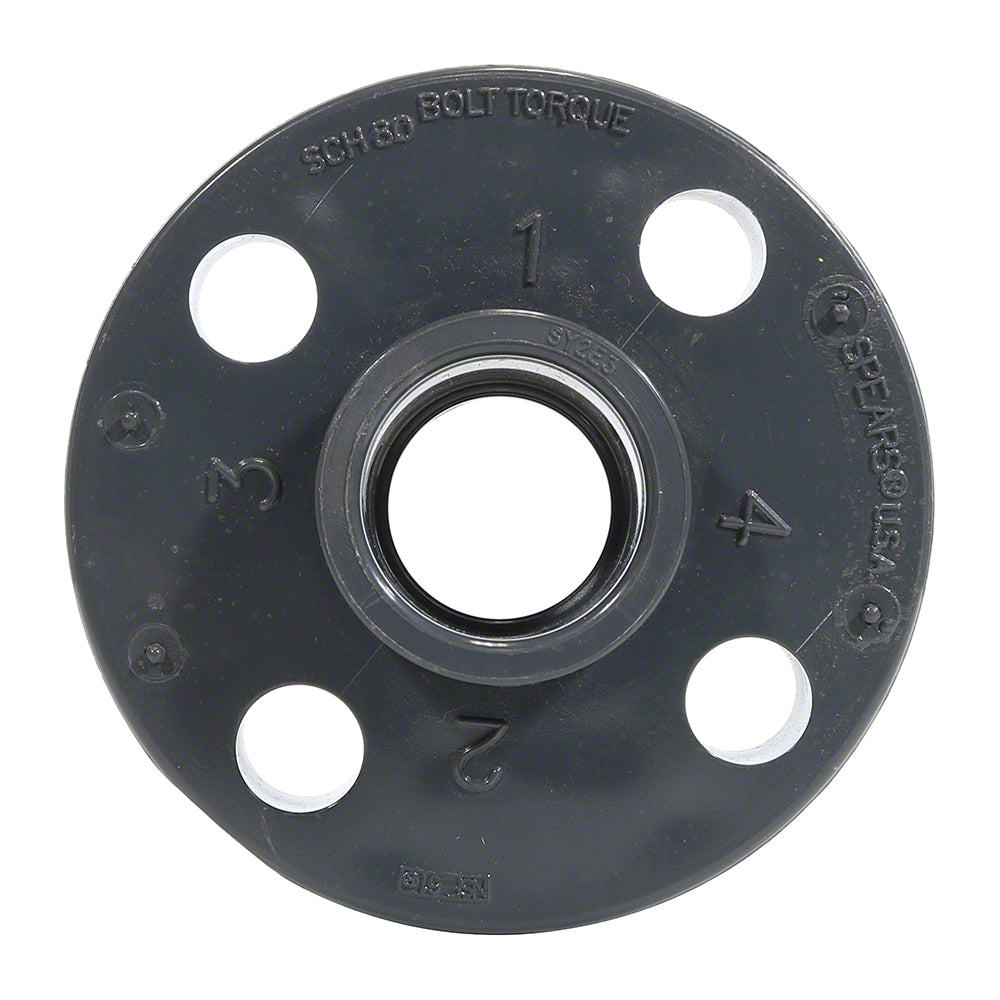

  • Product image 2 of 2
Poolweb #854-120

Schedule 80 Van Stone Flange - 12 Inch Slip

Allow 5-7 Days to Ship
$179.33
& ships free!
Unit price per

Shipping Options

  • Standard Shipping, Free Get it by
  • 2 Day Shipping, Get it by
  • 1 Day Shipping, Get it by

Shopper Protection

Frequently bought together

  • +
  • Total price: $227.75

Product Information

Additional Resources

Description

This is a Schedule 80 Van Stone Flange with a 12 inch slip connection. This PVC flange complies with the perimeters specified in ANSI b16.5. A Van Stone flange is a two-piece flange with a rotating ring that makes bolt alignment simple. Maximum pressure rating is 150 PSI with a maximum operating temperature of 140 degrees F. The Schedule 80 flanges are constructed of Rigid Poly (Vinyl Chloride) (PVC) Compounds and Chlorinated Poly Vinyl Chloride (CPVC) Compounds.

Gaskets are sold separately.

L=6-19/32 M=13- 3/4 N=5/8 O.D.=19 R=1-13/16 No of Bolts=12 Bolt Circle Dia.=17 Bolt Size=7/8

Product Features

  • Max Pressure: 150 PSI
  • Max Operating Temp: 140 degrees F
  • ASTM D1784, ASTM D2464, ASTM D2467
  • ANSI/ASME B1.20.1
  • NSF Standard 61 and 14

Technical Specifications

Product CategoryFlanges and Gaskets
Poolweb Item #854-120
Cross Reference #854-120FT
ManufacturerPoolweb.com
Shipping Weight17.05 lb
