Poolweb #854-050
Schedule 80 Van Stone Flange - 5 Inch Slip
Allow 5-7 Days to Ship
Shipping Options
- Standard Shipping, $7.99 Get it by
- 2 Day Shipping, Get it by
- 1 Day Shipping, Get it by
Shopper Protection
- This item is backed by a 30 day Return Policy
- This item is protected under the Poolweb Guarantee
Frequently bought together
- +
- This item: Schedule 80 Van Stone Flange - 5 Inch Slip $89.45
- Rubber Flange Gasket - 5 Inch Pipe $19.72
Product Information
Additional Resources
- Data Sheet (pdf)
- Installation Instructions (pdf)
Product Description

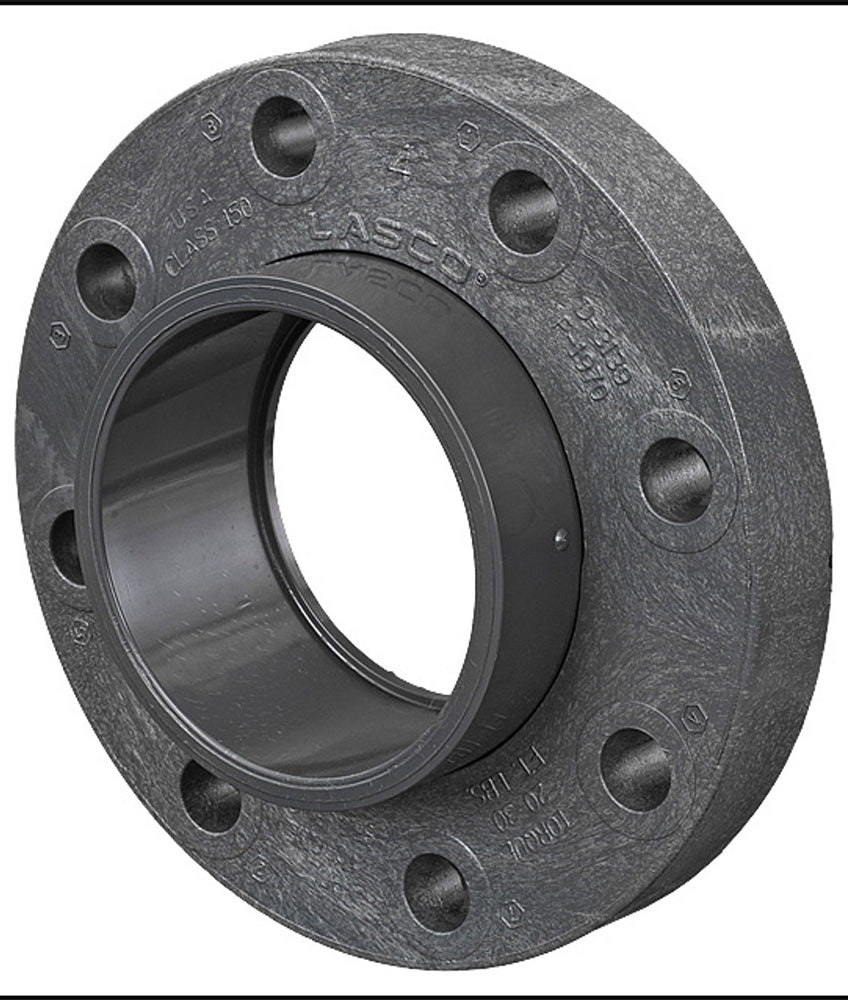

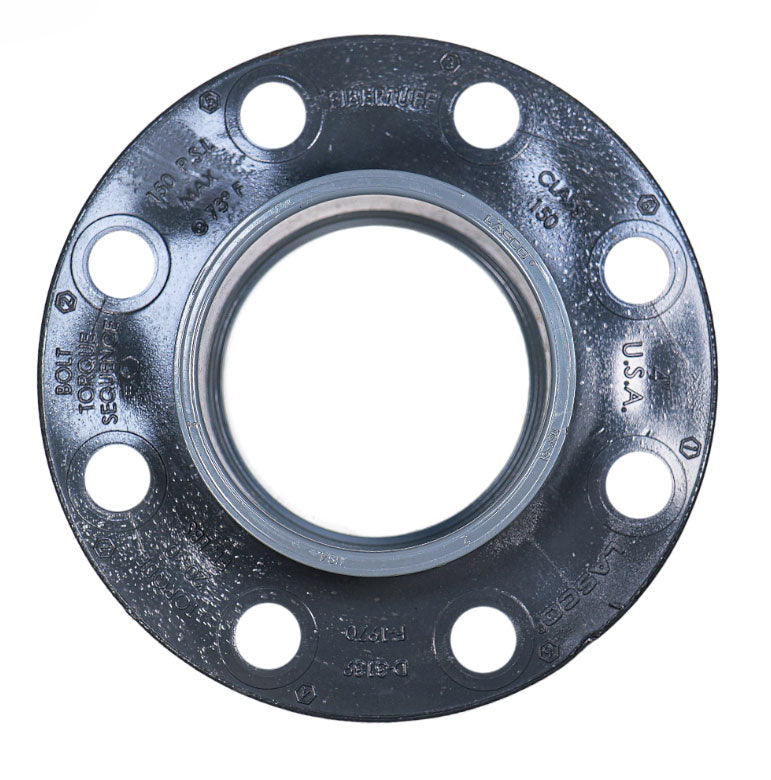

This is a Schedule 80 Van Stone Flange with a 5 inch slip connection. The Schedule 80 Van Stone flanges are constructed of Rigid Poly (Vinyl Chloride) (PVC) Compounds and Chlorinated Poly Vinyl Chloride (CPVC) Compounds. Schedule 80 fittings are manufactured to ASTM D 2467 standards. This PVC flange complies with the perimeters specified in ANSI B16.5 for bolt patterns. Maximum pressure rating is 150 PSI at 73 degrees F with a maximum operating temperature of 140 degrees F.
A Van Stone flange is a two-piece flange with a rotating, loose ring that makes bolt alignment simple. It makes disassembly easier than a one-piece flange. The fasteners can be tightened or loosened without moving or twisting the attached pipes. They fit Schedule 80 piping and fittings, which have thicker walls than Schedule 40 and are rated for higher-pressure applications.
Gaskets and bolts sold separately.
Product Features
- 8 Holes
- Max Pressure: 150 PSI
- Max Operating Temp: 140 degrees F
- ANSI 150 Class according to ANSI B16.5
- Certified NSF 61 and ANSI 372
Technical Specifications
| Product Category | Flanges and Gaskets |
| Poolweb Item # | 854-050 |
| Cross Reference # | 854-050FT |
| Brand | Poolweb.com |
| Shipping Weight | 2.94 lb |
