Poolweb #853-020

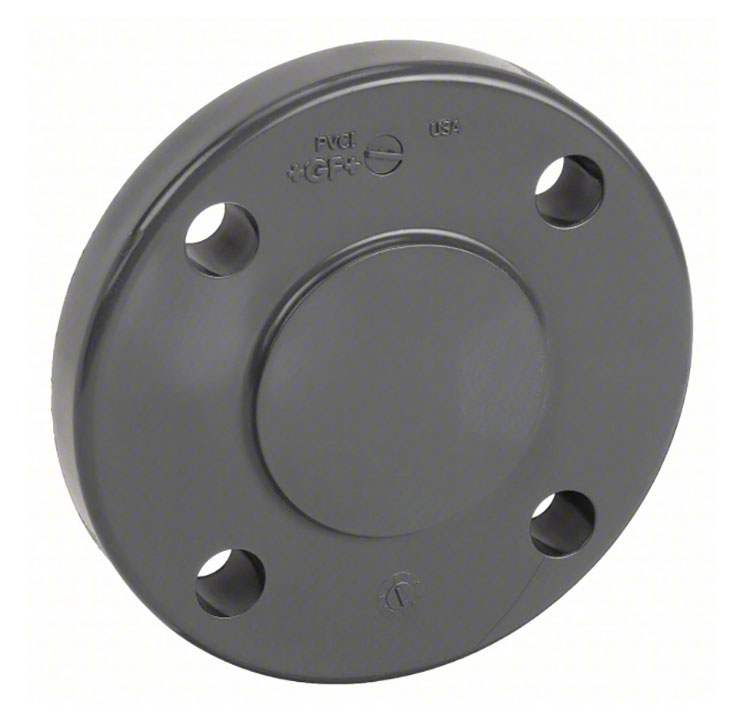

Schedule 80 Blind Flange - 2 Inch
Allow 10-14 Days to Ship
Shipping Options
- Standard Shipping, $7.99 Get it by
- 2 Day Shipping, Get it by
- 1 Day Shipping, Get it by
Shopper Protection
- This item is backed by a 30 day Return Policy
- This item is protected under the Poolweb Guarantee
Product Information
Additional Resources
- Data Sheet (pdf)
- Installation Instructions (pdf)
Product Description
This is a Schedule 80 Blind Flange for 2 inch pipe. The Schedule 80 flanges are constructed of Rigid Poly (Vinyl Chloride) (PVC) Compounds and Chlorinated Poly Vinyl Chloride (CPVC) Compounds. Schedule 80 fittings are manufactured to ASTM D 2467 standards. This PVC flange complies with the perimeters specified in ANSI B16.5 for bolt patterns. Maximum pressure rating is 150 PSI at 73 degrees F with a maximum operating temperature of 140 degrees F.Blind flanges are used to seal or cap the end of a pipeline, valve, or pressure vessel opening, completely blocking the flow of fluids or gases. Unlike other flanges which feature a center bore to allow flow, a blind flange is solid and has no opening. It has bolt holes around its perimeter that match a standard flange patterns. This allows it to be bolted into place to create a secure, leak-proof seal, typically using a gasket.
Gaskets and bolts sold separately.
Product Features
- 4 Holes
- Max Pressure: 150 PSI
- Max Operating Temp: 140 degrees F
- ANSI 150 Class according to ANSI B16.5
- Certified NSF 61 and ANSI 372
Technical Specifications
| Product Category | Flanges and Gaskets |
| Poolweb Item # | 853-020 |
| Brand | Poolweb.com |
| Shipping Weight | 1.08 lb |
